Thermodynamic analysis of methane dry reforming for H<sub>2</sub>/CO syngas production

QIU Lipei; WANG Sha; YAN Jinbiao; HU Bin; SHEN Jun

doi:10.12299/jsues.24-0038

Volume 39 Issue 1

May 2025

Turn off MathJax

Article Contents

Article Navigation > Journal of Shanghai University of Engineering Science > 2025 > 39(1): 73-78

QIU Lipei, WANG Sha, YAN Jinbiao, HU Bin, SHEN Jun. Thermodynamic analysis of methane dry reforming for H2/CO syngas production[J]. Journal of Shanghai University of Engineering Science, 2025, 39(1): 73-78. doi: 10.12299/jsues.24-0038

Citation:

QIU Lipei, WANG Sha, YAN Jinbiao, HU Bin, SHEN Jun. Thermodynamic analysis of methane dry reforming for H₂/CO syngas production[J]. Journal of Shanghai University of Engineering Science, 2025, 39(1): 73-78. doi: 10.12299/jsues.24-0038

Citation:

PDF( 976 KB)

Thermodynamic analysis of methane dry reforming for H₂/CO syngas production

doi: 10.12299/jsues.24-0038

School of Mechanical and Automotive Engineering, Shanghai University of Engineering Science, Shanghai 201620, China

Received Date: 2024-02-22
Publish Date: 2025-05-19

Abstract

Abstract

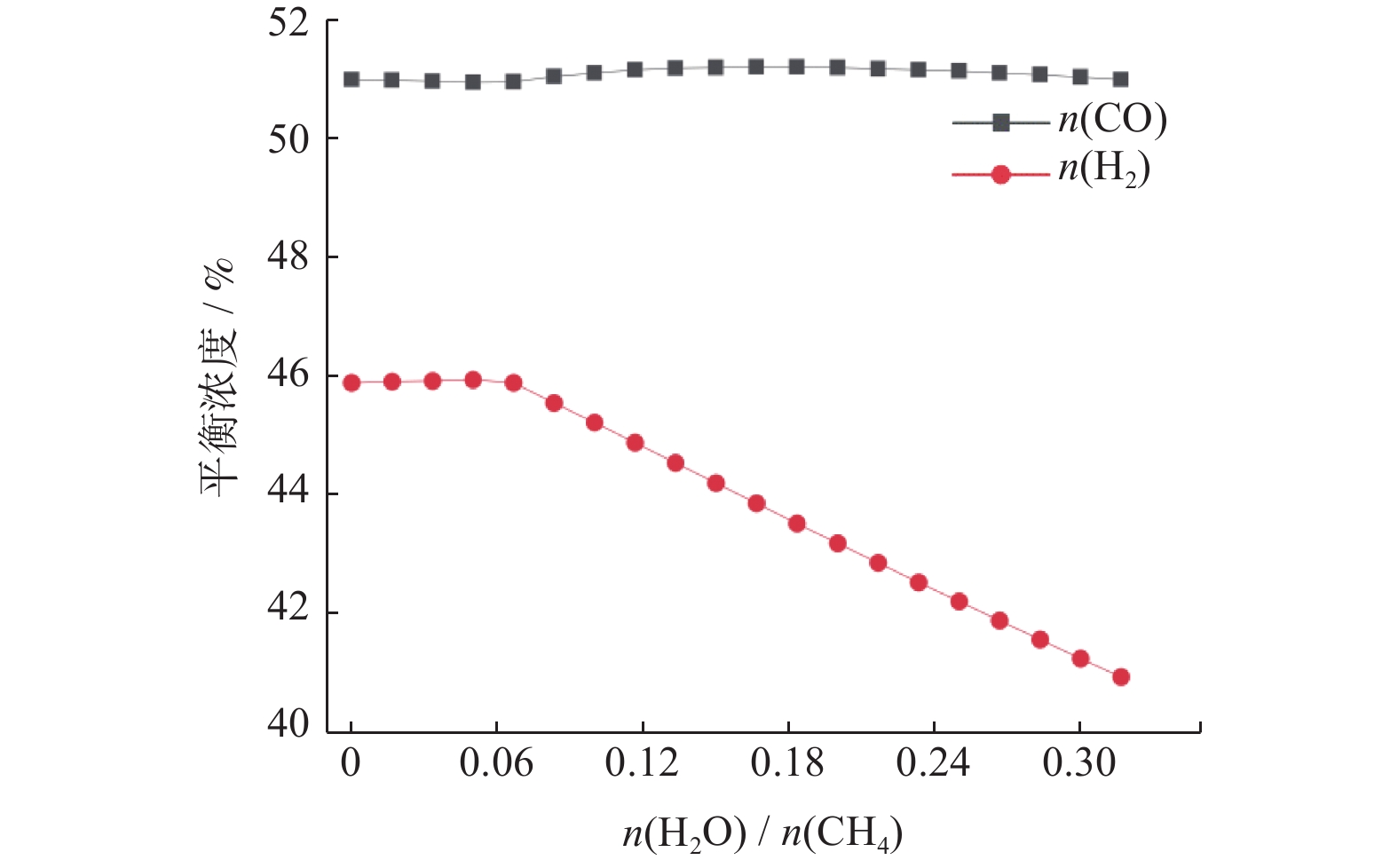

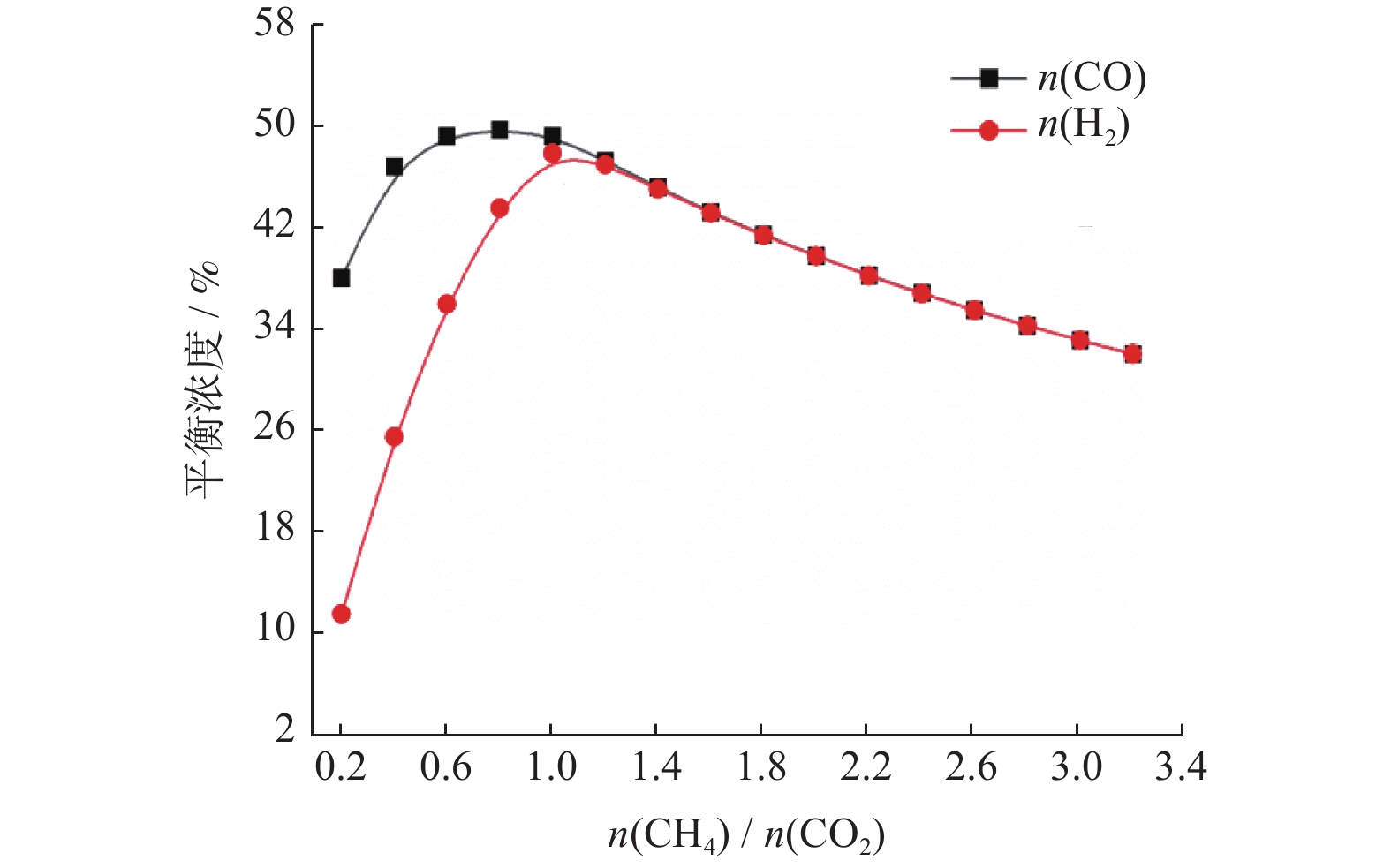

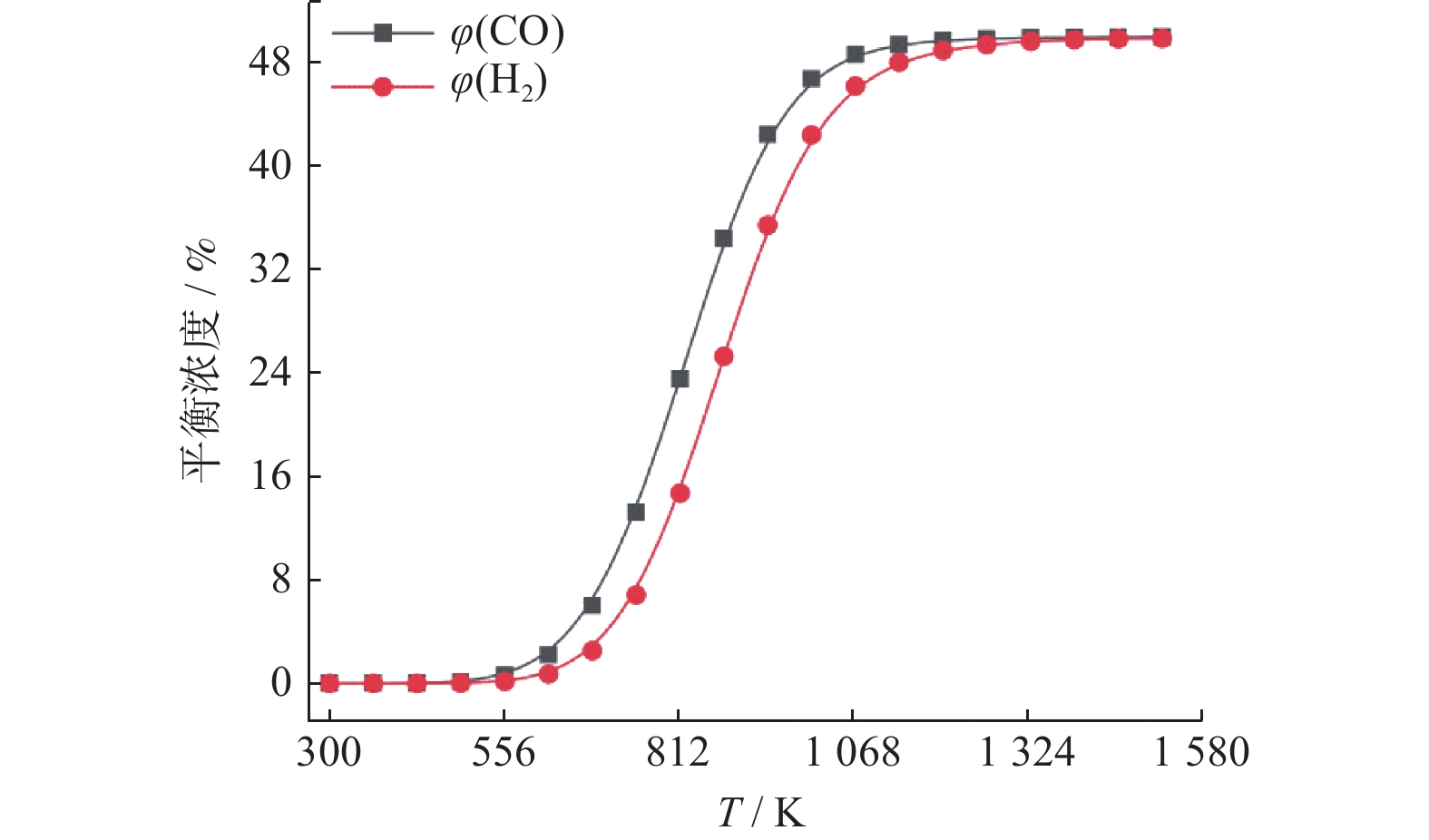

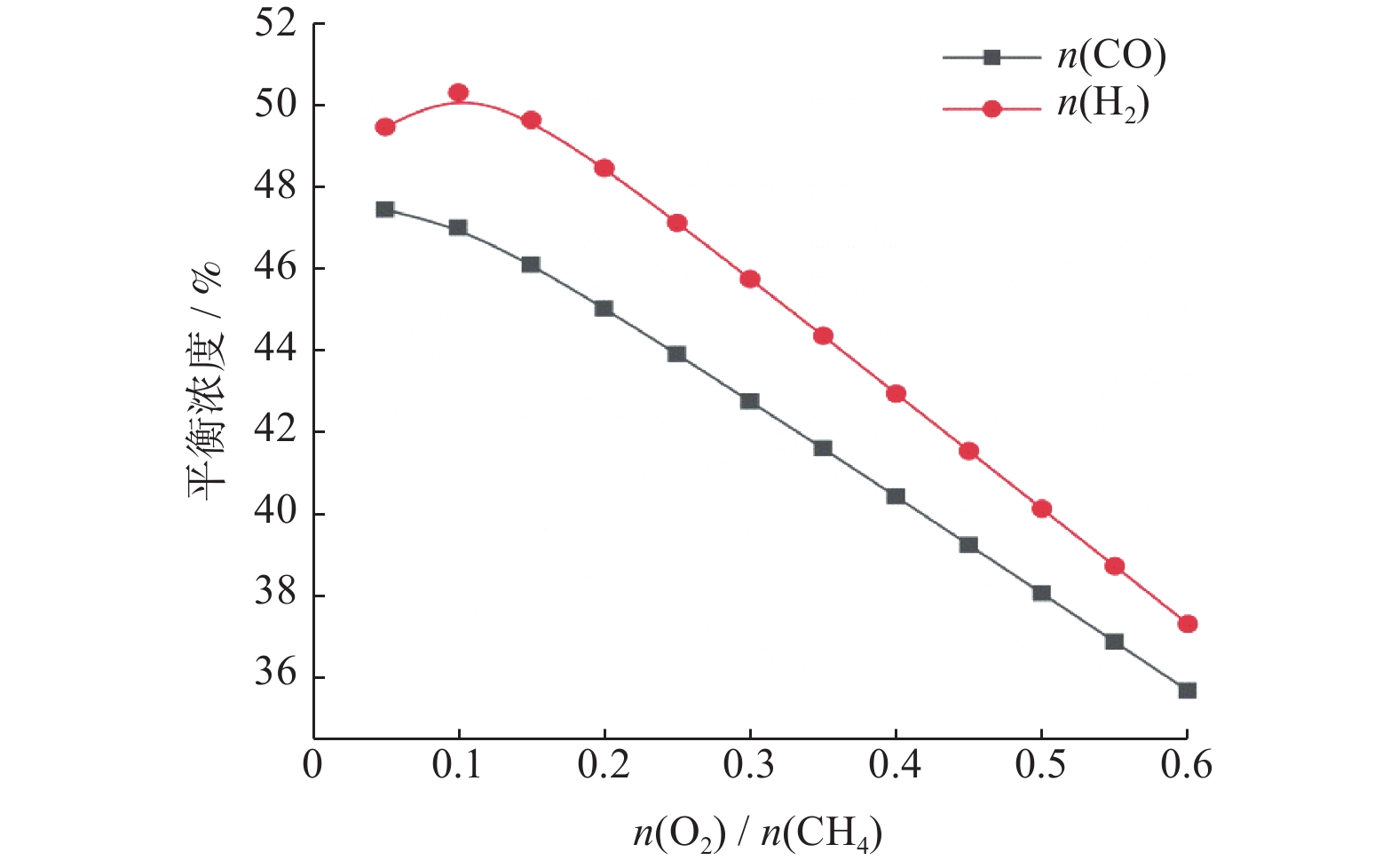

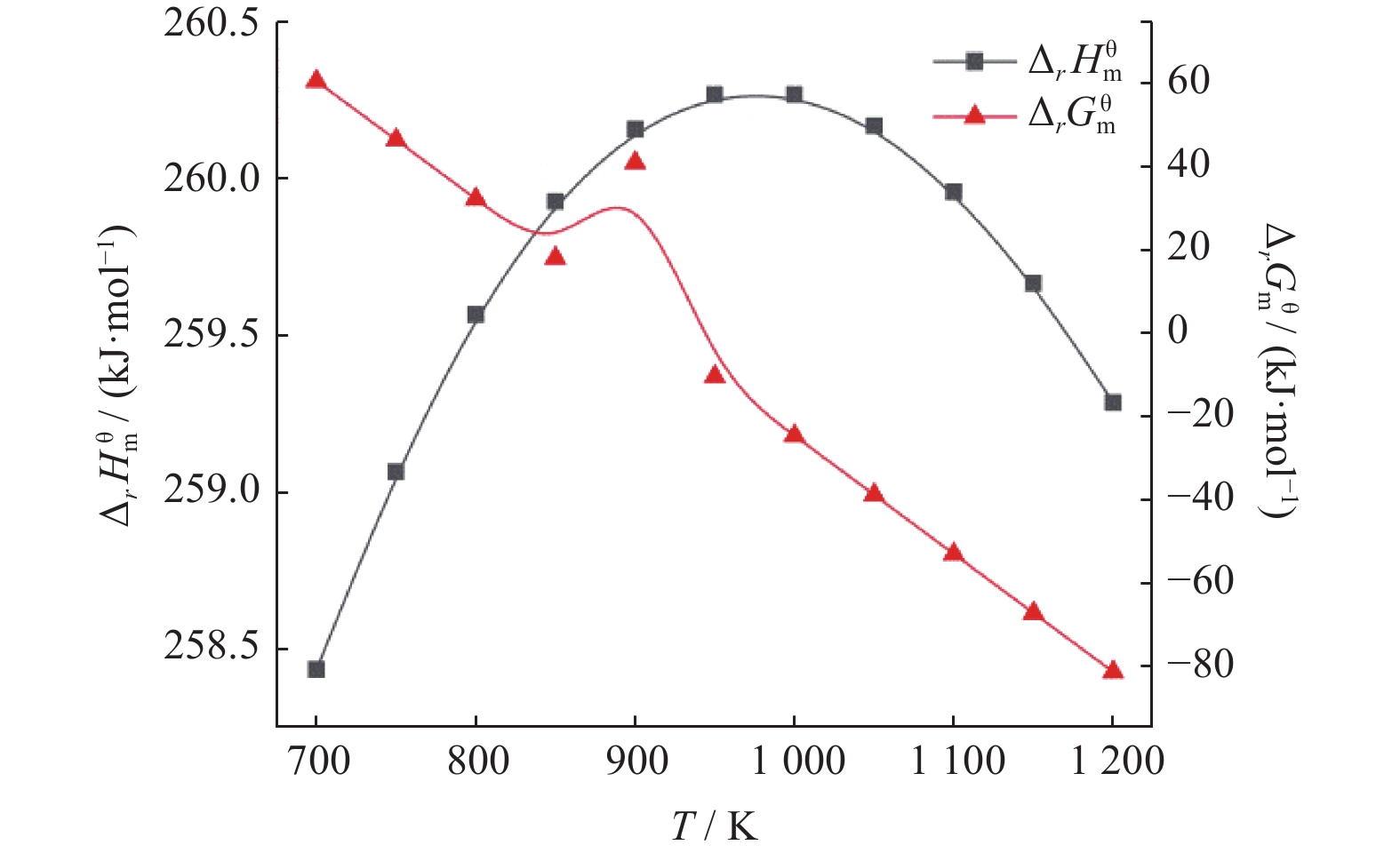

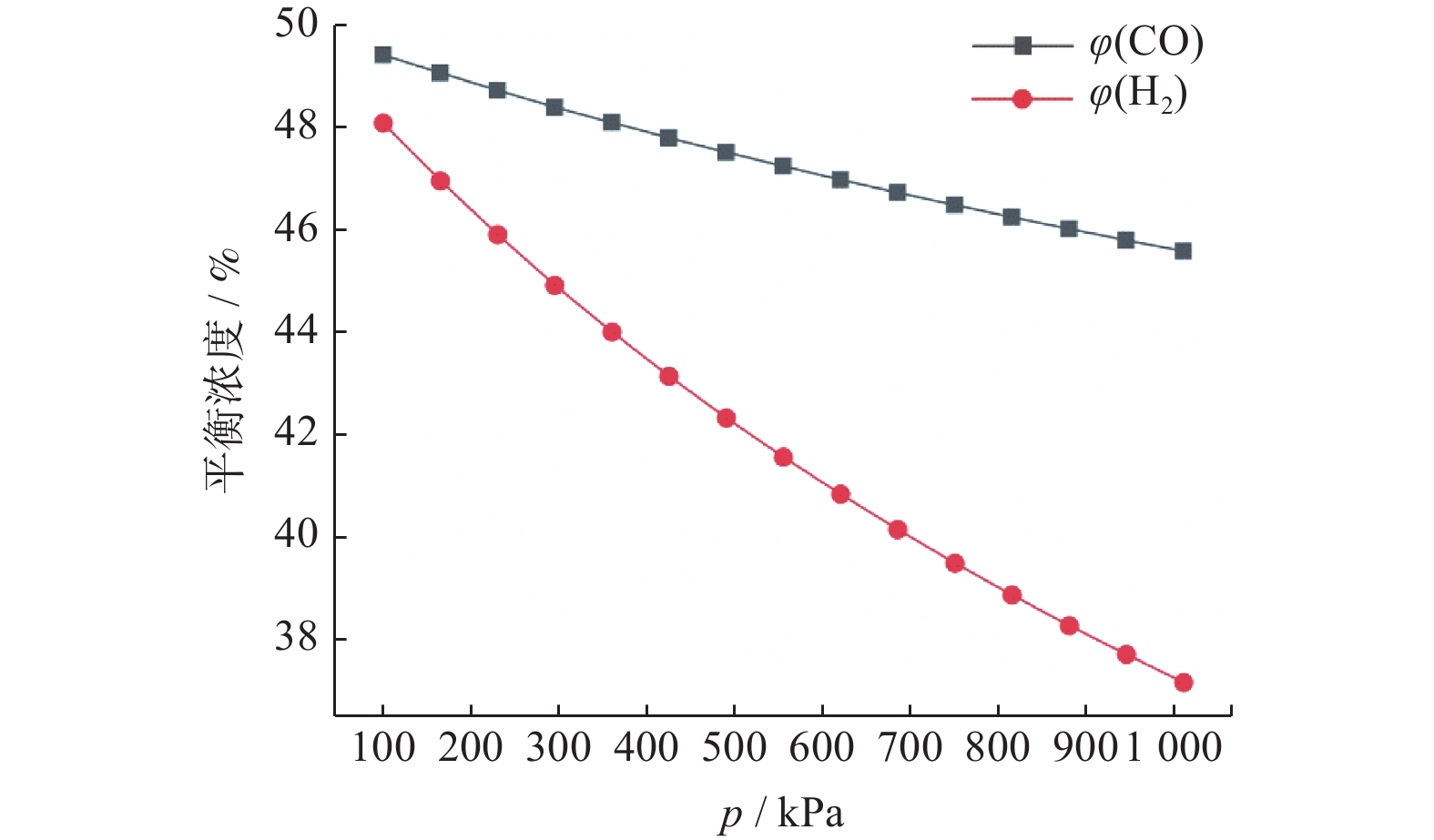

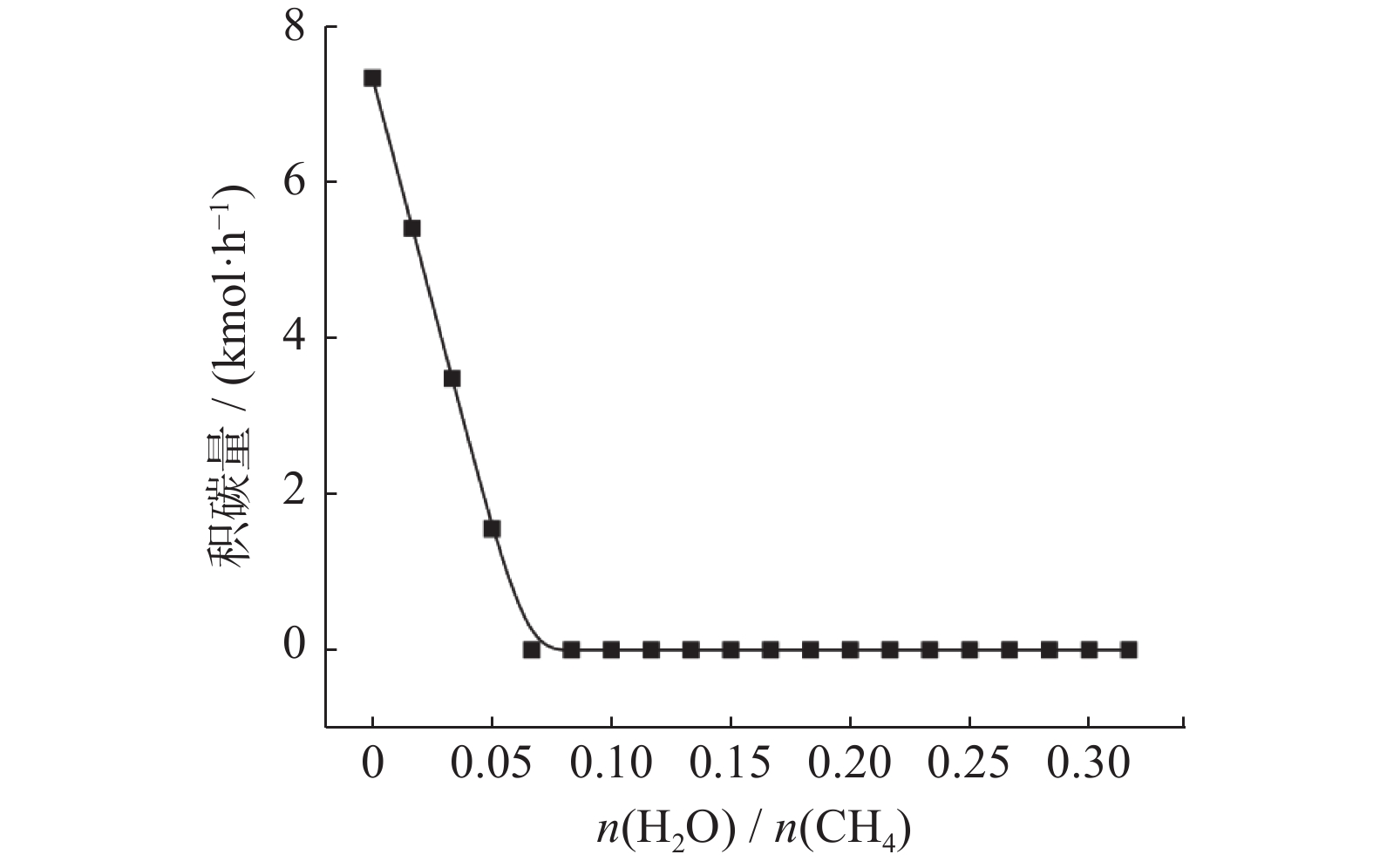

The thermodynamic analysis of the methane dry reforming process was conducted based on Gibbs free energy minimization principle using HSC Chemistry software. The effects of key parameters including reaction temperature, pressure, feed ratio (n(CH₄)/n(CO₂) mole ratio), O₂ and H₂O feed rates on equilibrium concentration of CO and H₂, n(H₂)/n(CO) mole ratio and carbon deposition were systematically investigated. It is shows that under conditions of 1137 K reaction temperature, 101.325 kPa pressure, n(CH₄)/n(CO₂) ratio of 1.20, n(O₂)/n(CH₄) ratio of 0.15, and n(H₂O)/n(CH₄) ratio of 0.07, the n(H₂)/n(CO) ratio is maintained at approximately 0.90, closely approaching the theoretical value of 1. The methane dry reforming enables both greenhouse gas reduction and high-value utilization, with the produced syngas serving as fuel and important chemical feed gas, making it a promising technology for achieving dual carbon goals.
- methane,
- dry reforming,
- H₂/CO syngas.,
- thermodynamics,
- equilibrium

FullText(HTML)

References(16)

References

[1]	刘勇跃. 基于ASPEN模拟计算的甲烷二氧化碳重整反应研究[J] . 化工设计,2018,28(4):16 − 21. doi: 10.3969/j.issn.1007-6247.2018.04.006
[2]	GUO J Z, HOU Z Y, ZHENG X M. Autothermal reforming of CH₄ and C₃H₈ to syngas in a fluidized-bed reactor[J] . Chinses Journal of Catalysis,2010,31(9):1115 − 1121.
[3]	YUSUF M, BEG M, UBAIDULLAH M, et al. Kinetic studies for DRM over high-performance Ni–W/Al₂O₃–MgO catalyst[J] . International Journal of Hydrogen Energy,2022,47(100):42150 − 42159. doi: 10.1016/j.ijhydene.2021.08.021
[4]	刘俊义, 祝贺, 张军. 甲烷二氧化碳自热重整工艺分析[J] . 天然气化工(C1化学与化工),2019,44(3):56 − 60.
[5]	DEMIDOV D V, MISHIN I V, MIKHAILOV M N. Gibbs free energy minimization as a way to optimize the combined steam and carbon dioxide reforming of methane[J] . International Journal of Hydrogen Energy,2011,36(10):5941 − 5950.
[6]	赵倩, 丁干红. 甲烷二氧化碳重整工艺研究及经济性分析[J] . 天然气化工(C1化学与化工),2020,45(4):71 − 75, 81.
[7]	ERDOHELI A, CSSERENYI J, SOLYMOSI F. Activation of CH₄ and its reaction with CO₂ over supported Rh catalysts[J] . Catalysis,1993,141(1):287 − 299.
[8]	吕长剑, 王娟. 二氧化碳甲烷化技术进展与应用分析[J] . 炼油技术与工程,2024,54(4):6 − 10.
[9]	石天宝, 张秋菊, 纪容昕, 等. CH₄和CO₂转化催化剂的研究[J] . 化工生产与技术,2000,7(2):12 − 15. doi: 10.3969/j.issn.1006-6829.2000.02.003
[10]	傅献彩, 沈文霞, 姚天扬, 等. 物理化学(第五版)[M] . 北京: 高等教育出版社, 2009.
[11]	张迪茜. 生物质能源研究进展及应用前景[D] . 北京: 北京理工大学, 2015.
[12]	李建伟, 陈冲, 王丹, 等. 甲烷二氧化碳重整热力学分析[J] . 石油与天然气化工,2015,44(3):60 − 64. doi: 10.3969/j.issn.1007-3426.2015.03.013
[13]	JENSEN C, DUYAR M S. Thermodynamic analysis of dry reforming of methane for valorization of landfill gas and natural gas[J] . Energy Technology,2021,9(7):2100106.
[14]	USMAN M, Wan DAUD W M A, ABBAS H F. Dry reforming of methane: influence of process parameters: a review[J] . Renewable and Sustainable Energy Reviews,2015,45:710 − 744. doi: 10.1016/j.rser.2015.02.026
[15]	井德水, 方志刚, 张树友, 等. 氧气/甲烷比对Mo/Al₂O₃催化剂上甲烷二氧化碳重整反应的影响[J] . 天然气化工(C1化学与化工),2016,41(6):54 − 58.
[16]	郭禹. 甲烷二氧化碳重整制合成气镍基催化剂的设计制备[D] . 北京: 北京化工大学, 2022.
