Experimental study on shear strength of geopolymer stabilized soft soil

XU Chubo; HU Guo

doi:10.12299/jsues.24-0043

Volume 39 Issue 2

Jun. 2025

Turn off MathJax

Article Contents

Article Navigation > Journal of Shanghai University of Engineering Science > 2025 > 39(2): 166-173

XU Chubo, HU Guo. Experimental study on shear strength of geopolymer stabilized soft soil[J]. Journal of Shanghai University of Engineering Science, 2025, 39(2): 166-173. doi: 10.12299/jsues.24-0043

Citation:

XU Chubo, HU Guo. Experimental study on shear strength of geopolymer stabilized soft soil[J]. Journal of Shanghai University of Engineering Science, 2025, 39(2): 166-173. doi: 10.12299/jsues.24-0043

XU Chubo, HU Guo. Experimental study on shear strength of geopolymer stabilized soft soil[J]. Journal of Shanghai University of Engineering Science, 2025, 39(2): 166-173. doi: 10.12299/jsues.24-0043

Citation:

PDF( 3027 KB)

Experimental study on shear strength of geopolymer stabilized soft soil

doi: 10.12299/jsues.24-0043

XU Chubo,
HU Guo^,

School of Urban Railway Transportation, Shanghai University of Engineering Science, Shanghai 201620, China

Received Date: 2024-03-01
Available Online: 2025-09-30
Publish Date: 2025-06-30

Abstract

Abstract

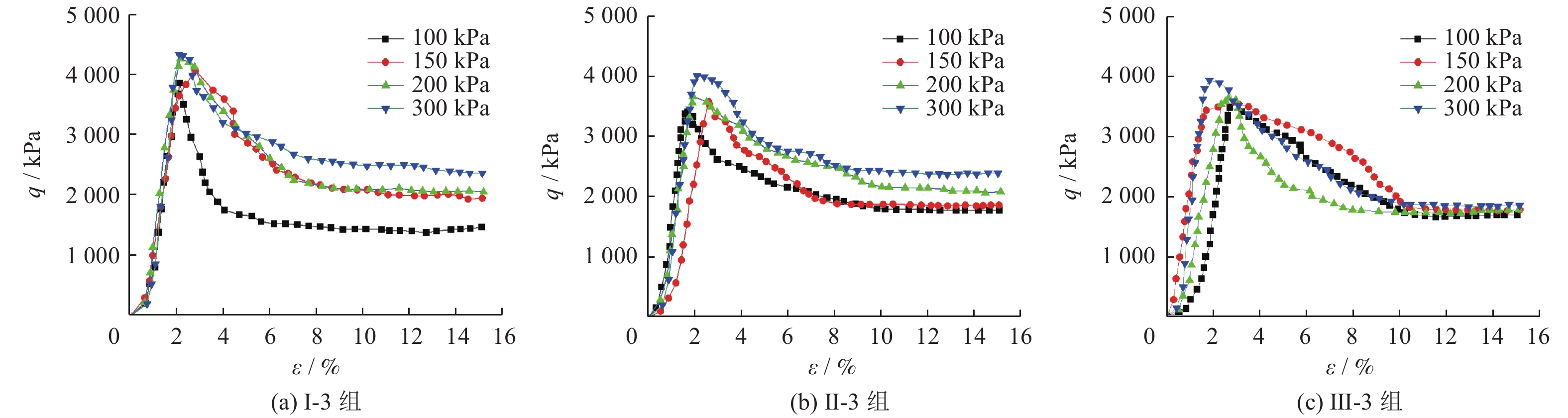

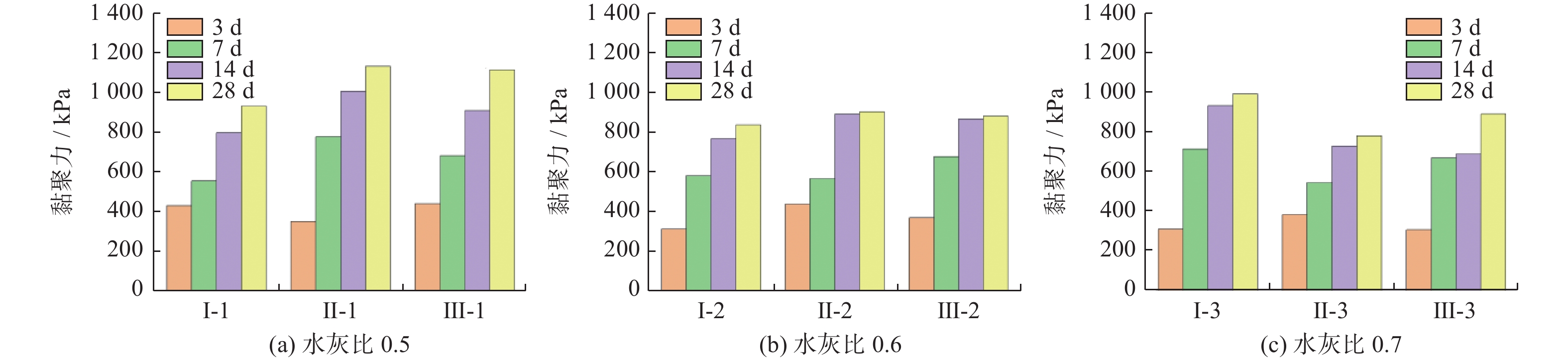

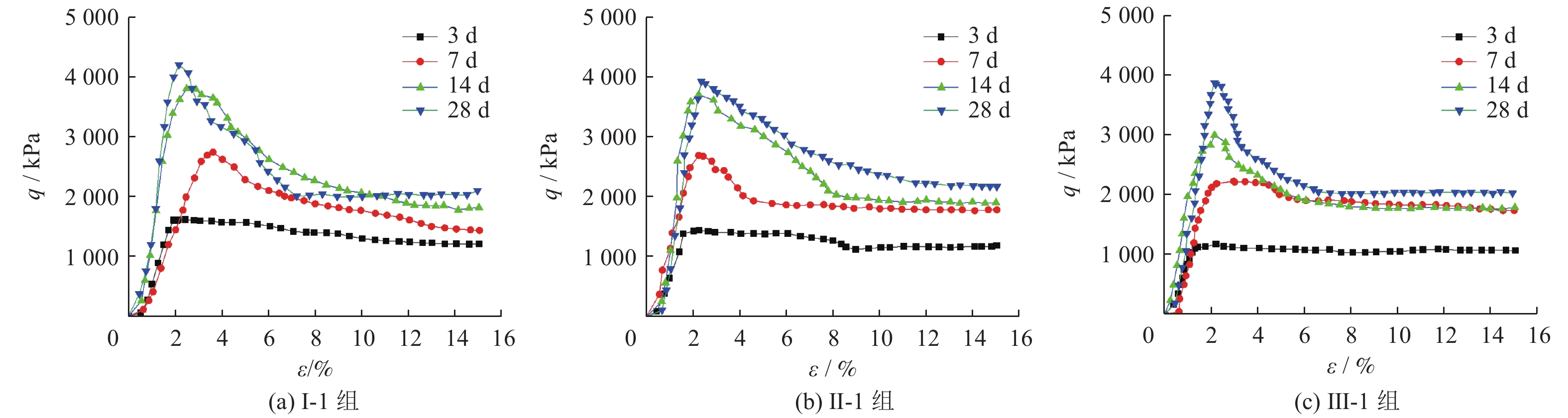

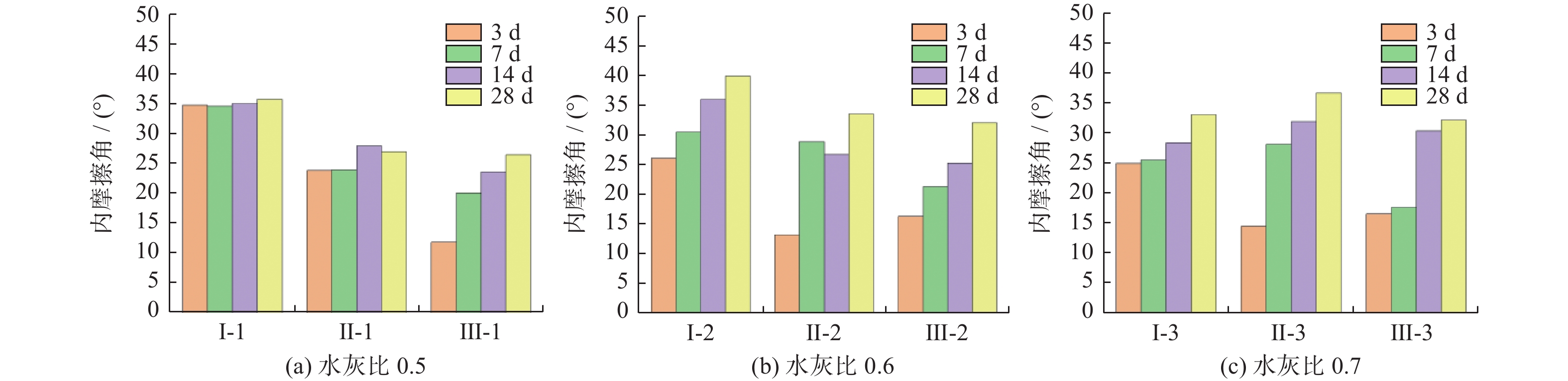

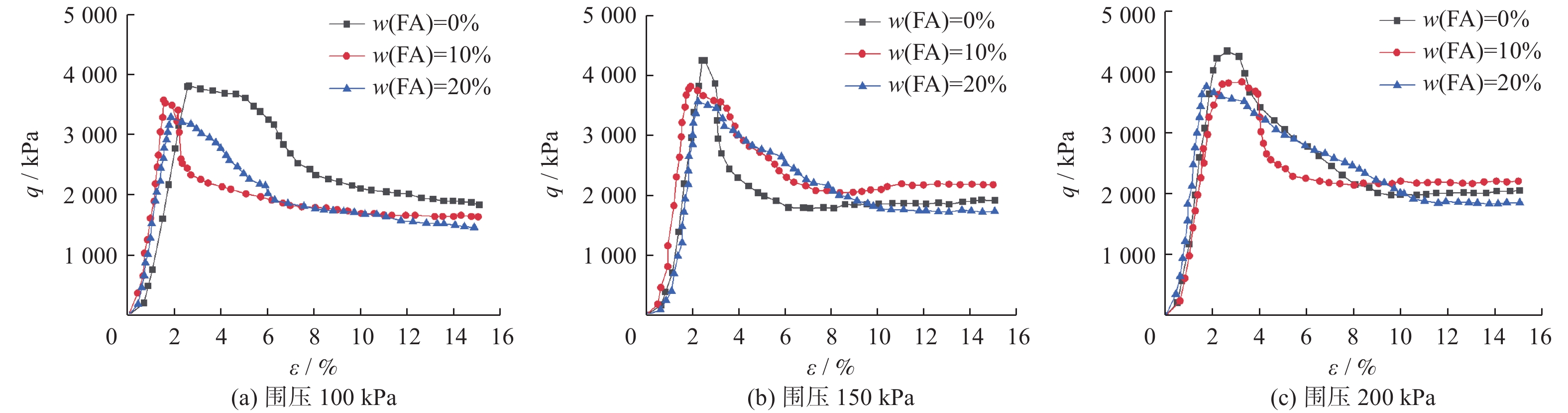

Using solid sodium hydroxide as the alkaline exciter and slag and fly ash as the precursors, the fly ash-slag based geopolymer was prepared by "one-step" method. Through the unconsolidated and undrained (UU) triaxial shear test, the mechanical properties of soft soil stabilized with fly ash-slag based geopolymer were tested, and the influence mechanism of such as fly ash content, water to biner ratio, and curing time on the shear strength of the stabilized soft soil were investigated. The cohesion and internal friction angle of the stabilized soft soil were calculated, and the mechanisms of geopolymer stabilizing soft soil were also analyzed through microscopic tests. The results show that the increase of fly ash doping leads to the decrease of shear strength and internal friction angle of geopolymer stabilized soft soil; the increase of water to binder ratio reduces the shear strength of stabilized soft soil; the increase of cofining pressure makes the strain softening gradually weakened, and the strength gradually improved; the increase of curing time increases the shear strength, and the cohesion and the internal friction angle show a rising trend at the same time.
- geopolymer,
- stabilized soft soil,
- fly ash content,
- confining pressure,
- shear strength

FullText(HTML)

References(19)

References

[1]	BELL F G. Cement stabilization and clay soils, with examples[J] . Environmental & Engineering Geoscience, 1995, 1(2): 139 − 151.
[2]	张冰雪. 矿渣−粉煤灰/偏高岭土地聚物再生混凝土轴压性能试验研究[D] . 广州: 广东工业大学, 2018.
[3]	BONG S H, NEMATOLLAHI B, NAZARI A, et al. Efficiency of different superplasticizers and retarders on properties of ‘one-part’ fly ash-slag blended geopolymers with different activators[J] . Materials, 2019, 12(20): 3410. doi: 10.3390/ma12203410
[4]	何华. 地聚合物处理软土地基性能与应用研究[D] . 长沙: 长沙理工大学, 2017.
[5]	高铭洁, 户国, 吴俊, 等. 固体硅酸钠激发粉煤灰−矿渣基地质聚合物抗压强度的试验研究[J] . 特种结构, 2023, 40(2): 100 − 105.
[6]	LUUKKONEN T, SARKKINEN M, KEMPPAINEN K, et al. Metakaolin geopolymer characterization and application for ammonium removal from model solutions and landfill leachate[J] . Applied Clay Science, 2016, 119: 266 − 276. doi: 10.1016/j.clay.2015.10.027
[7]	王军, 丁光亚, 潘林有, 等. 静三轴试验中水泥土力学特性及本构模型研究[J] . 岩土力学, 2010, 31(5): 1407 − 1412. doi: 10.3969/j.issn.1000-7598.2010.05.010
[8]	武欣慧, 王海龙, 申向东, 等. 基于静三轴试验的水泥改善粉质黏土工程特征的试验研究[J] . 中国科技论文, 2015, 10(13): 1583 − 1587. doi: 10.3969/j.issn.2095-2783.2015.13.022
[9]	OH S, JEON J, KIM D, et al. Shear strength and erosion resistance characteristics of stabilized green soils[J] . Journal of the Korean Geo-Environmental Society, 2015, 16(12): 45 − 52. doi: 10.14481/jkges.2015.16.12.45
[10]	AZHAR A T S, FAZLINA M I S, NIZAM Z M, et al. Shear strength of stabilized kaolin soil using liquid polymer[J] . IOP Conference Series: Materials Science and Engineering, 2017, 226: 012063. doi: 10.1088/1757-899X/226/1/012063
[11]	侯云芬. 粉煤灰基地质聚合物[M] . 北京: 化学工业出版社, 2014.
[12]	征西遥. 地质聚合物在软土加固中的应用研究[D] . 上海: 上海工程技术大学, 2020.
[13]	王甲春, 许金鼓, 夏丹丹. 固化软土的抗剪强度测试与分析[J] . 低温建筑技术, 2011, 33(1): 8 − 10. doi: 10.3969/j.issn.1001-6864.2011.01.003
[14]	KITAZUME M, GRISOLIA M, LEDER E, et al. Applicability of molding procedures in laboratory mix tests for quality control and assurance of the deep mixing method[J] . Soils and Foundations, 2015, 55(4): 761 − 777. doi: 10.1016/j.sandf.2015.06.009
[15]	ZHENG X Y, WU J. Early strength development of soft clay stabilized by one-part ground granulated blast furnace slag and fly ash-based geopolymer[J] . Frontiers in Materials, 2021, 8: 616430. doi: 10.3389/fmats.2021.616430
[16]	殷维. 淤泥质土室内水泥固化三轴试验研究[J] . 福建建材, 2022(3): 6 − 9, 25.
[17]	杨敬斌, 方媛, 李东旭. 碱胶凝材料水化产物C-A-S-H与N-A-S-H的研究进展[J] . 硅酸盐通报, 2017, 36(10): 3292 − 3297, 3310.
[18]	牛恒, 孙德安, 阮坤林. 掺粉煤灰和二灰上海软土的力学特性[J] . 防灾减灾工程学报, 2020, 40(6): 992 − 1000.
[19]	杨爱武, 周金, 孔令伟. 固化吹填软土力学特性试验[J] . 吉林大学学报(工学版), 2014, 44(3): 661 − 667.
