Design of a differential negative resistor VCO based on GaAs_BJT

DU Xinwei; XIAO Manlin; XIAO Shuai; ZHANG Wenyu

doi:10.12299/jsues.24-0079

Volume 39 Issue 2

Jun. 2025

Turn off MathJax

Article Contents

Article Navigation > Journal of Shanghai University of Engineering Science > 2025 > 39(2): 223-228

DU Xinwei, XIAO Manlin, XIAO Shuai, ZHANG Wenyu. Design of a differential negative resistor VCO based on GaAs_BJT[J]. Journal of Shanghai University of Engineering Science, 2025, 39(2): 223-228. doi: 10.12299/jsues.24-0079

Citation:

DU Xinwei, XIAO Manlin, XIAO Shuai, ZHANG Wenyu. Design of a differential negative resistor VCO based on GaAs_BJT[J]. Journal of Shanghai University of Engineering Science, 2025, 39(2): 223-228. doi: 10.12299/jsues.24-0079

Citation:

PDF( 1166 KB)

Design of a differential negative resistor VCO based on GaAs_BJT

doi: 10.12299/jsues.24-0079

School of Urban Railway Transportation, Shanghai University of Engineering Science, Shanghai 201620, China

Received Date: 2024-03-19
Available Online: 2025-09-30
Publish Date: 2025-06-30

Abstract

Abstract

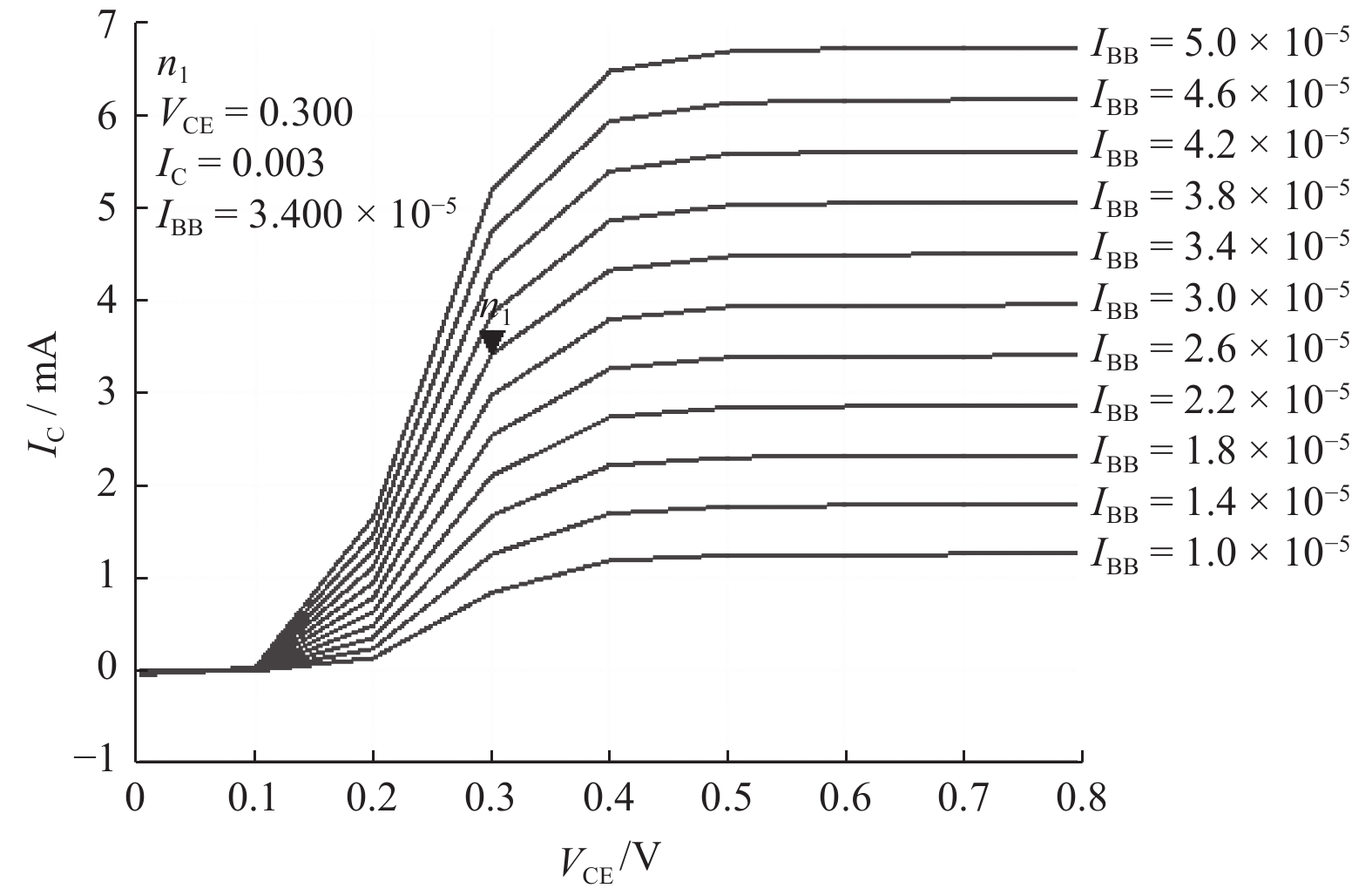

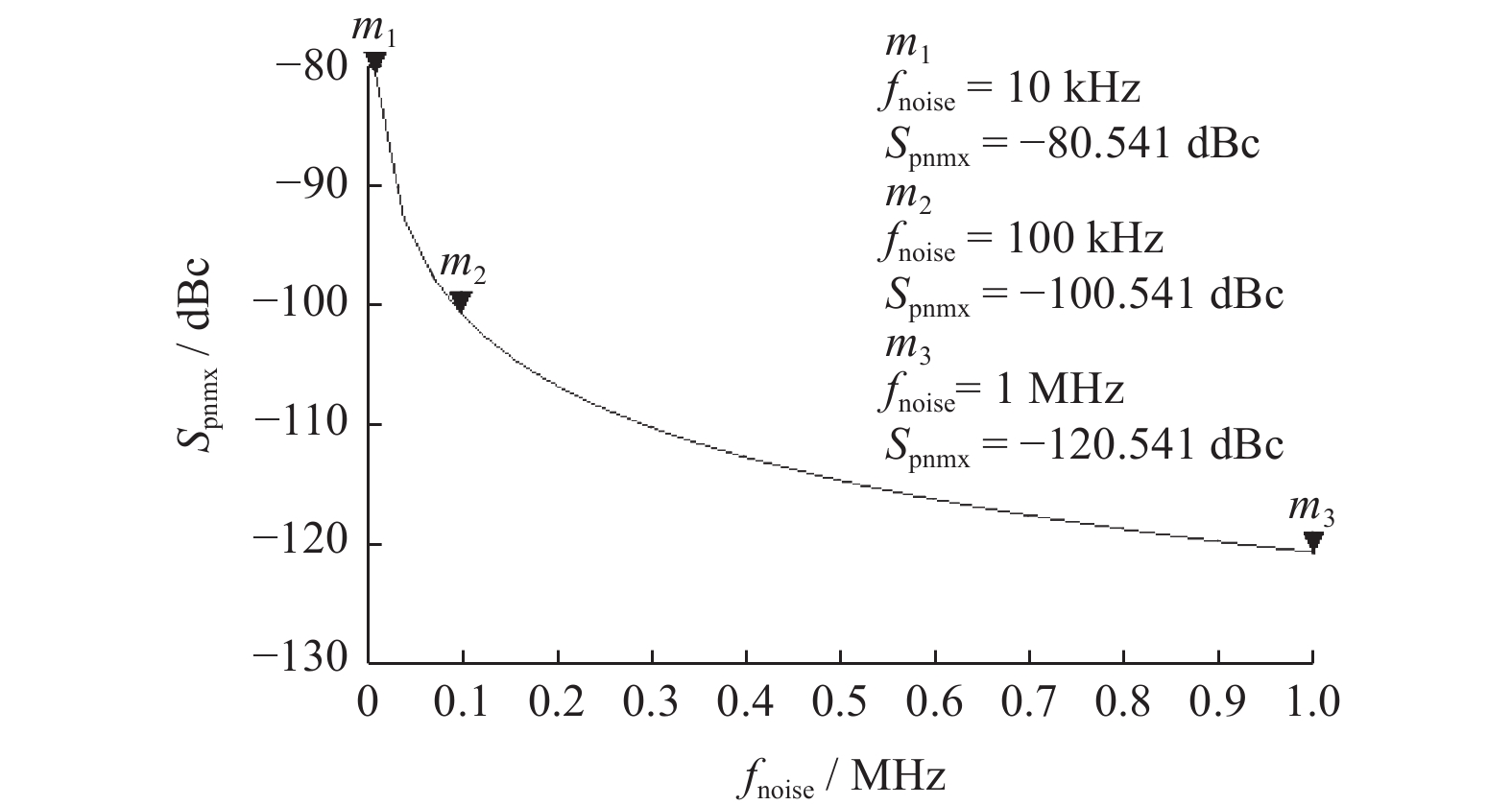

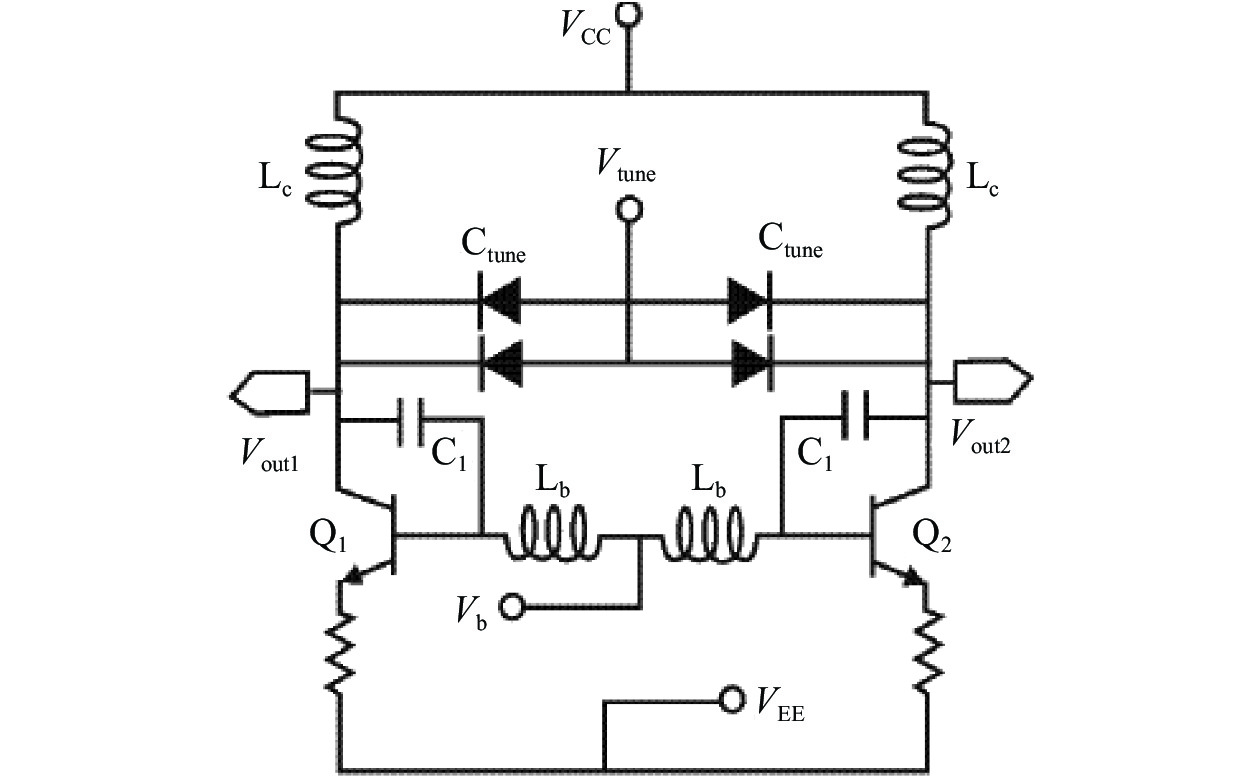

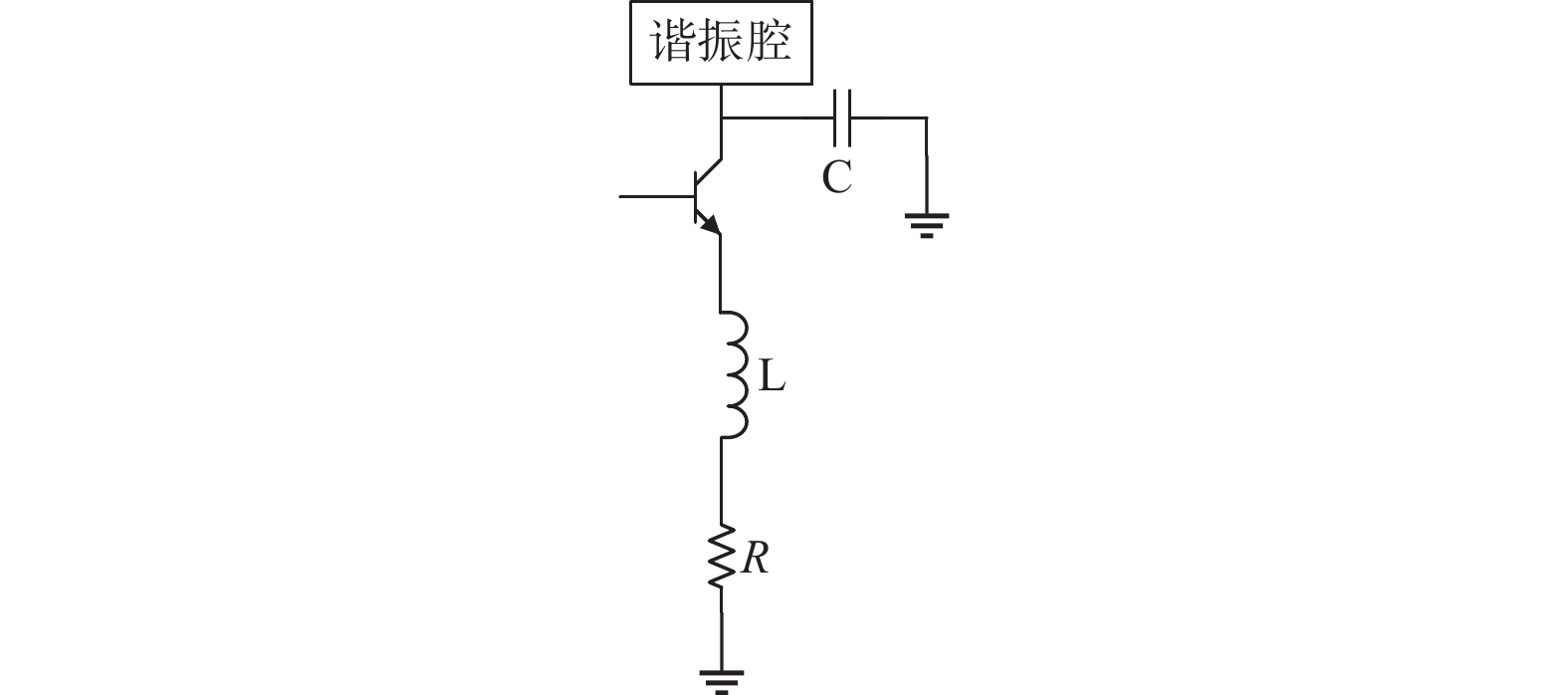

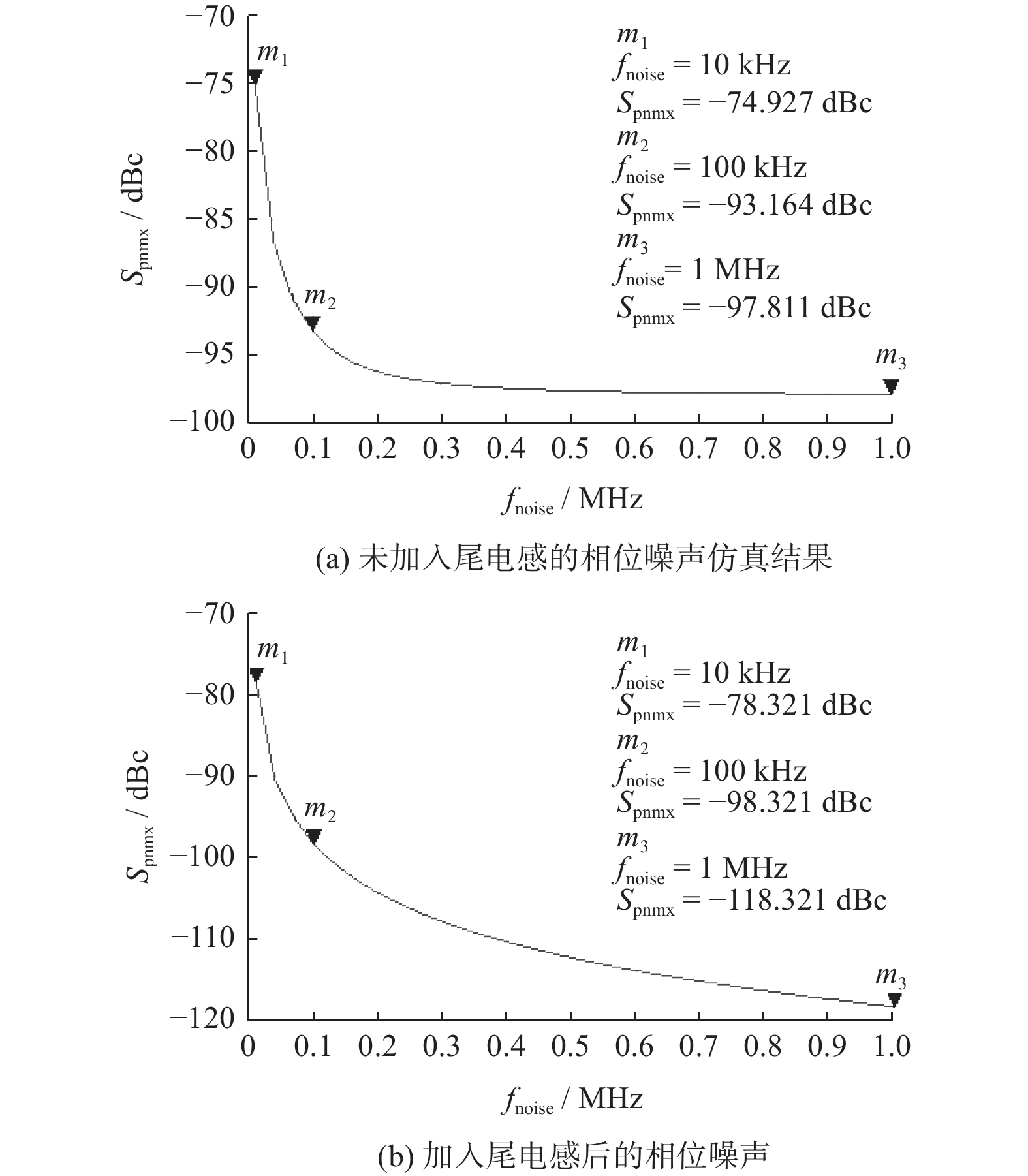

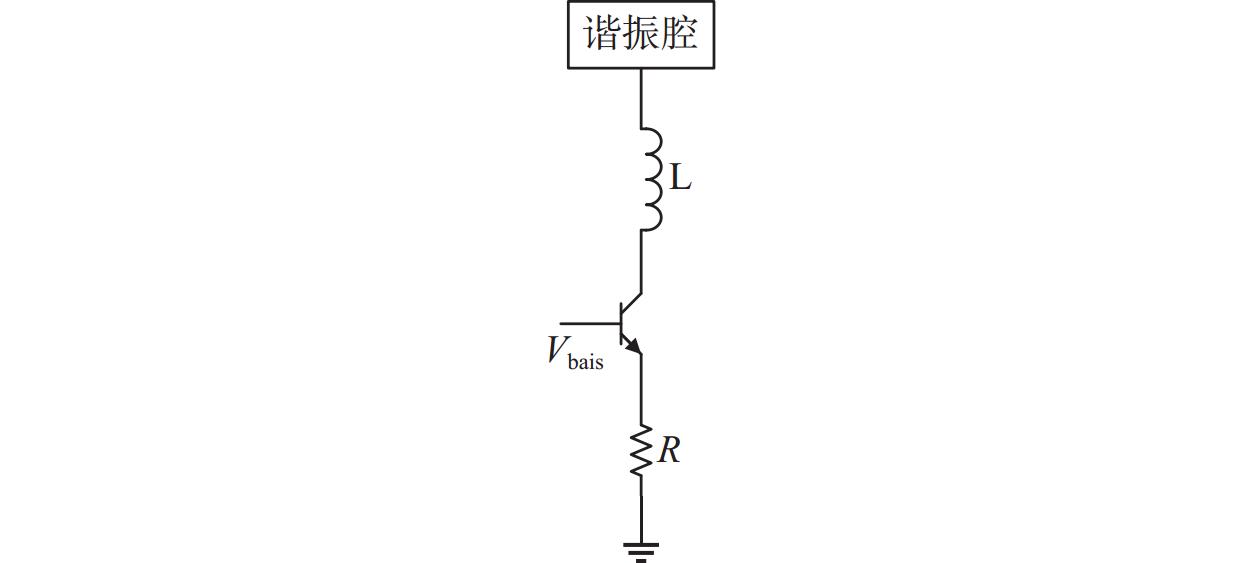

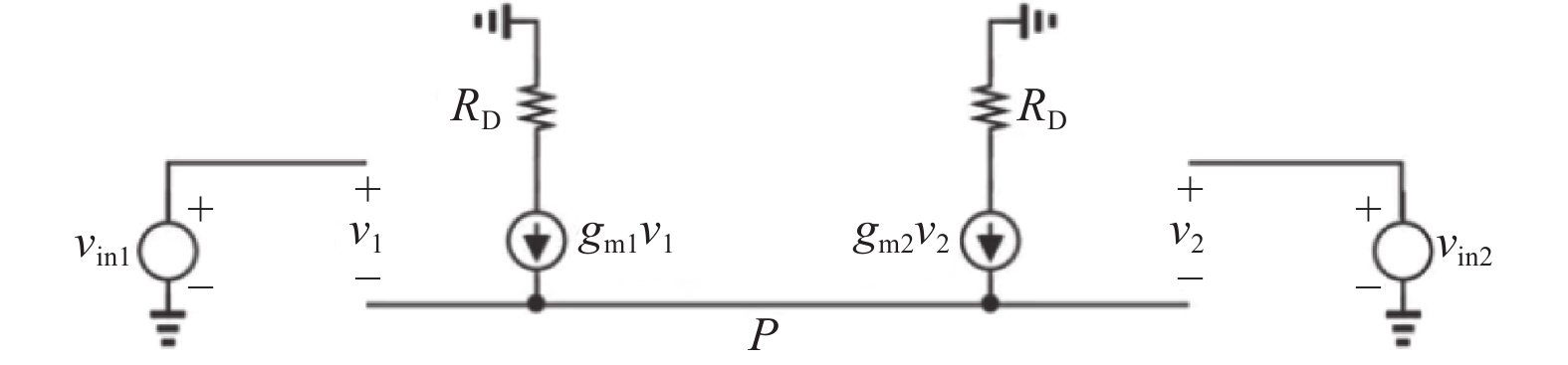

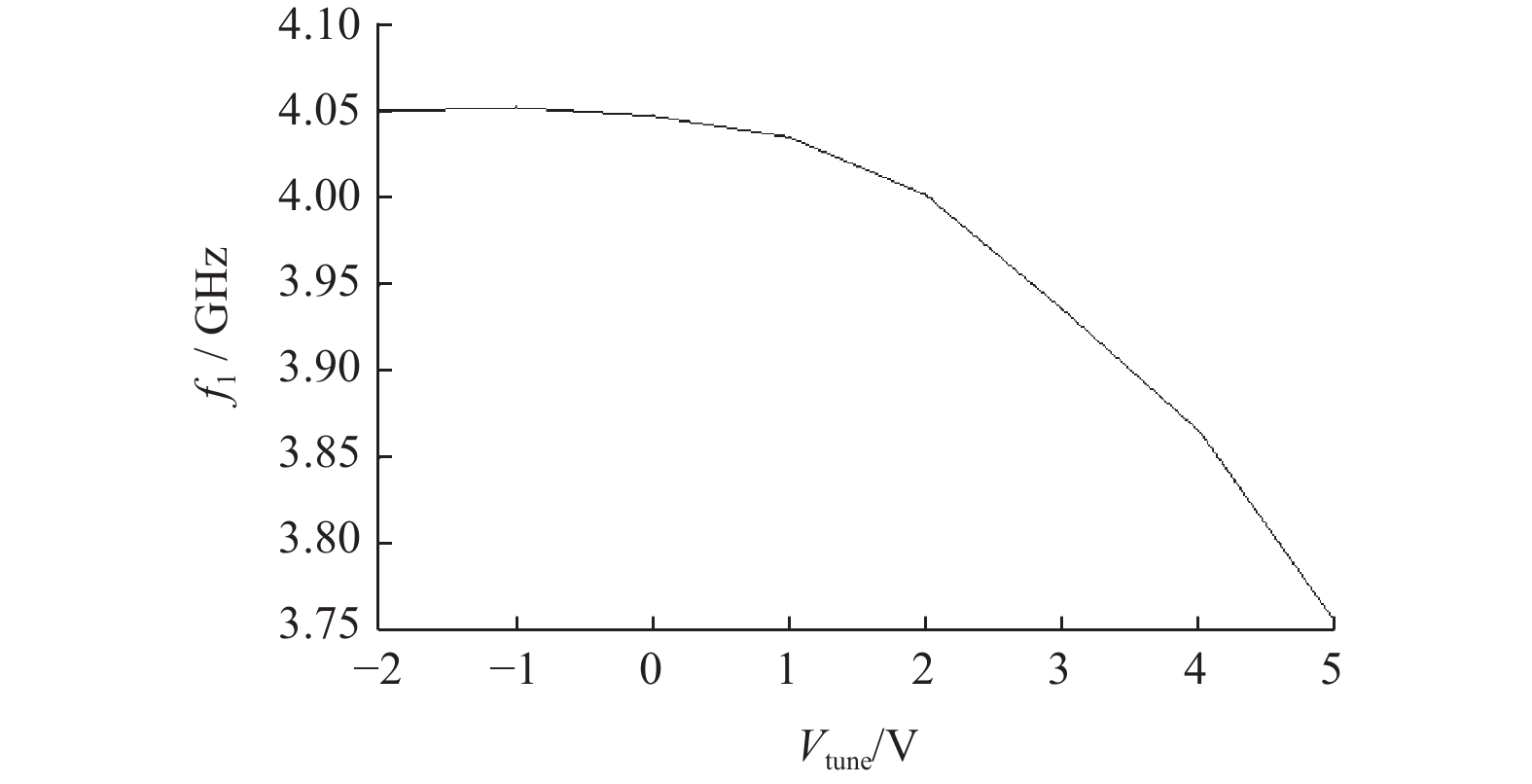

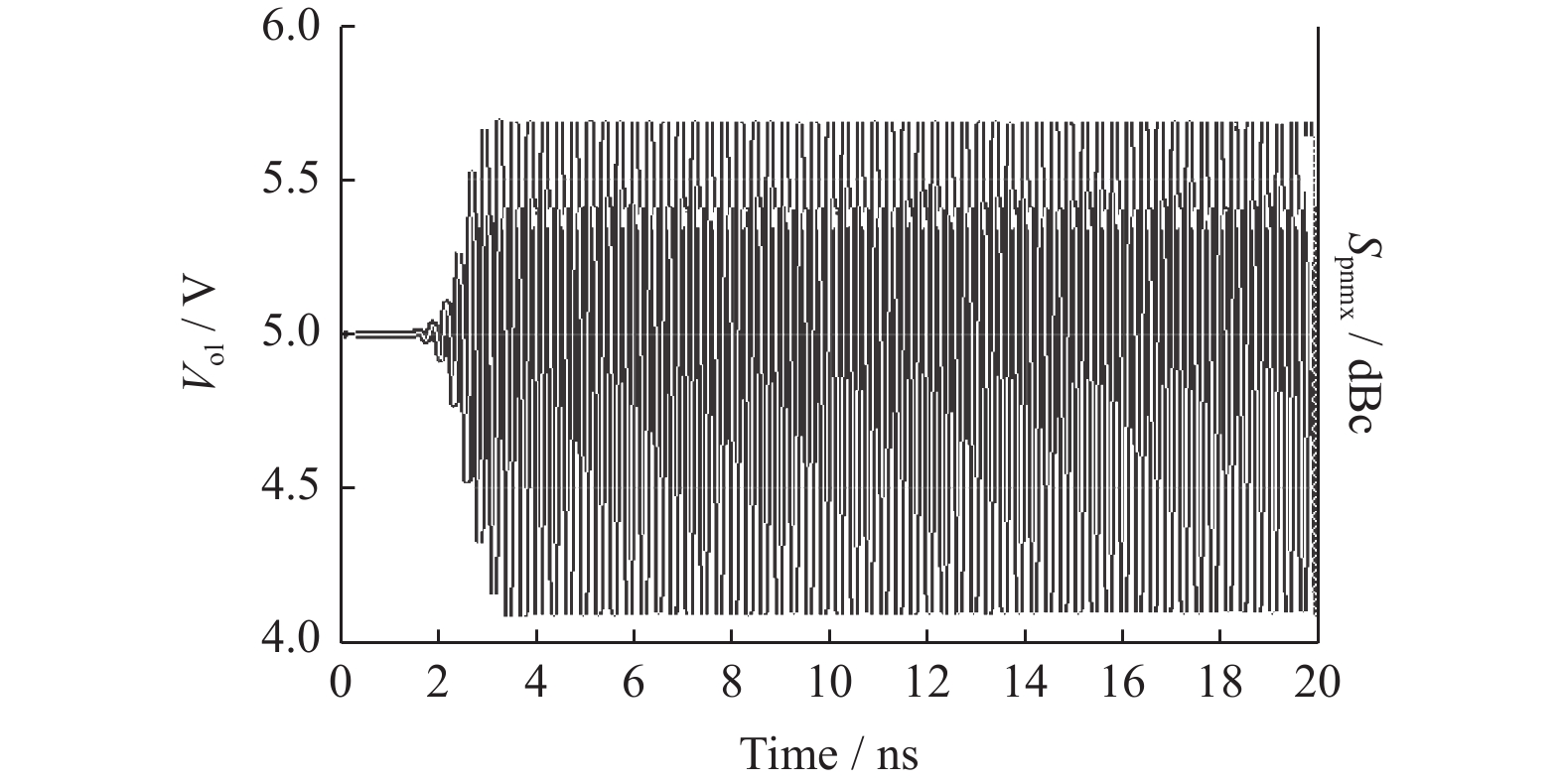

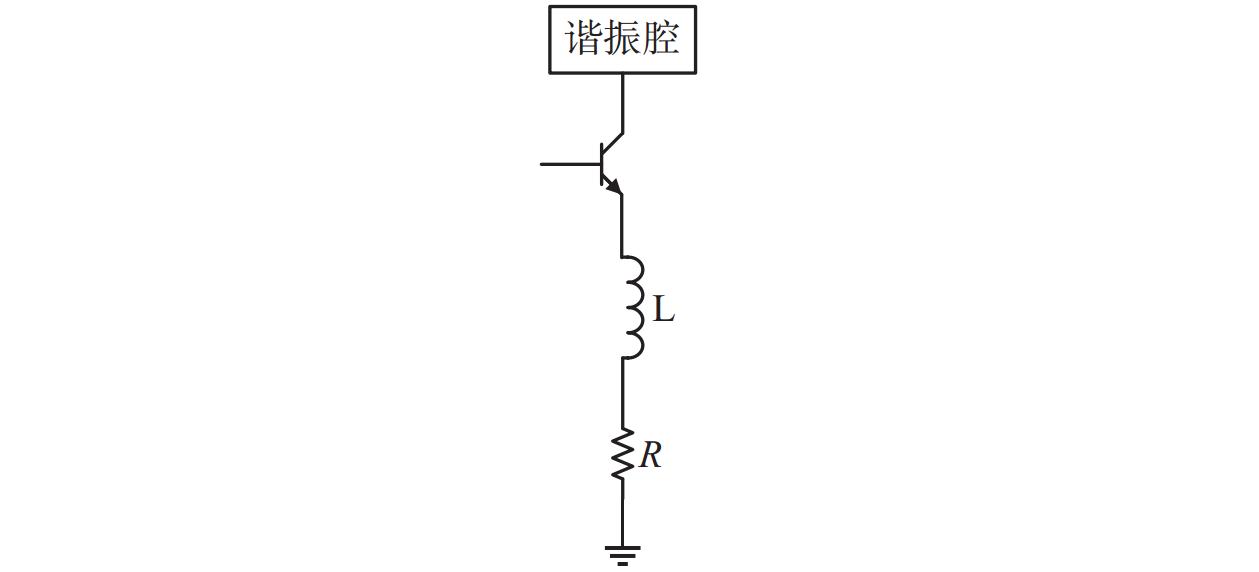

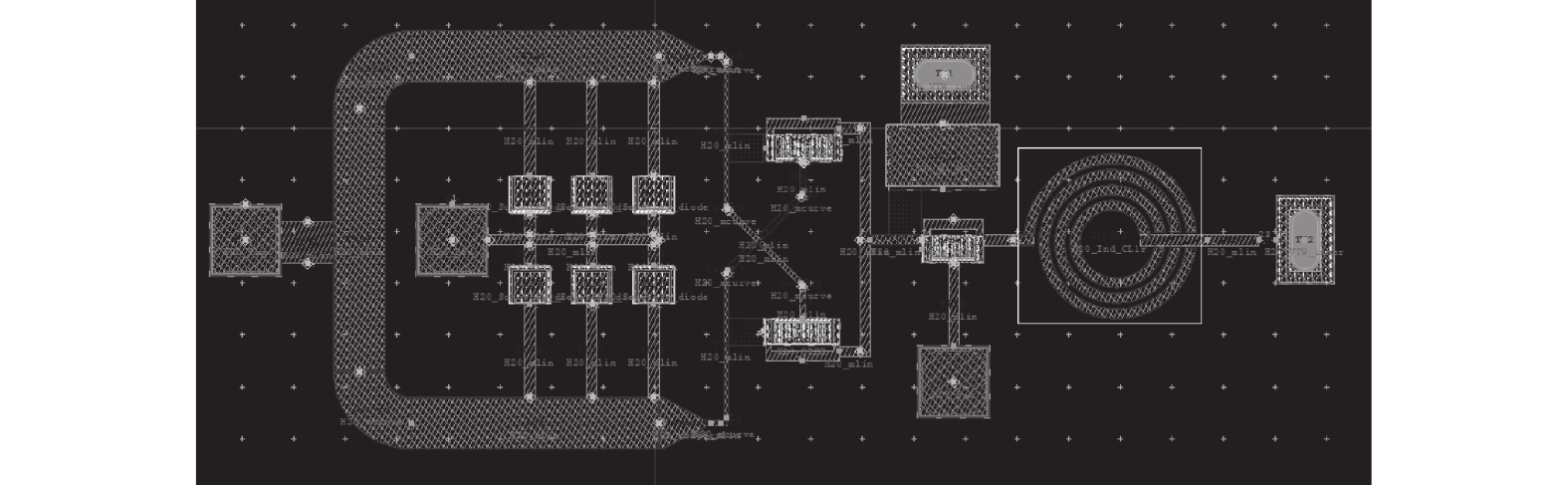

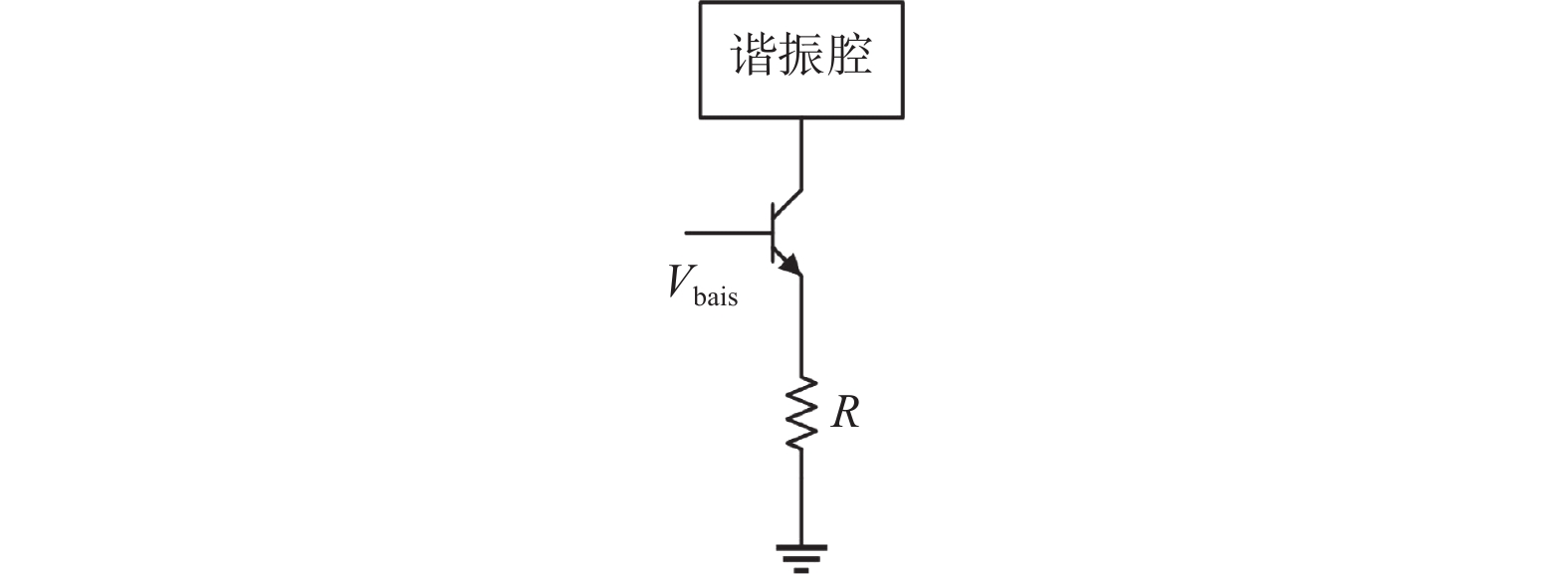

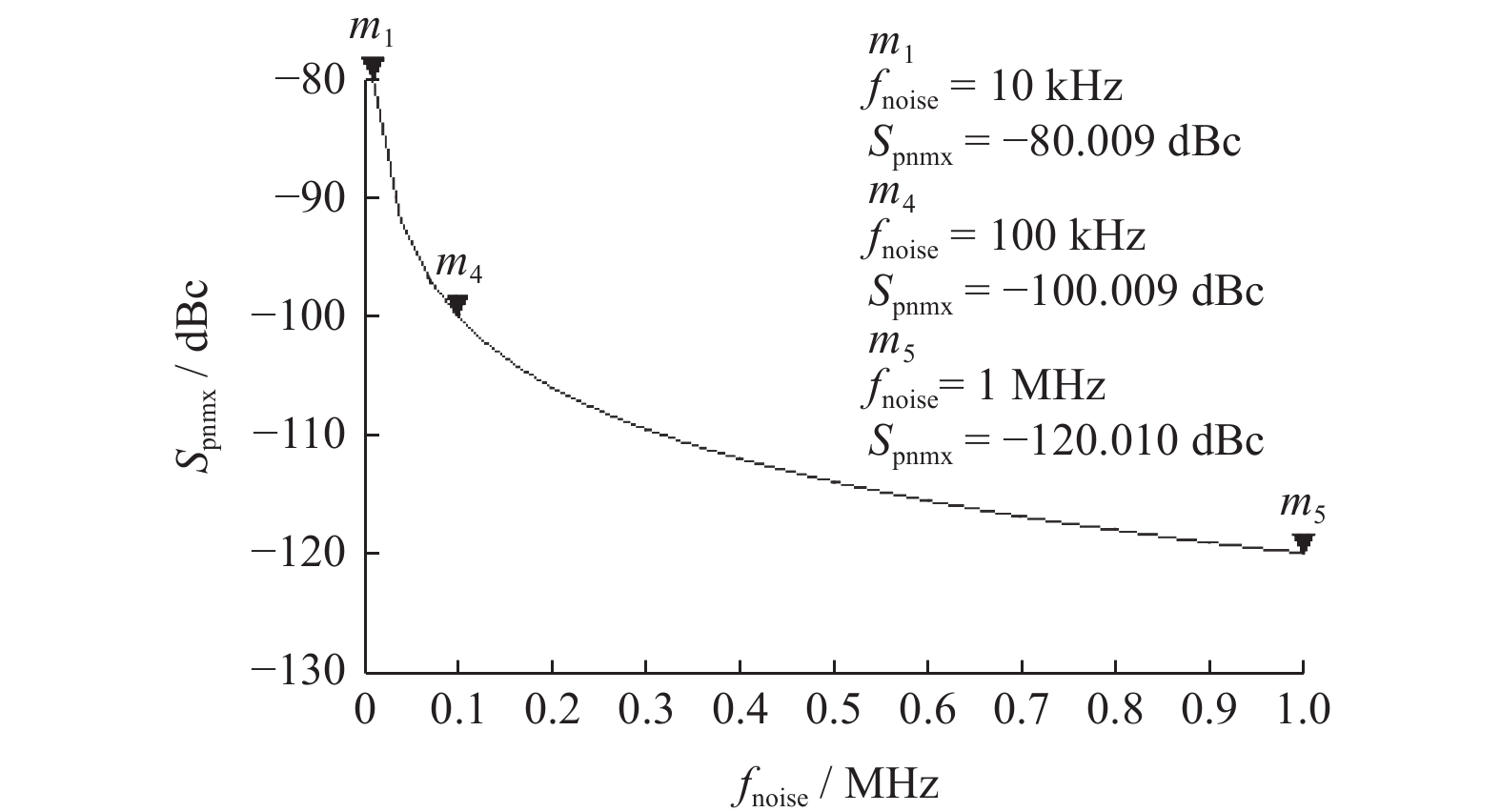

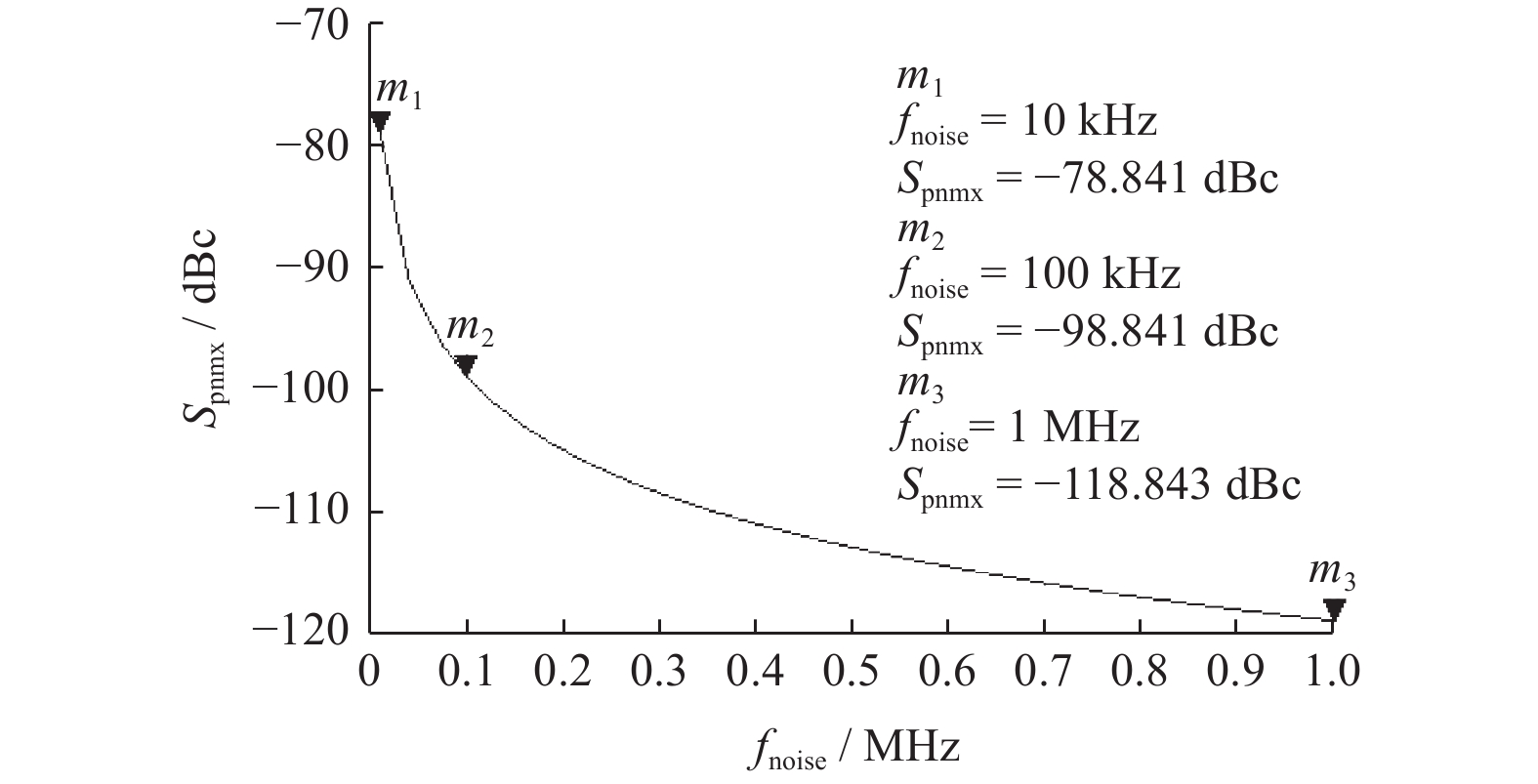

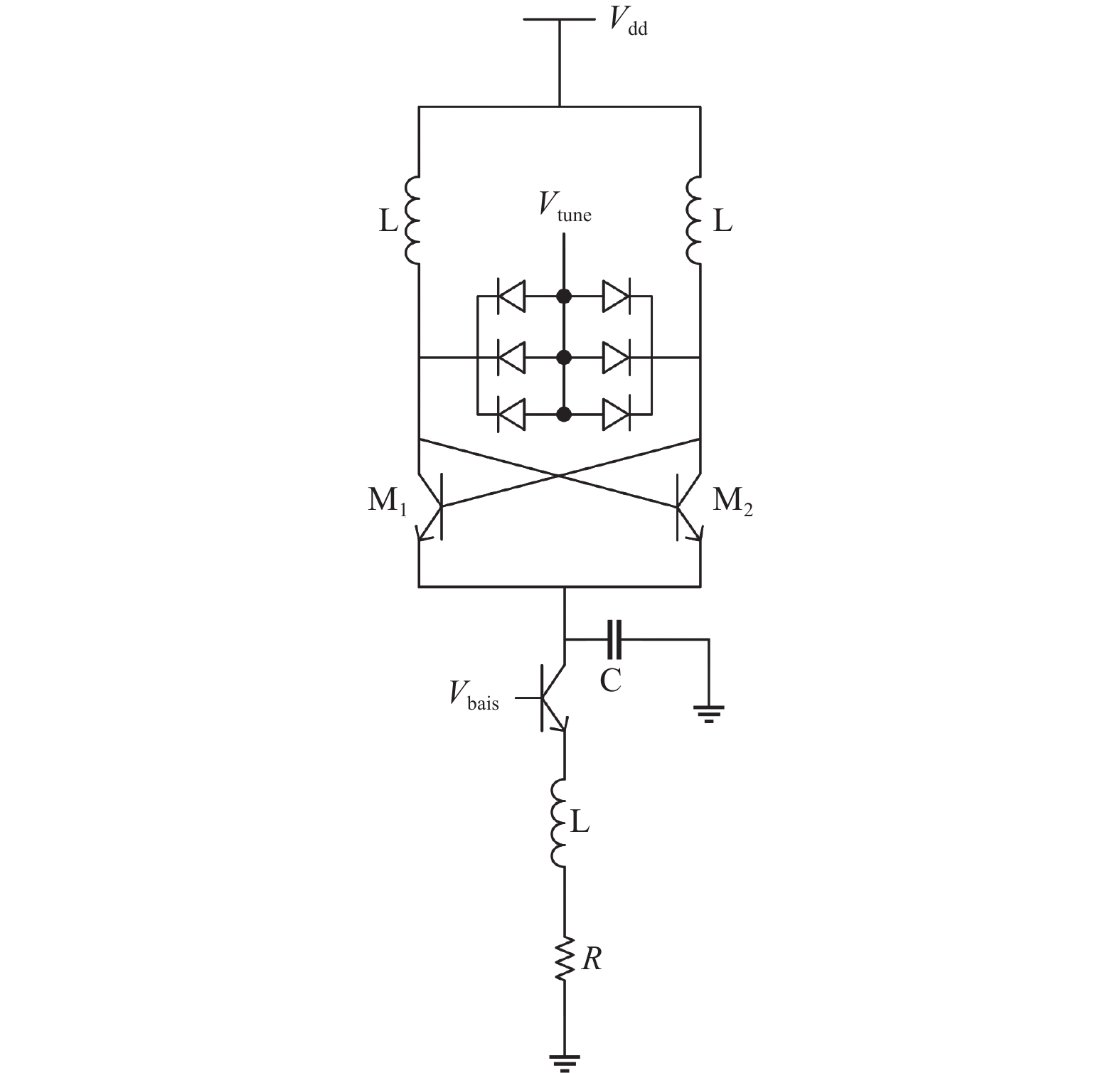

A low noise LC-VCO with a working frequency of 3.8~4.0 GHz was designed using the 0.25 μm GaAs HBT process of San'an Optoelectronics. The design adopted a bipolar junction transistor to form a differential negative resistance structure, and used a source resistance bias circuit to provide the working current. Finally, the tail inductance and large-capacity filtering technology were used to improve the noise factor, and the microstrip line was used instead of inductance in the layout design to achieve a lower noise factor. The post-chip simulation results show that the LC-VCO designed has a frequency range of 3.75~4.05 GHz, an amplitude of 1.6 V, a phase noise of −118.8 dBc at 1 MHz offset, and a voltage control sensitivity of 43 MHz/V.
- bipolar junction transistor (BJT),
- differential negative resistance,
- tail inductance

FullText(HTML)

References(11)

References

[1]	XIA X X, CHEN F J, CHENG X, et al. A GaAs colpitts VCO using g_m-boosting and collector-emitter cross-coupling techniques[J] . IEEE Transactions on Circuits and Systems II: Express Briefs, 2020, 67(12): 2873 − 2877.
[2]	陈志巍, 何勇畅, 毛小庆, 等. 基于GaAs HBT的低相噪压控振荡器设计[J] . 杭州电子科技大学学报(自然科学版), 2021, 41(2): 8 − 13.
[3]	WU X P, LI Y S, HUANG Z Y, et al. A Ka and V band voltage-controlled oscillator for terahertz application in GaAs with start-up relaxation[C] //Proceedings of 2022 IEEE MTT-S International Wireless Symposium (IWS). Harbin: IEEE, 2022: 1−3.
[4]	IYER M, SHANMUGANANTHAM T. GaAs FET based LNA design for WiMAX applications[C] //Proceedings of 2018 International Conference on Current Trends towards Converging Technologies (ICCTCT). Coimbatore: IEEE, 2018: 1−5.
[5]	RAO C V N, GHODGAONKAR D K, SHARMA N. GaAs MMIC low noise amplifier with integrated high-power absorptive receive protection switch[J] . IEEE Microwave and Wireless Components Letters, 2018, 28(12): 1128 − 1130. doi: 10.1109/LMWC.2018.2877148
[6]	YANG L, YANG L A, RONG T T, et al. A five-octave broadband LNA MMIC using bandwidth enhancement and noise reduction technique[J] . IEICE Electronics Express, 2019, 16(7): 20190096. doi: 10.1587/elex.16.20190096
[7]	LI Z, YAN P, CHEN J, et al. A wide-bandwidth W-band LNA in GaAs 0.1 μm pHEMT technology[C] //Proceedings of 2020 IEEE MTT-S International Wireless Symposium (IWS). Shanghai: IEEE, 2020: 1−3.
[8]	CHEN Y M, WANG Y, CHIONG C C, et al. A 21.5-50 GHz low noise amplifier in 0.15-μm GaAs pHEMT process for radio astronomical receiver system[C] //Proceedings of 2021 IEEE Asia-Pacific Microwave Conference (APMC). Brisbane: IEEE, 2021: 7−9.
[9]	KOUKAB A. Reactive power imbalances in LC VCOs and their influence on phase-noise mechanisms[J] . IEEE Transactions on Microwave Theory and Techniques, 2011, 59(12): 3118 − 3128. doi: 10.1109/TMTT.2011.2169496
[10]	ULLAH F, LIU Y, LI Z Q, et al. A bandwidth-enhanced differential LC-Voltage Controlled Oscillator (LC-VCO) and super harmonic coupled quadrature VCO for K-band applications[J] . Electronics, 2018, 7(8): 127. doi: 10.3390/electronics7080127
[11]	CHENG X, CHEN F J, XIA X L, et al. A modified darlington-based class-C VCO with simultaneous optimization of Phase Noise/FoM in GaAs technology[J] . IEEE Microwave and Wireless Components Letters, 2020, 30(5): 500 − 503. doi: 10.1109/LMWC.2020.2983845
