Performance study of catalytic soot combustion using M0.3Co2.7O4 solid solution nanocrystals

ZHANG Nianchen; WANG Chen; HAN Mengyu; SUN Honghua; WANG Jinguo

doi:10.12299/jsues.24-0128

Volume 39 Issue 4

Dec. 2025

Turn off MathJax

Article Contents

Article Navigation > Journal of Shanghai University of Engineering Science > 2025 > 39(4): 420-427

ZHANG Nianchen, WANG Chen, HAN Mengyu, SUN Honghua, WANG Jinguo. Performance study of catalytic soot combustion using M0.3Co2.7O4 solid solution nanocrystals[J]. Journal of Shanghai University of Engineering Science, 2025, 39(4): 420-427. doi: 10.12299/jsues.24-0128

Citation:

ZHANG Nianchen, WANG Chen, HAN Mengyu, SUN Honghua, WANG Jinguo. Performance study of catalytic soot combustion using M_0.3Co_2.7O₄ solid solution nanocrystals[J]. Journal of Shanghai University of Engineering Science, 2025, 39(4): 420-427. doi: 10.12299/jsues.24-0128

Citation:

PDF( 2511 KB)

Performance study of catalytic soot combustion using M_0.3Co_2.7O₄ solid solution nanocrystals

doi: 10.12299/jsues.24-0128

School of Chemistry and Chemical Engineering, Shanghai University of Engineering Science, Shanghai 201620, China

Received Date: 2024-05-02
Available Online: 2026-02-02
Publish Date: 2025-12-01

Abstract

Abstract

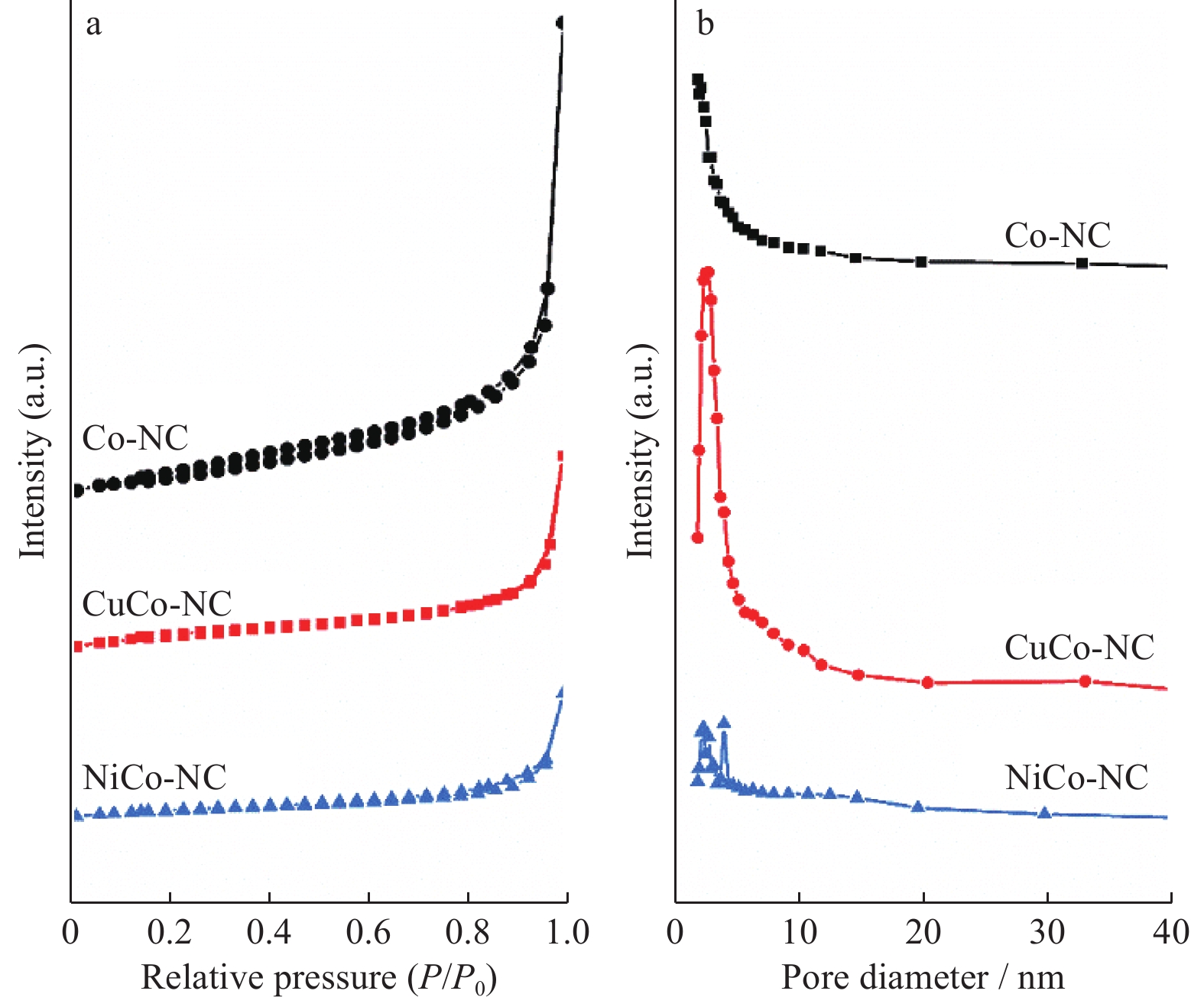

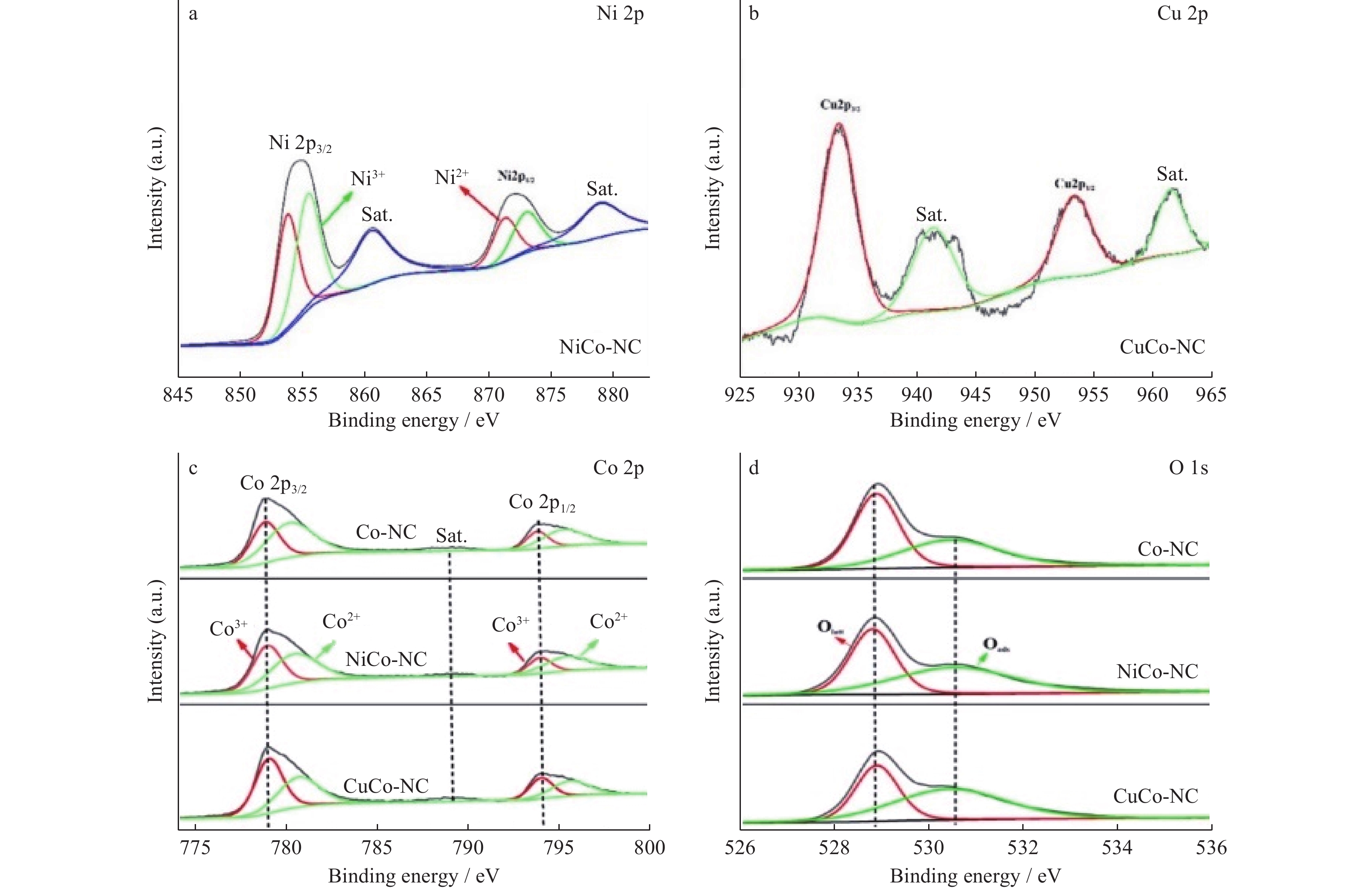

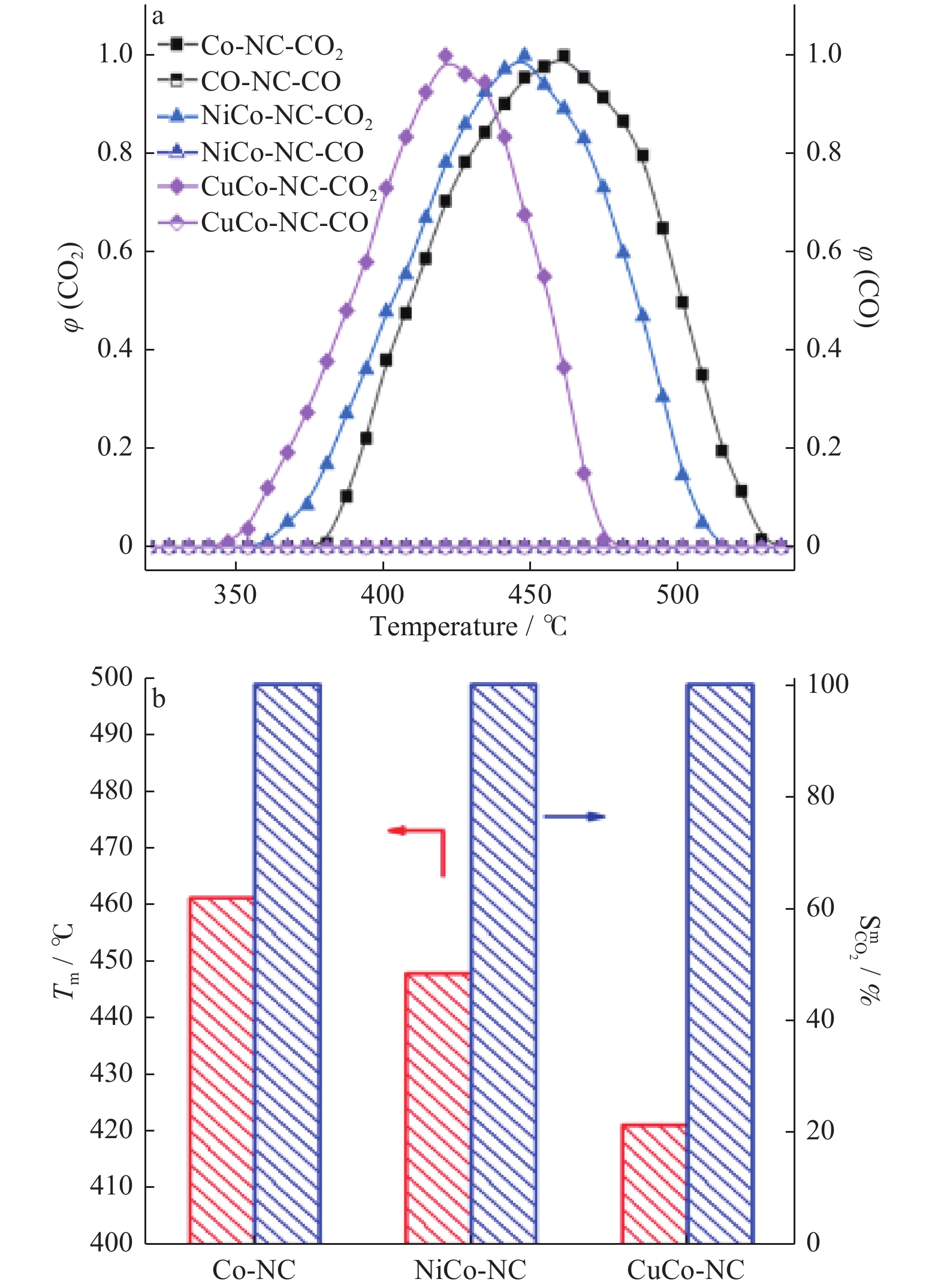

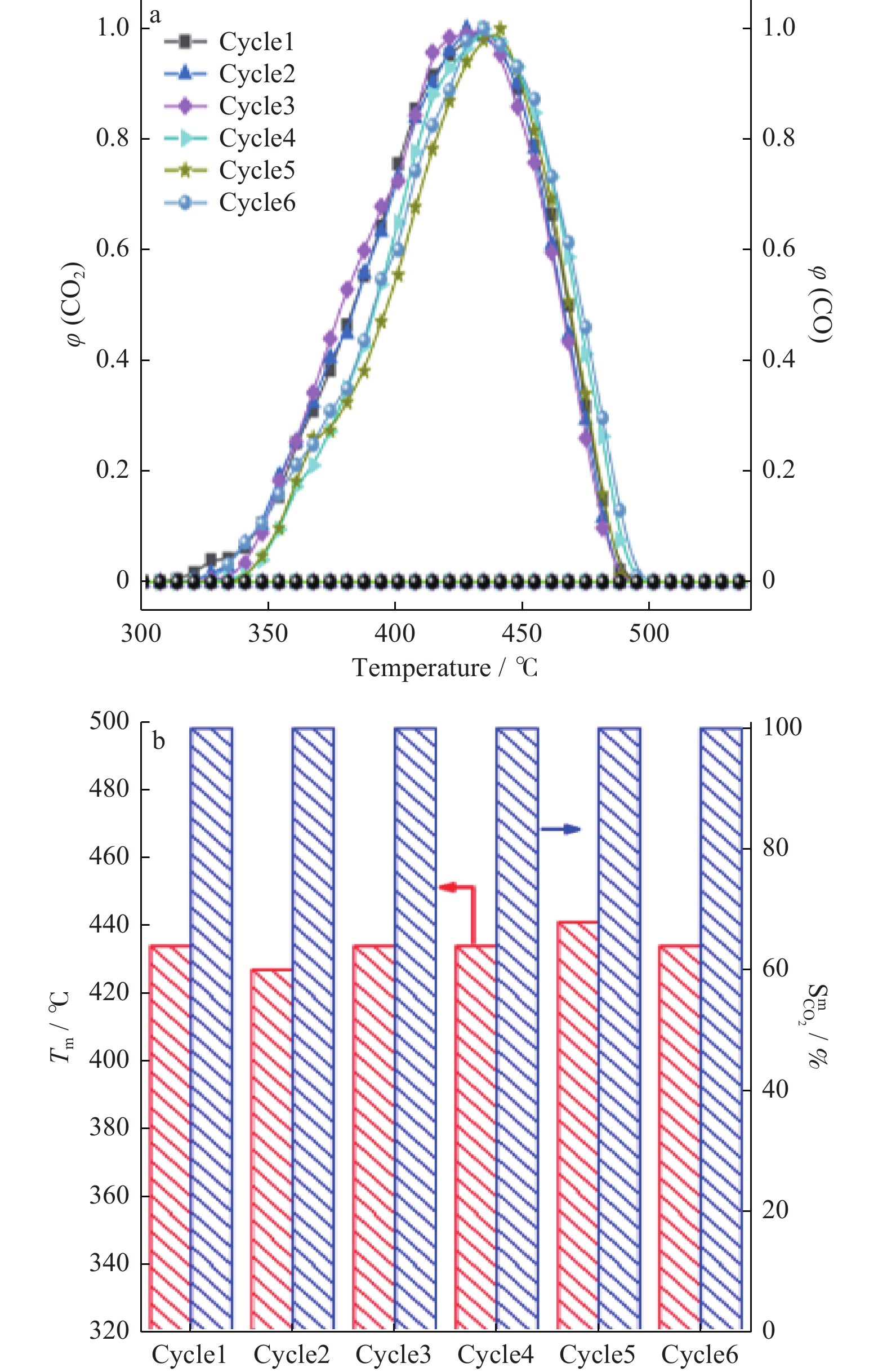

Transition-metal ion M (M = Cu、Ni) doped M_0.3Co_2.7O₄ solid solution nanocrystals were prepared by a one-pot hydrothermal route. The effect of M doping on the catalytic performance of Co₃O₄ nanocrystals for soot combustion was systematically investigated. Results indicate that Cu_0.3Co_2.7O₄ nanocrystals exhibit the optimal catalytic performance with a T_m of 421 ℃ and 100% CO₂ selectivity. It was mainly attributed to the following aspects: 1) Cu ion doping inhibited the crystal growth of Co₃O₄ and increased the specific surface area, thereby expanding the contact between the catalyst and soot particles; 2) Cu ion doping increased the molar ratio of surface Co³⁺ and created more defect sites, facilitating the adsorption and activation of oxygen species; 3) Cu ion doping enhanced the redox ability of the catalyst, which not only promoted the generation of active oxygen species but also enhanced the oxidation of NO to NO₂, thereby improving the soot combustion efficiency. Meanwhile, Cu_0.3Co_2.7O₄ solid solution nanocrystals showed good stability, providing a theoretical basis for designing high-efficiency diesel soot purification catalysts.
- catalytic combustion,
- soot particle,
- transition-metal ions,
- solid solution,
- nanocrystal

FullText(HTML)

References(23)

References

[1]	贺泓, 翁端, 资新运. 柴油车尾气排放污染控制技术综述[J] . 环境科学, 2007, 28(6): 1169 − 1177.
[2]	李炳章, 张文军, 张园园, 等. 柴油车尾气净化技术研究进展[J] . 山东化工, 2019, 48(9): 105 − 106.
[3]	王领辉, 李孟良, 徐达. 柴油机排放控制技术分析[J] . 城市车辆, 2008(4): 44 − 45.
[4]	陈卫红, 曹丽敏, 刘跃伟, 等. 空气细颗粒物与呼吸系统的健康损害[J] . 公共卫生与预防医学, 2016, 27(3): 1 − 4.
[5]	WANG J G, YANG G Y, CHENG L, et al. Three-dimensionally ordered macroporous spinel-type MCr₂O₄ (M = Co, Ni, Zn, Mn) catalysts with highly enhanced catalytic performance for soot combustion[J] . Catalysis Science & Technology, 2015, 5(9): 4594 − 4601.
[6]	WANG J G, CHENG L, AN W, et al. Boosting soot combustion efficiencies over CuO-CeO₂ catalysts with a 3DOM structure[J] . Catalysis Science & Technology, 2016, 6(19): 7342 − 7350.
[7]	ZHAI G J, WANG J G, CHEN Z M, et al. Boosting soot combustion efficiency of Co₃O₄ nanocrystals via tailoring crystal facets[J] . Chemical Engineering Journal, 2018, 337: 488 − 498. doi: 10.1016/j.cej.2017.12.141
[8]	ZHAI G J, WANG J G, CHEN Z M, et al. Highly enhanced soot oxidation activity over 3DOM Co₃O₄-CeO₂ catalysts by synergistic promoting effect[J] . Journal of Hazardous Materials, 2019, 363: 214 − 226. doi: 10.1016/j.jhazmat.2018.08.065
[9]	WANG J G, YANG S F, SUN H H, et al. Highly improved soot combustion performance over synergetic Mn_xCe_1-xO₂ solid solutions within mesoporous nanosheets[J] . Journal of Colloid and Interface Science, 2020, 577: 355 − 367. doi: 10.1016/j.jcis.2020.05.090
[10]	YANG S F, WANG J G, CHAI W, et al. Enhanced soot oxidation activity over CuO/CeO₂ mesoporous nanosheets[J] . Catalysis Science & Technology, 2019, 9(7): 1699 − 1709.
[11]	REN W, DING T, YANG Y X, et al. Identifying oxygen activation/oxidation sites for efficient soot combustion over silver catalysts interacted with nanoflower-like hydrotalcite-derived CoAlO metal oxides[J] . ACS Catalysis, 2019, 9(9): 8772 − 8784. doi: 10.1021/acscatal.9b01897
[12]	ZHOU X X, CHEN H R, ZHANG G B, et al. Cu/Mn co-loaded hierarchically porous zeolite beta: a highly efficient synergetic catalyst for soot oxidation[J] . Journal of Materials Chemistry A, 2015, 3(18): 9745 − 9753. doi: 10.1039/C5TA00094G
[13]	XIONG J, WU Q Q, MEI X L, et al. Fabrication of spinel-type Pd_xCo_3-xO₄ binary active sites on 3D ordered meso-macroporous Ce-Zr-O₂ with enhanced activity for catalytic soot oxidation[J] . ACS Catalysis, 2018, 8(9): 7915 − 7930. doi: 10.1021/acscatal.8b01924
[14]	CHENG Y, LIU J, ZHAO Z, et al. Highly efficient and simultaneously catalytic removal of PM and NO_x from diesel engines with 3DOM Ce_0.8M_0.1Zr_0.1O₂ (M = Mn, Co, Ni) catalysts[J] . Chemical Engineering Science, 2017, 167: 219 − 228. doi: 10.1016/j.ces.2017.04.023
[15]	WU Q Q, XIONG J, ZHANG Y L, et al. Interaction-induced self-assembly of Au@La₂O₃ core-shell nanoparticles on La₂O₂CO₃ nanorods with enhanced catalytic activity and stability for soot oxidation[J] . ACS Catalysis, 2019, 9(4): 3700 − 3715. doi: 10.1021/acscatal.9b00107
[16]	CHENG L, MEN Y, WANG J G, et al. Crystal facet-dependent reactivity of α-Mn₂O₃ microcrystalline catalyst for soot combustion[J] . Applied Catalysis B: Environmental, 2017, 204: 374 − 384. doi: 10.1016/j.apcatb.2016.11.041
[17]	ANEGGI E, WIATER D, DE LEITENBURG C, et al. Shape-dependent activity of ceria in soot combustion[J] . ACS Catalysis, 2014, 4(1): 172 − 181. doi: 10.1021/cs400850r
[18]	JI F, MEN Y, WANG J G, et al. Promoting diesel soot combustion efficiency by tailoring the shapes and crystal facets of nanoscale Mn₃O₄[J] . Applied Catalysis B: Environmental, 2019, 242: 227 − 237. doi: 10.1016/j.apcatb.2018.09.092
[19]	DAIRA R, KABIR A, BOUDJEMA B, et al. Structural and optical transmittance analysis of CuO thin films deposited by the spray pyrolysis method[J] . Solid State Sciences, 2020, 104: 106254. doi: 10.1016/j.solidstatesciences.2020.106254
[20]	NAKATE U T, AHMAD R, PATIL P, et al. Ultra thin NiO nanosheets for high performance hydrogen gas sensor device[J] . Applied Surface Science, 2020, 506: 144971. doi: 10.1016/j.apsusc.2019.144971
[21]	SUN B, WANG J G, CHEN M, et al. Boosting acetone oxidation performance over mesocrystal M_xCe_1-xO₂ (M = Ni, Cu, Zn) solid solution within hollow spheres by tailoring transition-metal cations[J] . Materials Chemistry and Physics, 2023, 293: 126925. doi: 10.1016/j.matchemphys.2022.126925
[22]	FAN G L, ZHAO L, GONG C R, et al. Effect of supports on soot oxidation of copper catalysts: BaTiO₃ versus Fe₂O₃@BaTiO₃ core/shell microsphere[J] . Nano, 2016, 11(1): 1650010. doi: 10.1142/S1793292016500107
[23]	CAO C M, XING L L, YANG Y X, et al. Diesel soot elimination over potassium-promoted Co₃O₄ nanowires monolithic catalysts under gravitation contact mode[J] . Applied Catalysis B: Environmental, 2017, 218: 32 − 45. doi: 10.1016/j.apcatb.2017.06.035
