Zinc-ion hybrid supercapacitor based on activated carbon cathode material

LI Shuaishuai; HUANG Qiannan; LI Wenyao

doi:10.12299/jsues.24-0179

Volume 39 Issue 4

Dec. 2025

Turn off MathJax

Article Contents

Article Navigation > Journal of Shanghai University of Engineering Science > 2025 > 39(4): 409-413, 484

LI Shuaishuai, HUANG Qiannan, LI Wenyao. Zinc-ion hybrid supercapacitor based on activated carbon cathode material[J]. Journal of Shanghai University of Engineering Science, 2025, 39(4): 409-413, 484. doi: 10.12299/jsues.24-0179

Citation:

LI Shuaishuai, HUANG Qiannan, LI Wenyao. Zinc-ion hybrid supercapacitor based on activated carbon cathode material[J]. Journal of Shanghai University of Engineering Science, 2025, 39(4): 409-413, 484. doi: 10.12299/jsues.24-0179

Citation:

PDF( 1738 KB)

Zinc-ion hybrid supercapacitor based on activated carbon cathode material

doi: 10.12299/jsues.24-0179

School of Materials Science and Engineering, Shanghai University of Engineering Science, Shanghai 201620, China

Received Date: 2024-06-20
Available Online: 2026-02-02
Publish Date: 2025-12-01

Abstract

Abstract

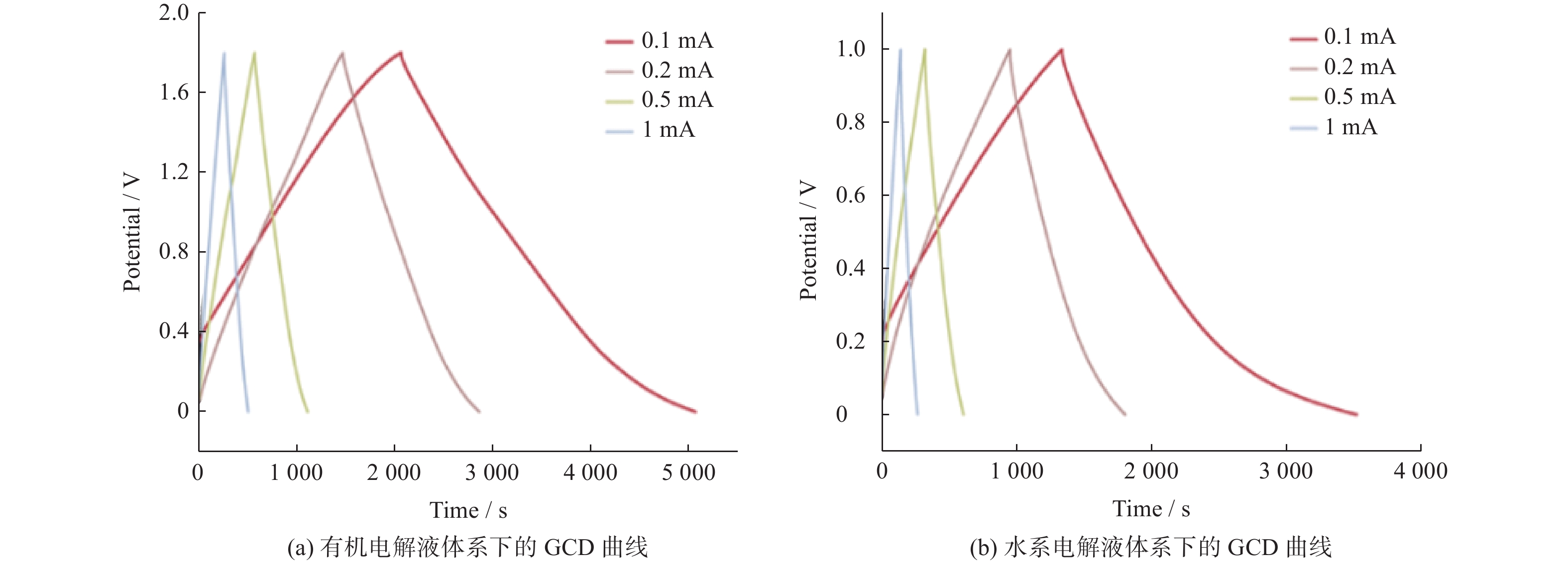

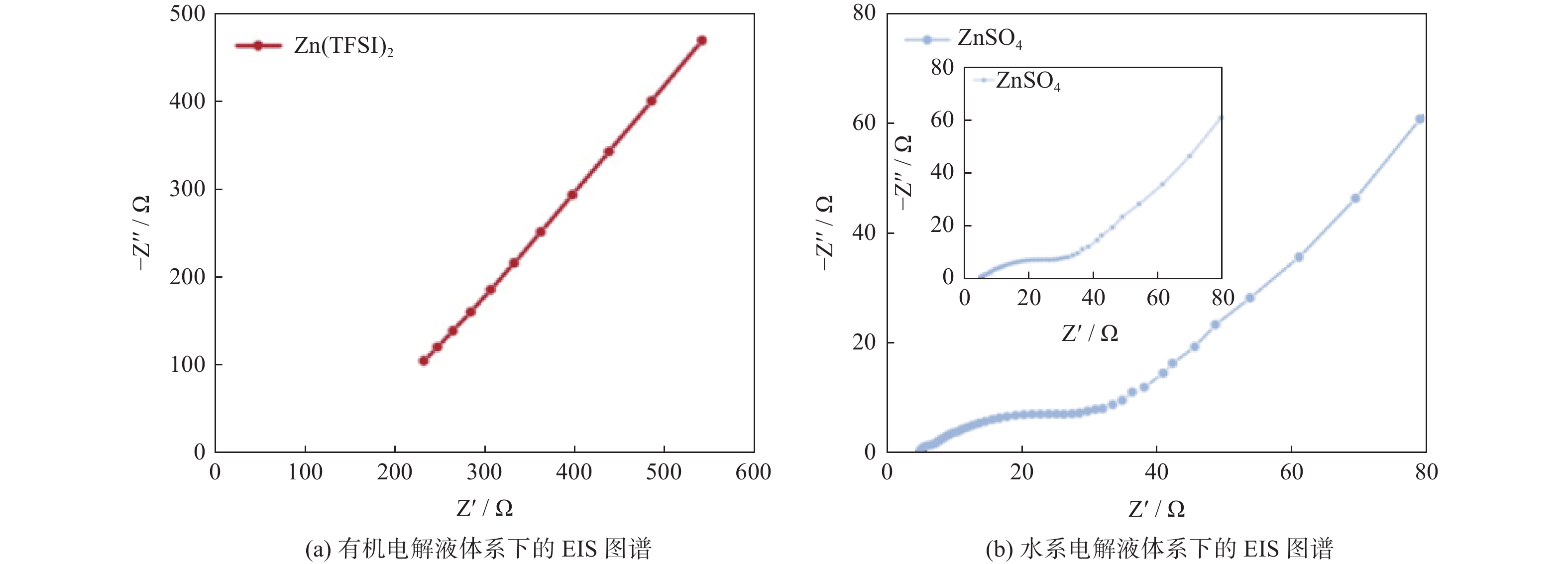

The unsustainability of traditional energy sources and environmental issues have led to an emphasis on new energy storage devices. Among them, supercapacitors have received widespread attention due to their high power density, long cycle life, and environmental friendliness. CR2032 coin cells were assembled using activated carbon as the cathode in both organic and aqueous electrolytes. At a scan rate of 0.1 mV/s, the specific capacitances of the organic and aqueous electrolytes were 143.44 and 156.58 F/g, respectively; at a current density of 0.1 A/g, the corresponding specific capacitances were 79.54 and 95.92 F/g. The organic system exhibited a maximum potential window of 1.8 V. After 600 cycles, the organic system demonstrated better stability in terms of specific capacitance and Coulomb cycle efficiency retention compared to the aqueous system. In contrast, the impedance behavior of the aqueous system was found to be superior.
- activated carbon,
- hybrid supercapacitor,
- zinc ions,
- electrolyte,
- specific capacitance

FullText(HTML)

References(8)

References

[1]	SHAO Y L, EL-KADY M F, SUN J Y, et al. Design and mechanisms of asymmetric supercapacitors[J] . Chemical Reviews, 2018, 118(18): 9233 − 9280. doi: 10.1021/acs.chemrev.8b00252
[2]	FORGHANI M, DONNE S W. Method comparison for deconvoluting capacitive and pseudo-capacitive contributions to electrochemical capacitor electrode behavior[J] . Journal of the Electrochemical Society, 2018, 165(3): A664 − A673. doi: 10.1149/2.0931803jes
[3]	韩亚伟, 姜挥, 付强, 等. 超级电容器国内外应用现状研究[J] . 上海节能, 2021(1): 43 − 52.
[4]	QU Q T, ZHANG P, WANG B, et al. Electrochemical performance of MnO₂ nanorods in neutral aqueous electrolytes as a cathode for asymmetric supercapacitors[J] . The Journal of Physical Chemistry C, 2009, 113(31): 14020 − 14027. doi: 10.1021/jp8113094
[5]	CHEN P C, SHEN G Z, SHI Y, et al. Preparation and characterization of flexible asymmetric supercapacitors based on transition-metal-oxide nanowire/single-walled carbon nanotube hybrid thin-film electrodes[J] . ACS Nano, 2010, 4(8): 4403 − 4411. doi: 10.1021/nn100856y
[6]	TANG Z, TANG C H, GONG H. A high energy density asymmetric supercapacitor from nano-architectured Ni(OH)₂/carbon nanotube electrodes[J] . Advanced Functional Materials, 2012, 22(6): 1272 − 1278. doi: 10.1002/adfm.201102796
[7]	YUAN C Z, LI J Y, HOU L R, et al. Ultrathin mesoporous NiCo₂O₄ nanosheets supported on Ni foam as advanced electrodes for supercapacitors[J] . Advanced Functional Materials, 2012, 22(21): 4592 − 4597. doi: 10.1002/adfm.201200994
[8]	LUO J M, FANG C, JIN C B, et al. Tunable pseudocapacitance storage of MXene by cation pillaring for high performance sodium-ion capacitors[J] . Journal of Materials Chemistry A, 2018, 6(17): 7794 − 7806. doi: 10.1039/C8TA02068J
