Thermodynamic analysis of product distribution and conversion rate of CH<sub>4</sub>/CO<sub>2</sub> reforming products

QIU Lipei; WANG Sha; HU Bin; YAN Jinbiao; SHEN Jun

doi:10.12299/jsues.24-0202

Volume 39 Issue 4

Dec. 2025

Turn off MathJax

Article Contents

Article Navigation > Journal of Shanghai University of Engineering Science > 2025 > 39(4): 477-484

QIU Lipei, WANG Sha, HU Bin, YAN Jinbiao, SHEN Jun. Thermodynamic analysis of product distribution and conversion rate of CH4/CO2 reforming products[J]. Journal of Shanghai University of Engineering Science, 2025, 39(4): 477-484. doi: 10.12299/jsues.24-0202

Citation:

QIU Lipei, WANG Sha, HU Bin, YAN Jinbiao, SHEN Jun. Thermodynamic analysis of product distribution and conversion rate of CH₄/CO₂ reforming products[J]. Journal of Shanghai University of Engineering Science, 2025, 39(4): 477-484. doi: 10.12299/jsues.24-0202

Citation:

PDF( 1451 KB)

Thermodynamic analysis of product distribution and conversion rate of CH₄/CO₂ reforming products

doi: 10.12299/jsues.24-0202

School of Mechanical and Automotive Engineering, Shanghai University of Engineering Science, Shanghai 201620, China

Received Date: 2024-07-15
Available Online: 2026-02-02
Publish Date: 2025-12-01

Abstract

Abstract

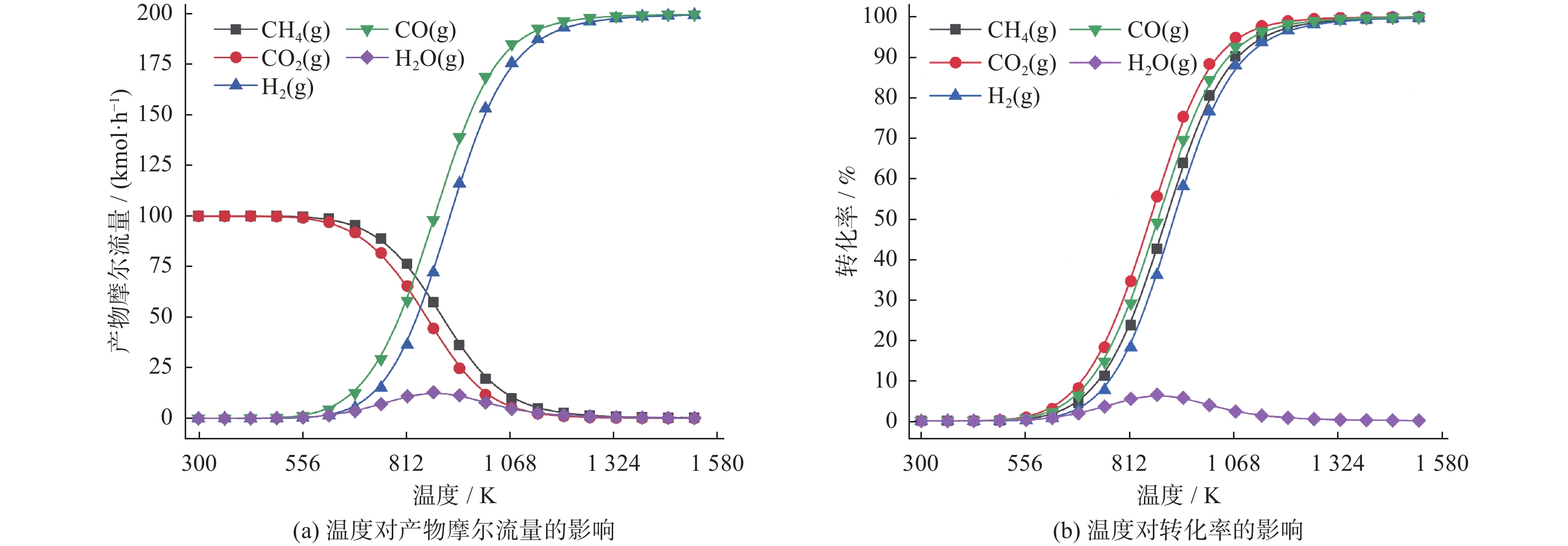

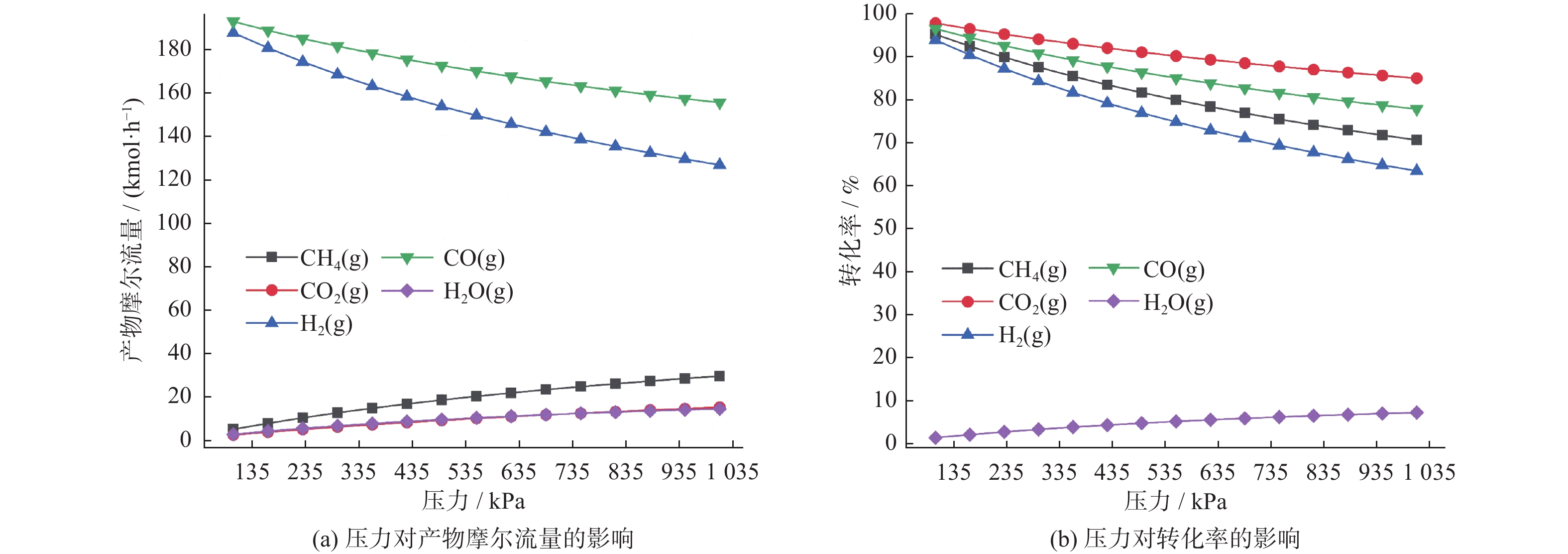

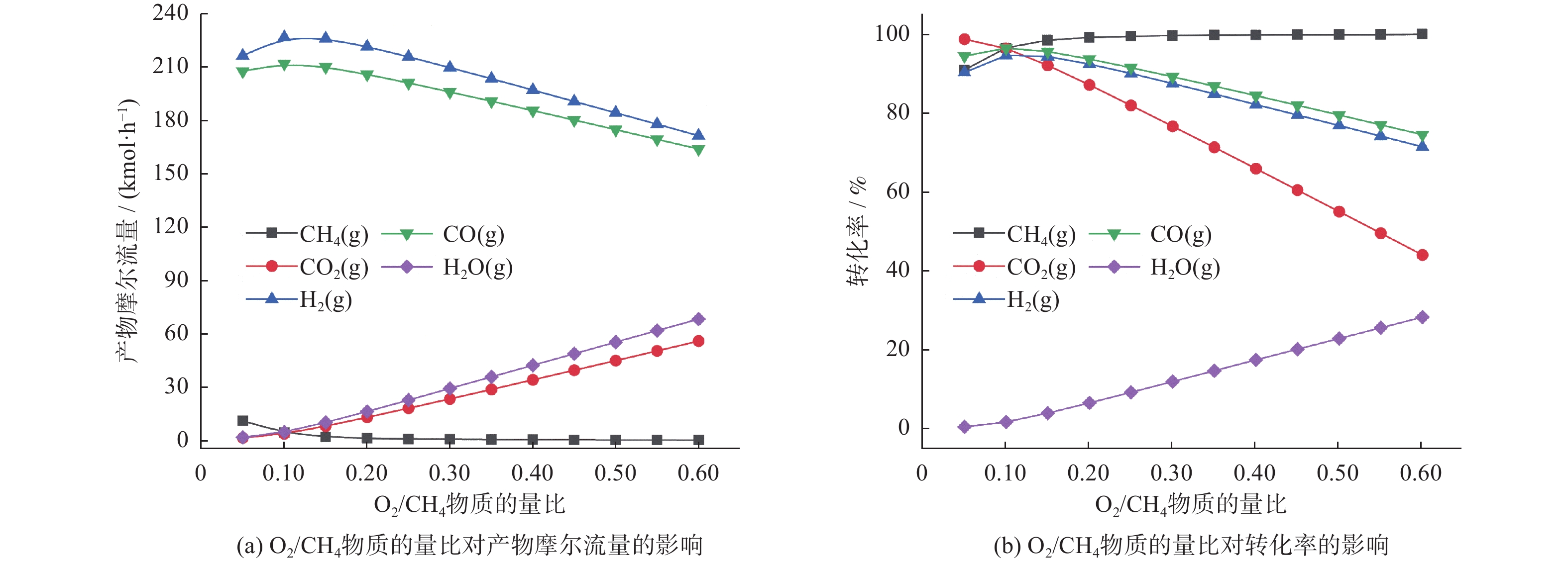

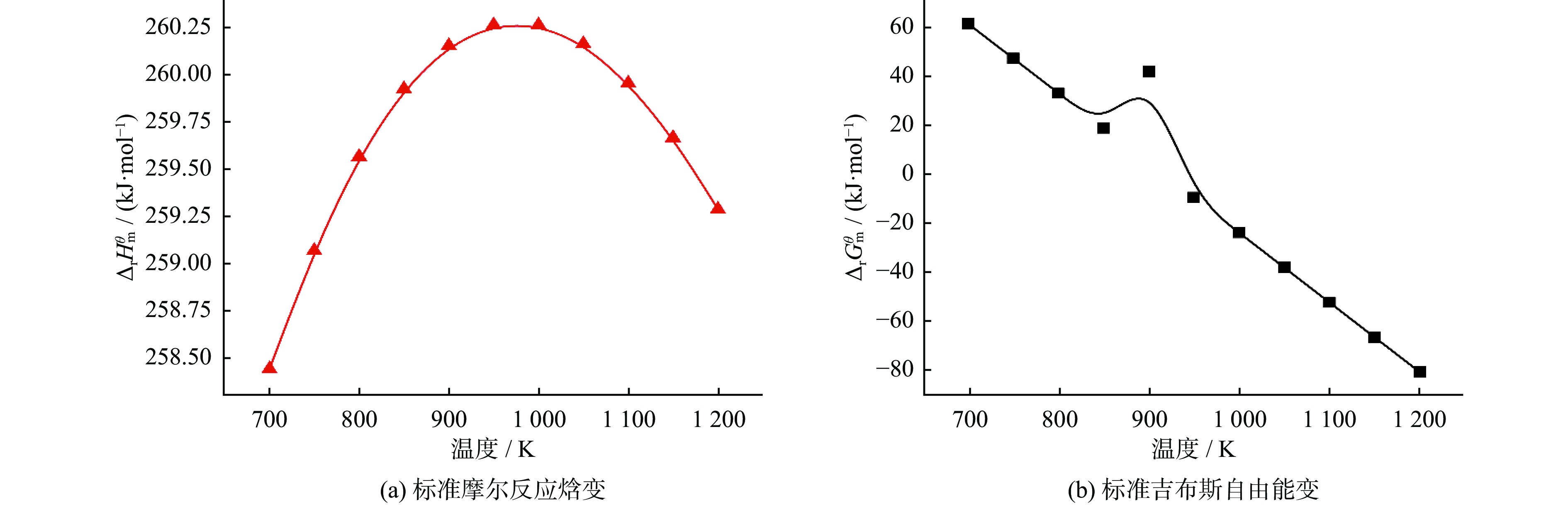

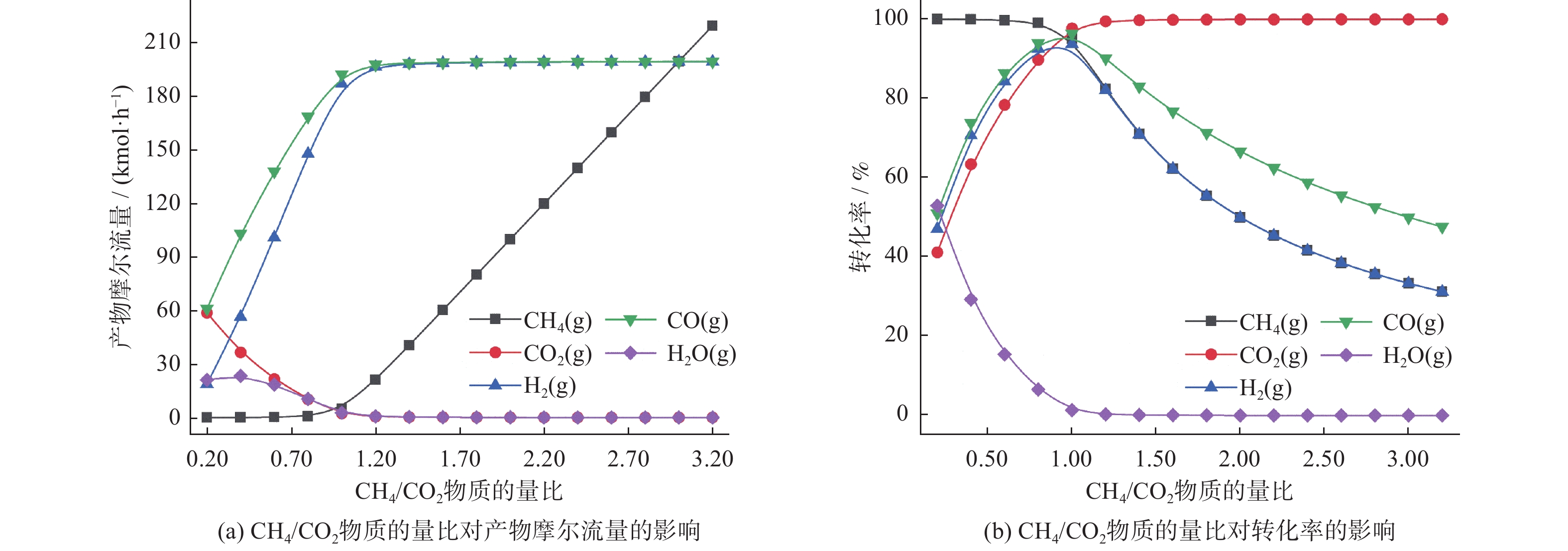

Based on the principle of Gibbs free energy minimization using HSC chemistry software, thermodynamic analysis of the CH₄/CO₂ reforming reaction process was performed. The effects of key parameters such as reaction temperature, pressure, feed ratio (n(CH₄)/n(CO₂) molar ratio), the inlet amounts of O₂ and H₂O, on the the equilibrium product distribution and reactant conversion were systematically explored. The results indicate that the conditions of 1137 K, 101.325 kPa, n(CH₄)/n(CO₂) = 1.20, n(O₂)/n(CH₄) = 0.10, and n(H₂O)/n(CH₄) = 0.07 are most favorable for CH₄/CO₂ conversion and H₂/CO generation. As an upstream reaction in numerous chemical synthesis chains, CH₄/CO₂ reforming effectively utilizes the two major greenhouse gases CH₄ and CO₂ to produce syngas (H₂/CO), an important chemical raw materia. These findings benefits the development of related industries and provide a useful reference for global climate sustainability.
- CH₄/CO₂,
- reforming,
- thermodynamics,
- conversion rate,
- equilibrium

FullText(HTML)

References(16)

References

[1]	LE PHUONG D H, ALSAIARI M, PHAM C Q, et al. Carbon dioxide reforming of methane over modified iron-cobalt alumina catalyst: role of promoter[J] . Journal of the Taiwan Institute of Chemical Engineers, 2024, 155: 105253. doi: 10.1016/j.jtice.2023.105253
[2]	ZHANG M, ZHANG J F, ZHOU Z L, et al. Effects of the surface adsorbed oxygen species tuned by rare-earth metal doping on dry reforming of methane over Ni/ZrO₂ catalyst[J] . Applied Catalysis B: Environmental, 2020, 264: 118522.
[3]	JOO S, KIM K, KWON O, et al. Enhancing thermocatalytic activities by upshifting the d-band center of exsolved Co-Ni-Fe ternary alloy nanoparticles for the dry reforming of methane[J] . Angewandte Chemie International Edition, 2021, 60(29): 15912 − 15919.
[4]	CHAWL S K, GEORGE M, PATEL F, et al. Production of synthesis gas by carbon dioxide reforming of methane over nickel based and perovskite catalysts[J] . Procedia Engineering, 2013, 51: 461 − 466. doi: 10.1016/j.proeng.2013.01.065
[5]	AZIZ M A A, SETIABUDI H D, TEH L P, et al. A review of heterogeneous catalysts for syngas production via dry reforming[J] . Journal of the Taiwan Institute of Chemical Engineers, 2019, 101: 139 − 158.
[6]	张哲. 我国可再生能源法律完善研究[D] . 杨凌: 西北农林科技大学, 2009.
[7]	钱慧琳, 冉金玲, 何安帮, 等. 二氧化碳-甲烷干气重整反应及其积炭控制的热力学分析[J] . 低碳化学与化工, 2023, 48(5): 55 − 61.
[8]	李建伟, 陈冲, 王丹, 等. 甲烷二氧化碳重整热力学分析[J] . 石油与天然气化工, 2015, 44(3): 60 − 64.
[9]	CHEIN R Y, CHEN Y C, YU C T, et al. Thermodynamic analysis of dry reforming of CH₄ with CO₂ at high pressures[J] . Journal of Natural Gas Science and Engineering, 2015, 26: 617 − 629.
[10]	CHEN Y, ZHANG Y M, FAN G Z, et al. Cooperative catalysis coupling photo-/photothermal effect to drive Sabatier reaction with unprecedented conversion and selectivity[J] . Joule, 2021, 5(12): 3235 − 3251. doi: 10.1016/j.joule.2021.11.009
[11]	FAN L, ZHAO Y L, CHEN L, et al. Selective production of ethylene glycol at high rate via cascade catalysis[J] . Nature Catalysis, 2023, 6(7): 585 − 595. doi: 10.1038/s41929-023-00977-6
[12]	TANG X Y, YANG W W, MA X, et al. Synergistic enhancement of reaction and separation for a solar membrane reactor by topology optimization of catalyst bed[J] . Chemical Engineering Journal, 2023, 472: 145123. doi: 10.1016/j.cej.2023.145123
[13]	TANG X Y, YANG W W, MA X, et al. An integrated modeling method for membrane reactors and optimization study of operating conditions[J] . Energy, 2023, 268: 126730. doi: 10.1016/j.energy.2023.126730
[14]	石天宝, 张秋菊, 纪容昕, 等. CH₄和CO₂转化催化剂的研究[J] . 化工生产与技术, 2000, 7(2): 12 − 15.
[15]	傅献彩, 沈文霞, 姚天扬, 等. 物理化学[M] . 5版. 北京: 高等教育出版社, 2005.
[16]	张迪茜. 生物质能源研究进展及应用前景[D] . 北京: 北京理工大学, 2015.
