基于CiteSpace知识图谱的污水处理碳排放分析

骆泽旭; 舒诗湖; 朱延平; 陈志辉; 杨仲侃

doi:10.12299/jsues.23-0140

基于CiteSpace知识图谱的污水处理碳排放分析

doi: 10.12299/jsues.23-0140

骆泽旭^1,,
舒诗湖^{1, 2, ,},
朱延平^{1, 2},
陈志辉³,
杨仲侃³

1.
东华大学环境科学与工程学院, 上海 201620
2.
上海污染控制与生态安全研究院, 上海 200092
3.
上海市自来水奉贤有限公司, 上海 201400

基金项目: 上海市科委社会发展领域重点项目（19DZ1204400）；水体污染控制与治理国家科技重大专项项目资助（2017ZX07207005）

详细信息

作者简介:
骆泽旭（1997−），男，硕士，研究方向为给排水管网系统模拟与优化. E-mail：1505879546@qq.com

通讯作者:
舒诗湖（1981−），男，教授，博导，研究方向为给排水管网系统模拟与优化. E-mail：shushihu@dhu.edu.cn

中图分类号: X703.1
计量
- 文章访问数: 291
- HTML全文浏览量: 146
- PDF下载量: 74
- 被引次数: 0
出版历程
- 收稿日期: 2023-05-15
- 录用日期: 2023-06-10
- 刊出日期: 2023-09-30

Carbon emission analysis of sewage treatment based on CiteSpace knowledge map

LUO Zexu^1
,,
SHU Shihu^{1, 2
, ,},
ZHU Yanping^{1, 2},
CHEN Zhihui³,
YANG Zhongkan³

1.
College of Environmental Science and Engineering, Donghua University, Shanghai 201620, China
2.
Shanghai Institute of Pollution Control and Ecological Security, Shanghai 200092, China
3.
Shanghai Waterworks Fengxian Co., Ltd., Shanghai 201400, China

摘要

摘要: 为研究近二十年我国污水处理碳排放的发展变化，以中国知网（CNKI）数据库检索到的期刊论文为数据源，基于CiteSpace知识图谱分析，对国内污水处理碳排放的研究热点、演变趋势等方面进行分析，对未来污水厂建设思路的转变、处理工艺的更新做了进一步探讨，并总结污水处理厂实现碳中和的方法与路径. 提出污水处理碳排放在未来的研究中应当从加强各高校之间的合作、加速污水处理厂转型、加深处理工艺研究三个方面入手.
- 污水处理厂 /
- 碳排放 /
- CiteSpace /
- 处理工艺 /
- 碳中和
Abstract: To comprehensively analyze the development and changes in carbon emissions associated with sewage treatment in China over the past two decades, key areas of focus, evolving trends, and the other pertinent aspects related to carbon emissions within China's domestic sewage treatment sector were analyzed based on journal articles sourced from the CNKI database and the CiteSpace knowledge mapping tool. Approaches to sewage treatment plant construction and updates to treatment processes were further discussed, and the methods and strategies of carbon neutrality in sewage treatment plants in future were summarized. The future research on carbon emissions in sewage treatment should be carried out from three aspects: enhancing collaboration among various universities, expediting the transformation of sewage treatment plants, and deepening research on treatment processes.
- sewage treatment plant /
- carbon emission /
- CiteSpace /
- treatment process /
- carbon neutrality

HTML全文

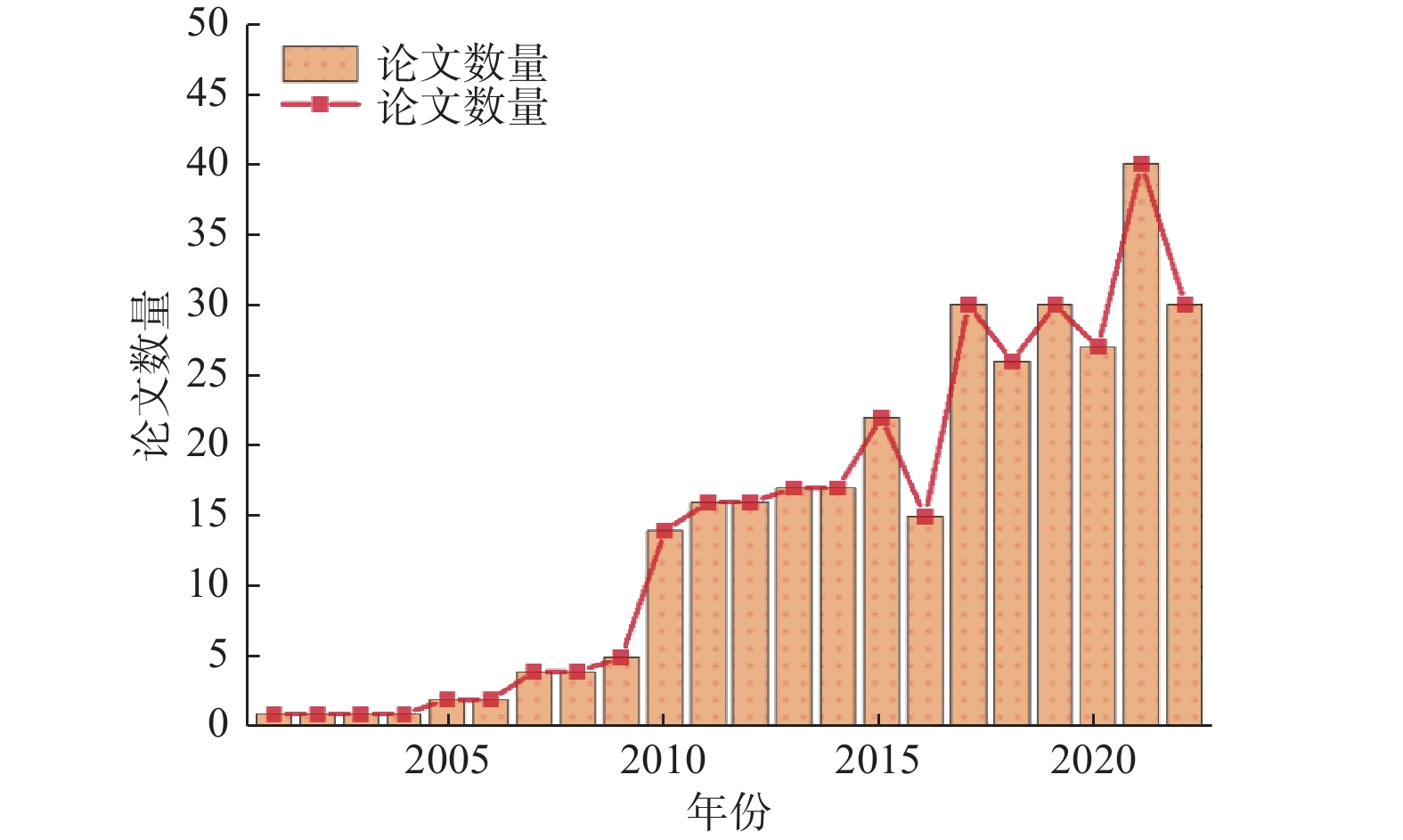

图 1 发文数量图

Figure 1. Number of Publications Chart

下载: 全尺寸图片幻灯片

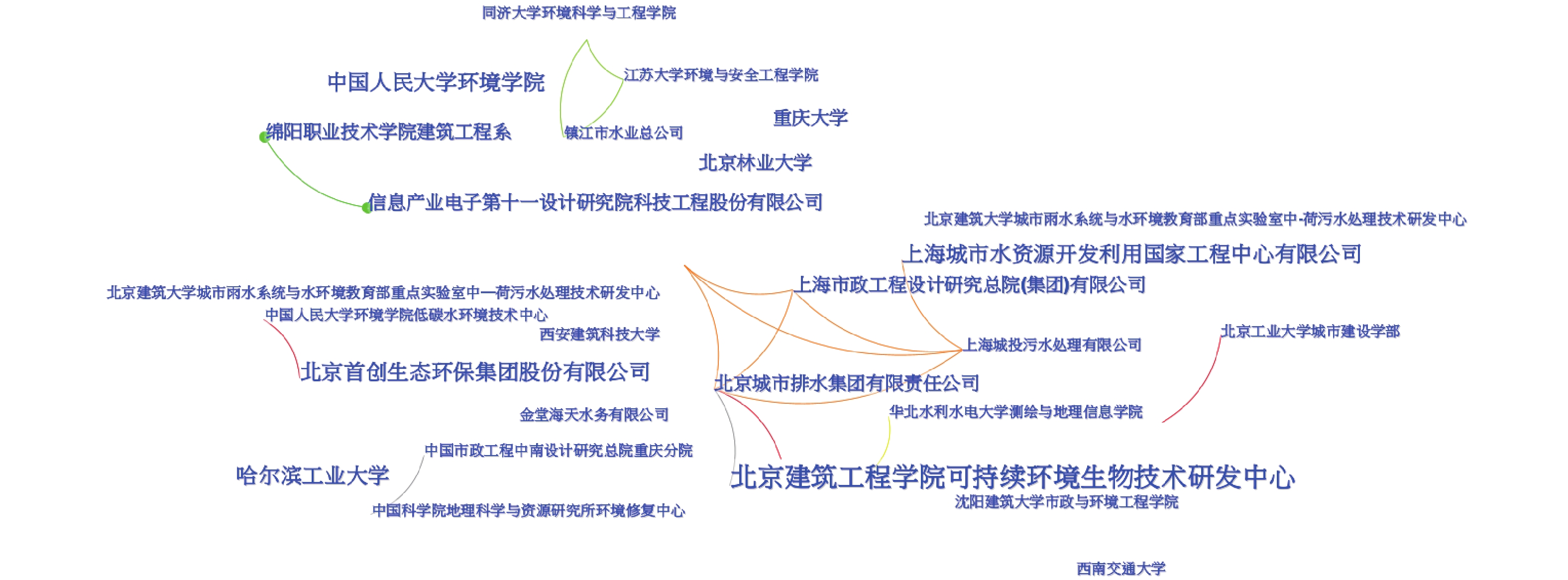

图 2 研究机构联系图

Figure 2. Association chart of research institutions

下载: 全尺寸图片幻灯片

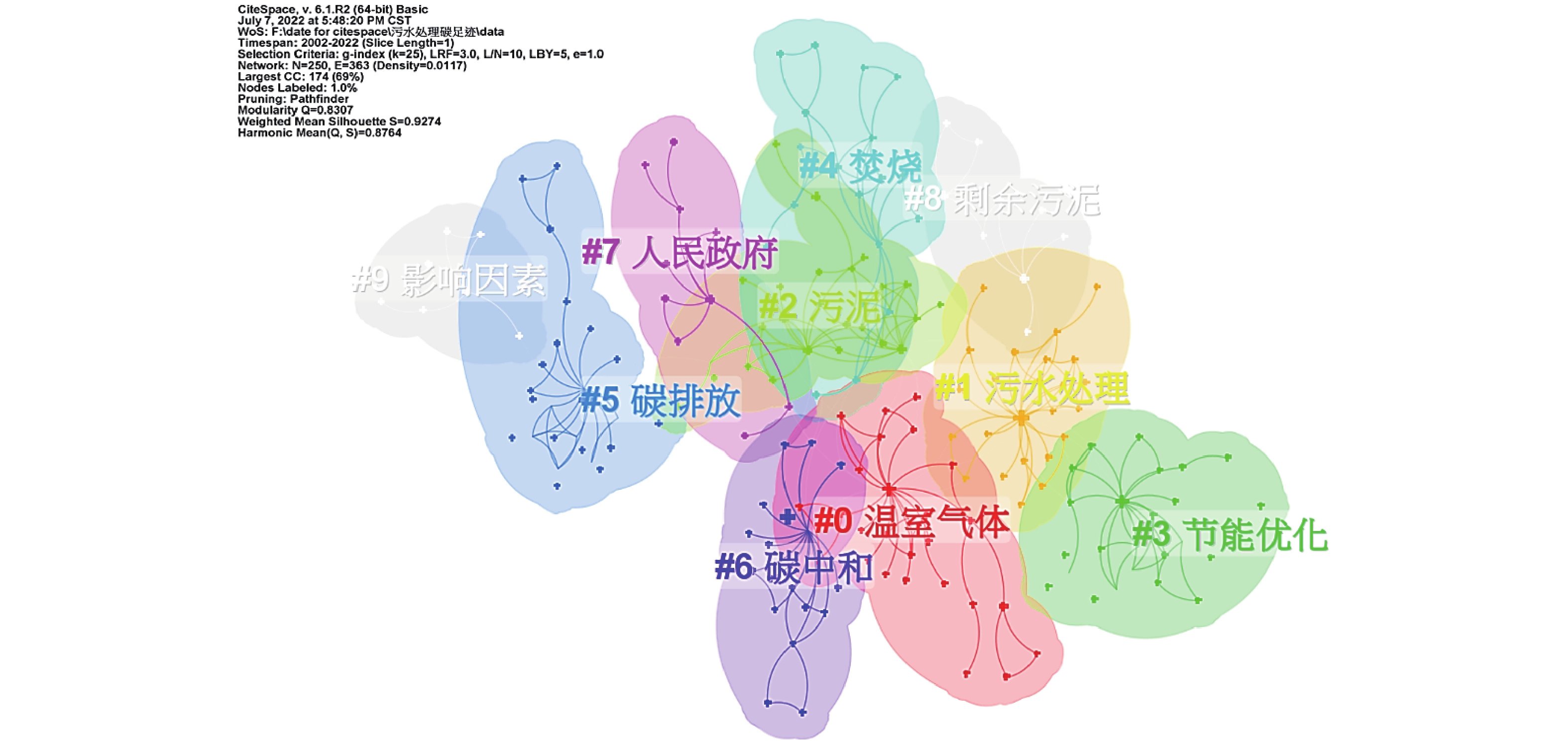

图 3 关键词聚类图

Figure 3. Keywords cluster graph

下载: 全尺寸图片幻灯片

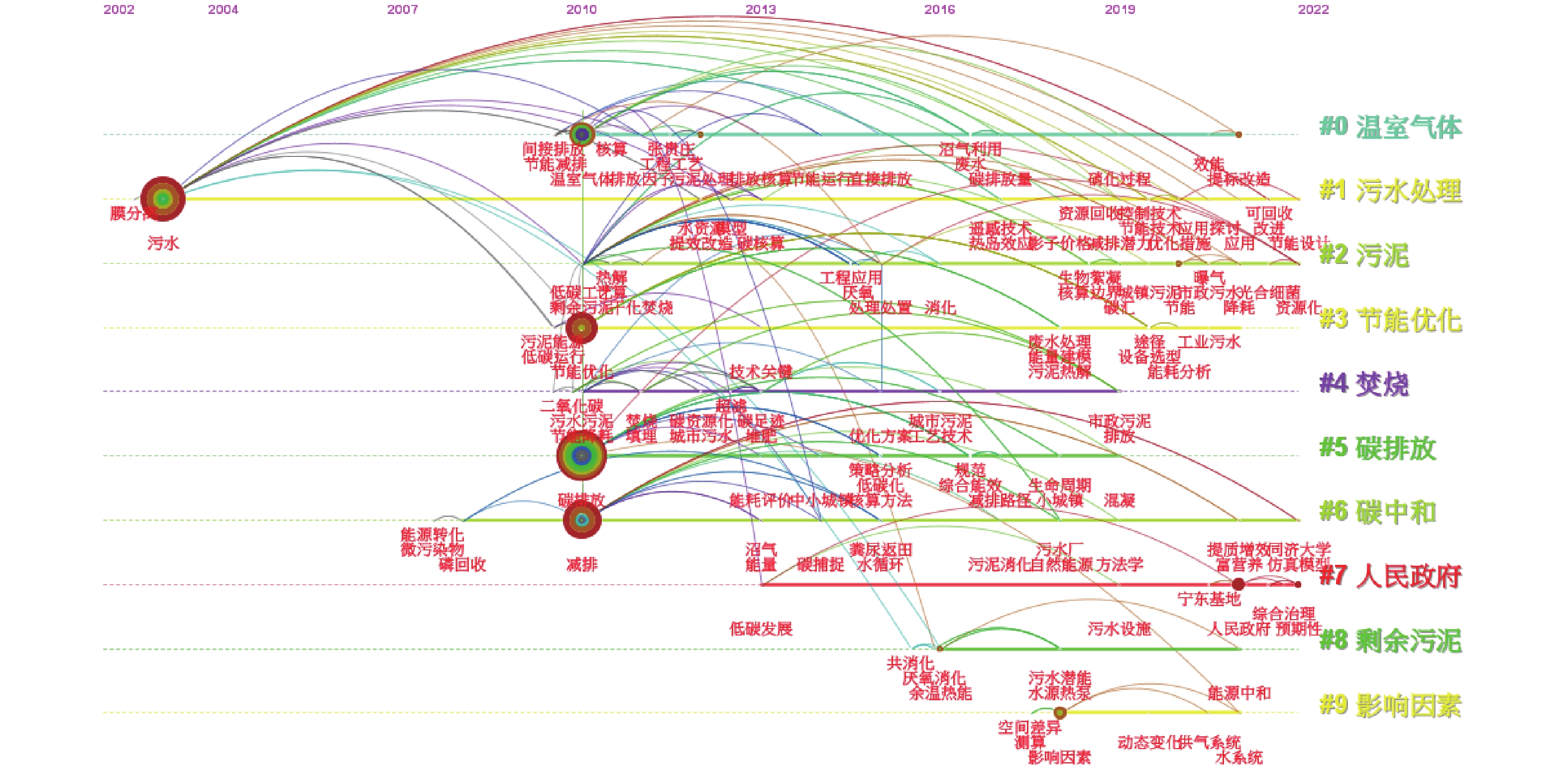

图 4 时间线图谱

Figure 4. Time line graph

下载: 全尺寸图片幻灯片

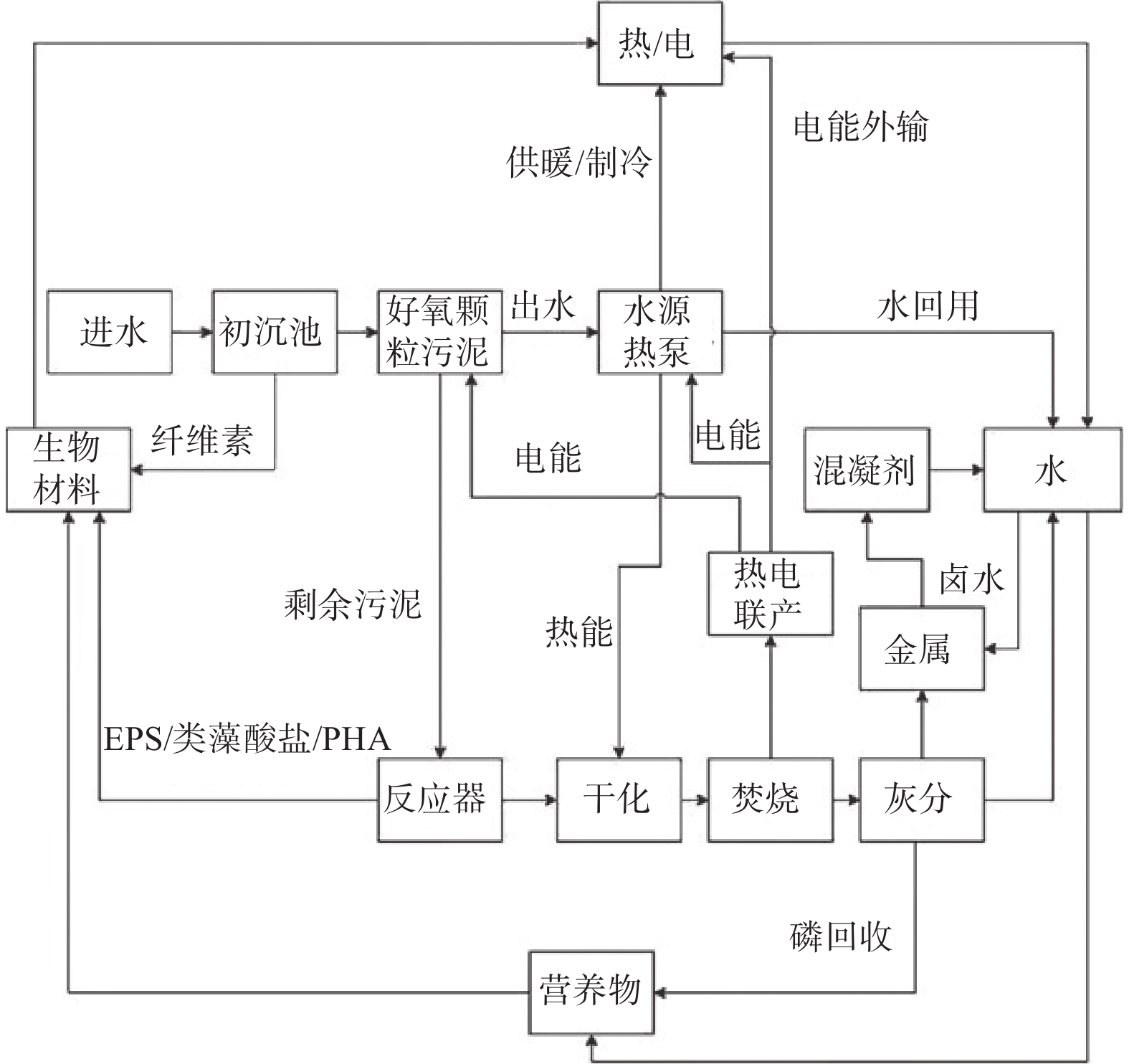

图 5 蓝色水工厂框架^[24]

Figure 5. Blue water factory frame ^[24]

下载: 全尺寸图片幻灯片

参考文献(48)

[1]	ZHAO Q, YU P, Mahendran R, et al. Global climate change and human health: Pathways and possible solutions[J] . Eco-Environment& Health,2022,1(2):53 − 62.
[2]	RANA I A. Disaster and climate change resilience: A bibliometric analysis[J] . International Journal of Disaster Risk Reduction,2020,50:101839. doi: 10.1016/j.ijdrr.2020.101839
[3]	JN A, BV B. Mapping the evolution and current trends in climate change adaptation science[J] . Climate Risk Management,2021:100290.
[4]	KAKU K. An inconvenient truth-global warming on greenhouse gas (GHG) reduction under Kyoto Protocol regime to post Kyoto Protocol in ASIA[J] . Procedia Engineering,2011,8(1):515 − 519.
[5]	GUNFAUS M. T, Waisman H. Assessing the adequacy of the global response to the Paris Agreement: Toward a full appraisal of climate ambition and action[J] . Earth System Governance,2021,8(1):100102.
[6]	戴晓虎, 张辰, 章林伟, 等. 碳中和背景下污泥处理处置与资源化发展方向思考[J] . 给水排水,2021,47(3):1 − 5.
[7]	王洪臣. 我国城镇污水处理行业碳减排路径及潜力[J] . 给水排水,2017,43(3):4.
[8]	GARFIELD E. From the science of science to Scientometrics visualizing the history of science with HistCite software[J] . Journal of Informetrics,2009,3(3):173 − 179. doi: 10.1016/j.joi.2009.03.009
[9]	王颖, 戎文慧. 可视化文本分析和数据挖掘工具RefViz[J] . 中华医学图书情报杂志,2006,15(6):61 − 64.
[10]	CHEN C. CiteSpace II: Detecting and visualizing emerging trends and transient patterns in scientific literature[J] . Journal of the American Society for Information Science Technology,2006,57(3):359 − 377. doi: 10.1002/asi.20317
[11]	刘启元, 叶鹰. 文献题录信息挖掘技术方法及其软件SATI的实现: 以中外图书情报学为例[J] . 信息资源管理学报,2012,2(1):50 − 58.
[12]	周宏春. 应对气候变化的国际经验及其启示[J] . 中国科技投资,2009(11):78−79.
[13]	国家发展和改革委员会. 国家发展和改革委员会办公厅就关于开展碳排放权交易试点工作发出通知[EB/OL]. (2011−10−29)[2022−12−20]. https://zfxxgk.ndrc.gov.cn/web/iteminfo.jsp?id=1349
[14]	常纪文, 井媛媛, 耿瑜, 等. 推进市政污水处理行业低碳转型, 助力碳达峰, 碳中和[J] . 中国环保产业,2021(6):9 − 17.
[15]	QU J H, WANG H C, WANG K J, et al. Municipal wastewater treatment in China: Development history and future perspectives[J] . Frontiers of Environmental Science & Engineering,2019,13(6):88.
[16]	黄悦, 刘广奇, 陶相婉, 等. 我国建制镇污水处理现状及发展方向研究[J] . 中国给水排水,2022,38(12):37 − 41.
[17]	宋新新, 刘杰, 林甲, 等. 碳中和时代下我国能量自给型污水处理厂发展方向及工程实践[J] . 环境科学学报,2022,42(4):11.
[18]	杜朝丹, 陈美香, 林志龙, 等. 热水解 + 厌氧消化处理市政污泥示范工程[J] . 中国给水排水,2019,35(10):97 − 104.
[19]	曹业始, 郑兴灿, 刘智晓, 等. 中国城市污水处理的瓶颈, 缘由及可能的解决方案[J] . 北京工业大学学报,2021,47(11):11.
[20]	COGERT K I, ZIELS R M, WINKLER M. Reducing cost and environmental impact of wastewater treatment with denitrifying methanotrophs, anammox, and mainstream anaerobic treatment[J] . Environmental Science Technology,2019,53(21):12935 − 12944. doi: 10.1021/acs.est.9b04764
[21]	QZA B, DS A, MW A, et al. Analysis of typical energy saving technology in the sewage treatment plant[J] . Energy Procedia,2017,142:1230 − 1237. doi: 10.1016/j.egypro.2017.12.511
[22]	曲久辉. 建设面向未来的中国污水处理概念厂[N]. 中国环境报, 2014−01−07(10).
[23]	曲久辉. 饮用水处理工艺改革的方向与愿景[J] . 给水排水,2016,42(1):1. doi: 10.3969/j.issn.1002-8471.2016.01.001
[24]	郝晓地, 李季, 吴远远, 等. 蓝色水工厂: 框架与技术[J] . 中国给水排水,2022,39(4):1 − 11.
[25]	郝晓地, 孙晓明, VAN LOOSDRECHT M. 好氧颗粒污泥技术工程化进展一瞥[J] . 中国给水排水,2011,27(20):9 − 12.
[26]	LOOSDRECHT M, BRDJANOVIC D. Anticipating the next century of wastewater treatment[J] . Science,2014,344(6191):1452 − 1453. doi: 10.1126/science.1255183
[27]	郝晓地, 于晶伦, 刘然彬, 等. 剩余污泥焚烧灰分磷回收及其技术进展[J] . 环境科学学报,2020,40(4):1149 − 1159.
[28]	郝晓地, 郭小媛, 时琛, 等. 污泥焚烧灰分磷回收Ash Dec工艺及其研究进展[J] . 中国给水排水,2022,38(14):17 − 24.
[29]	郝晓地, 衣兰凯, 秦建军. 生物营养物去除工艺的数字化控制集成研究[J] . 中国给水排水,2013,29(3):93 − 98. doi: 10.3969/j.issn.1000-4602.2013.03.025
[30]	MARÍA S, RAÚL M, BEGO A C, et al. Pilot-scale bioelectrochemical system for simultaneous nitrogen and carbon removal in urban wastewater treatment plants[J] . Journal of Bioscience and Bioengineering,2018,126(6):758 − 763. doi: 10.1016/j.jbiosc.2018.06.008
[31]	ZHENG T, WANG Q, ZHANG T, et al. Microbubble enhanced ozonation process for advanced treatment of wastewater produced in acrylic fiber manufacturing industry[J] . Journal of Hazardous Materials,2015,287(28):412 − 420.
[32]	郝晓地, 仇付国, VANDERSTAR W R L, 等. 厌氧氨氧化技术工程化的全球现状及展望[J] . 中国给水排水,2007(18):15 − 19.
[33]	刘颖, 田在锋. 生物脱氮新工艺研究进展[J] . 现代化工,2022,42(4):53 − 57.
[34]	闾刚, 徐乐中, 沈耀良, 等. 快速启动厌氧氨氧化工艺[J] . 环境科学,2017,38(3):1116 − 1121.
[35]	王衫允, 贾方旭, 高梦佳, 等. 不同基因水平的厌氧氨氧化污泥功能微生物特性[J] . 中国给水排水,2017,32(13):96 − 101.
[36]	TRINH H. P, LEE S. H, JEONG G, et al. Recent developments of the mainstream anammox processes: Challenges and opportunities[J] . Journal of Environmental Chemical Engineering,2021,9(4):105583.
[37]	LIN W Y, WEI C. N, WONG B, et al. Evaluation of sewage sludge incineration ash as a potential land reclamation material[J] . Journal of Hazardous Materials,2018,357(5):63 − 72.
[38]	刘云兴, 罗海斌. 中国城市污水厂污泥处理技术的现状及发展研究[J] . 环境科学与管理,2013,38(7):94 − 97.
[39]	张杞蓉, 普晓晶. 中国城市污水厂污泥处置现状研究[J] . 环境科学与管理,2015,40(4):86 − 89.
[40]	ALVARENGA P, MOURINHA C, FARTO M, et al. Sewage sludge, compost and other representative organic wastes as agricultural soil amendments: Benefits versus limiting factors[J] . Waste Manag,2015,40(6):44 − 52.
[41]	张辰, 段妮娜, 张莹, 等. 污水处理厂污泥独立焚烧工艺路线及适用性解析[J] . 给水排水,2021,57(1):41 − 48.
[42]	陈少卿, 王飞, 池涌, 等. 污泥干燥焚烧工程系统质能平衡分析[J] . 环境工程学报,2017,11(1):515 − 521.
[43]	YUE X, ARENA U, CHEN D, et al. Anaerobic digestion disposal of sewage sludge pyrolysis liquid in cow dung matrix and the enhancing effect of sewage sludge char[J] . Journal of Cleaner Production,2019,235:801 − 811.
[44]	ZHANG W, DONG B, DAI X H, et al. Enhancement of sludge dewaterability via the thermal hydrolysis anaerobic digestion mechanism based on moisture and organic matter interactions[J] . Science of the Total Environment,2021,798:149229.
[45]	VLYSSIDES A.G, KARLIS P. K. Thermal-alkaline solubilization of waste activated sludge as a pre-treatment stage for anaerobic digestion[J] . Bioresource Technology,2004,91(2):201 − 206. doi: 10.1016/S0960-8524(03)00176-7
[46]	KEYMER P, RUFFELL I, PRATT S, et al. High pressure thermal hydrolysis as pre-treatment to increase the methane yield during anaerobic digestion of microalgae[J] . Bioresource Technology,2013,131:128 − 133.
[47]	BARBER W. Thermal hydrolysis for sewage treatment: A critical review[J] . Water Research,2016,104:53 − 71. doi: 10.1016/j.watres.2016.07.069
[48]	任征然, 李伟, 高金华, 等. 热水解高级厌氧消化研究与应用进展[J] . 水处理技术,2021,47(11):6.
