Numerical simulation of inclusions in K439B turbine nozzle casting
-
摘要: 导向器是飞机重要零部件，用高温合金K439B铸造导向器过程中易产生夹杂，导致导向器性能降低。运用ProCAST有限元模拟软件分析浇注温度和浇注速度对夹杂产生的影响。研究发现，当浇注温度升高，导向器铸件的夹杂数量整体呈现减少的趋势，浇注温度为
1520 ℃时夹杂最少；当浇注速度增加，夹杂的直径先增大后减小，夹杂数量有所减少，在浇注速度为176 mm/s时夹杂最少。研究得出最佳工艺参数为浇注温度1520 ℃，浇注速度176 mm/s，此时夹杂缺陷最少。Abstract: The turbine nozzle is an important component of aircraft. During the casting process of the turbine nozzle made of high-temperature alloy K439B, inclusions are prone to be generated, leading to a decrease in its performance. The finite element simulation software ProCAST was used to analyze the influence of pouring temperature and pouring speed on inclusion. The results show that the inclusions in the turbine nozzle castings tend to decrease as pouring temperature increases. With increasing pouring speed, the diameter of inclusions first increases and then decreases, while the number of inclusions decreases. The inclusions were the least when the pouring speed was 176 mm/s. The optimal process parameters were a pouring temperature of1520 ℃ and a pouring speed of 176 mm/s, under which inclusion defects were minimized. The finding can provide a reference for improving the casting process of the turbine nozzle, reducing inclusions and enhancing the performance of the castings.-
Key words:
- K439B alloy /
- turbine nozzle /
- numerical simulation /
- inclusions /
- ProCAST software
-

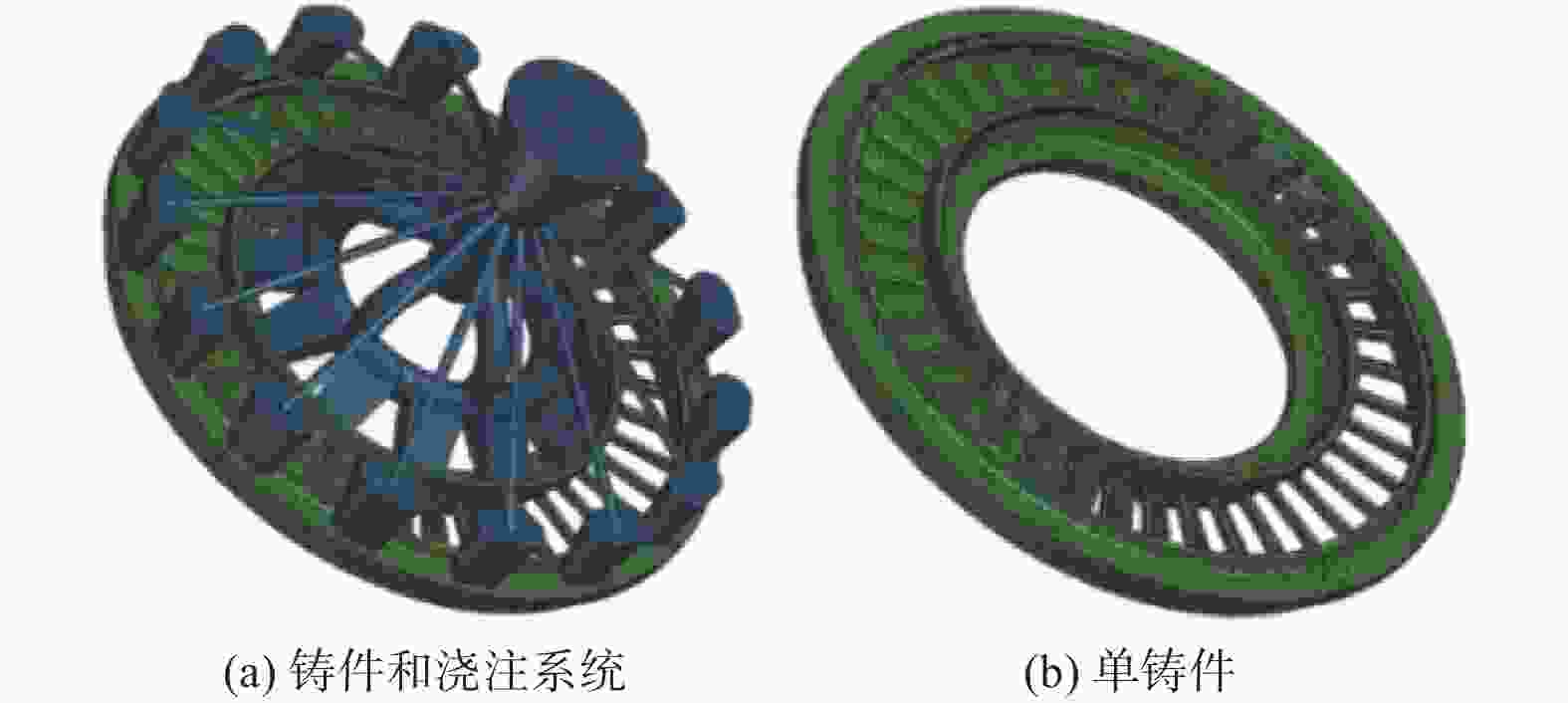

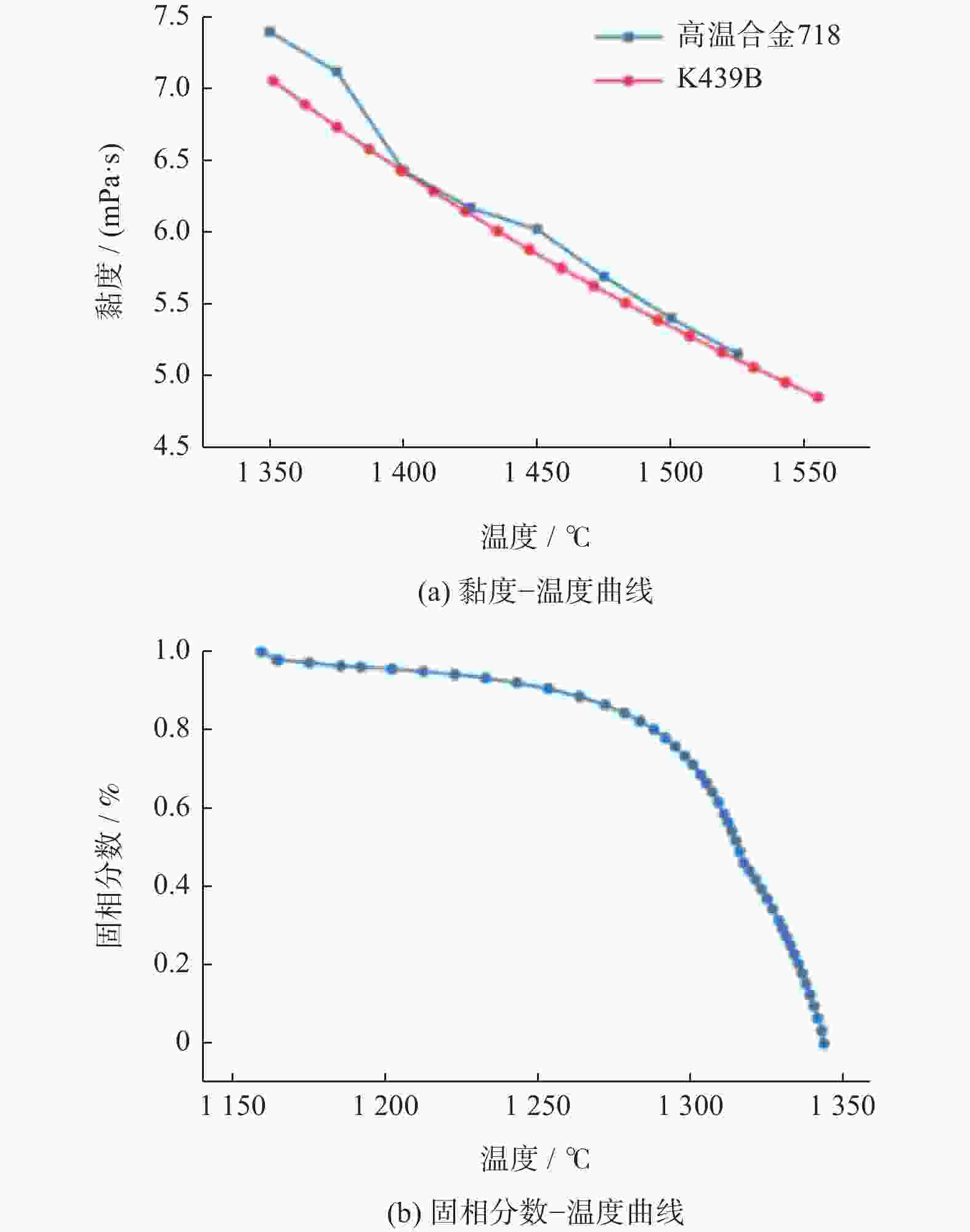

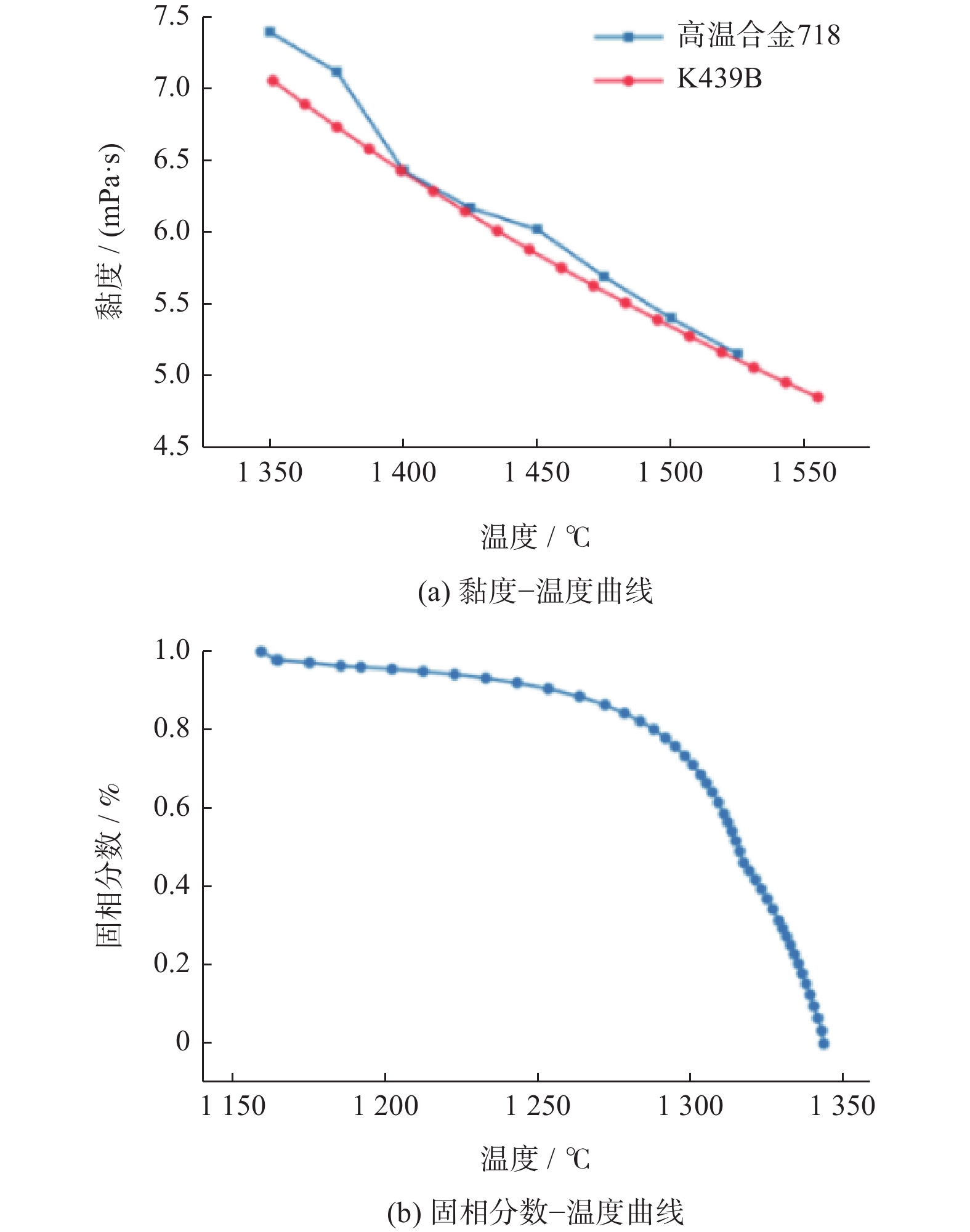

图 2 K439B黏度−温度曲线及固相分数−温度曲线
Figure 2. Viscosity-temperature curve and fraction solid-temperature curve of K439B

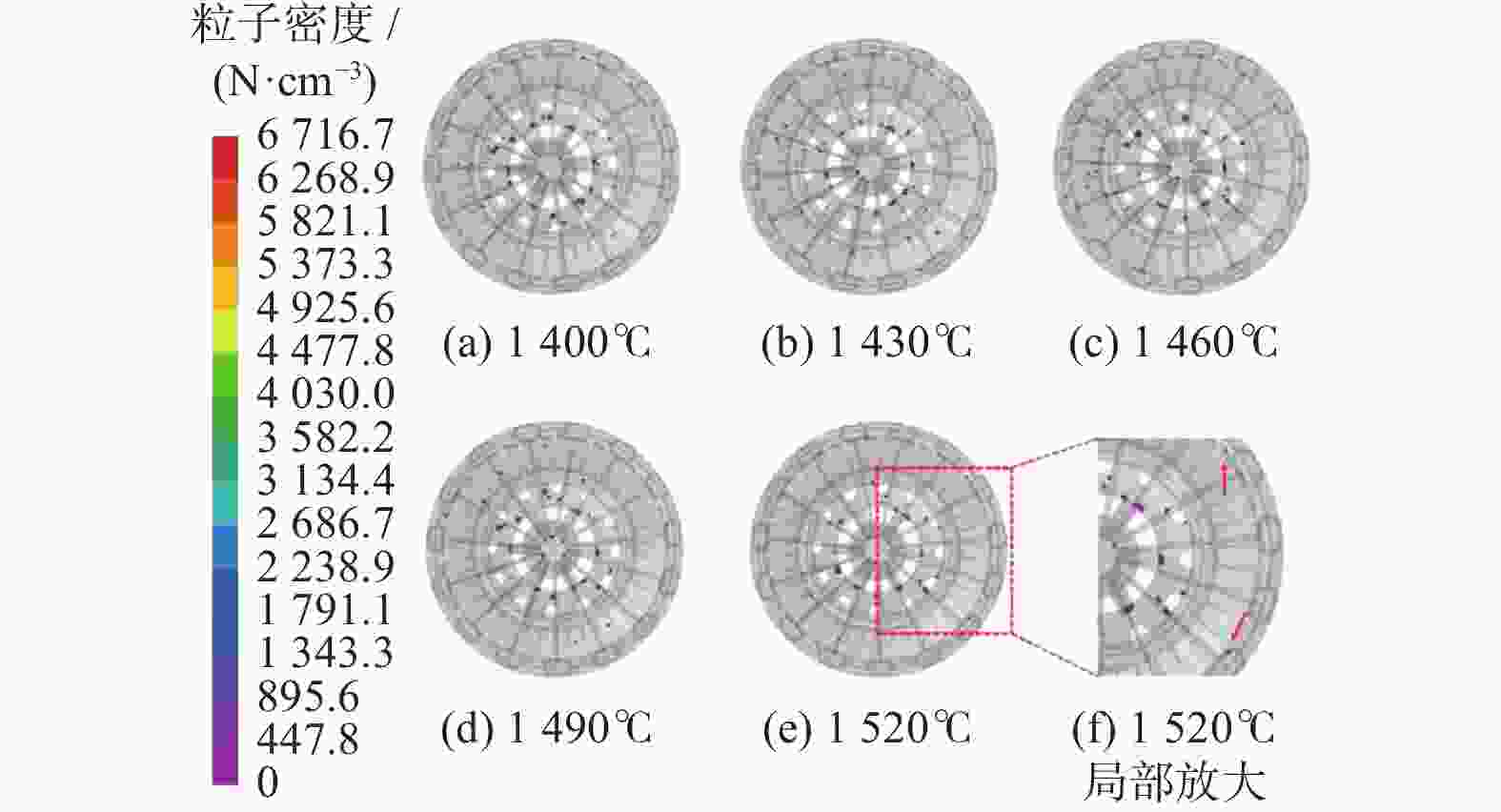

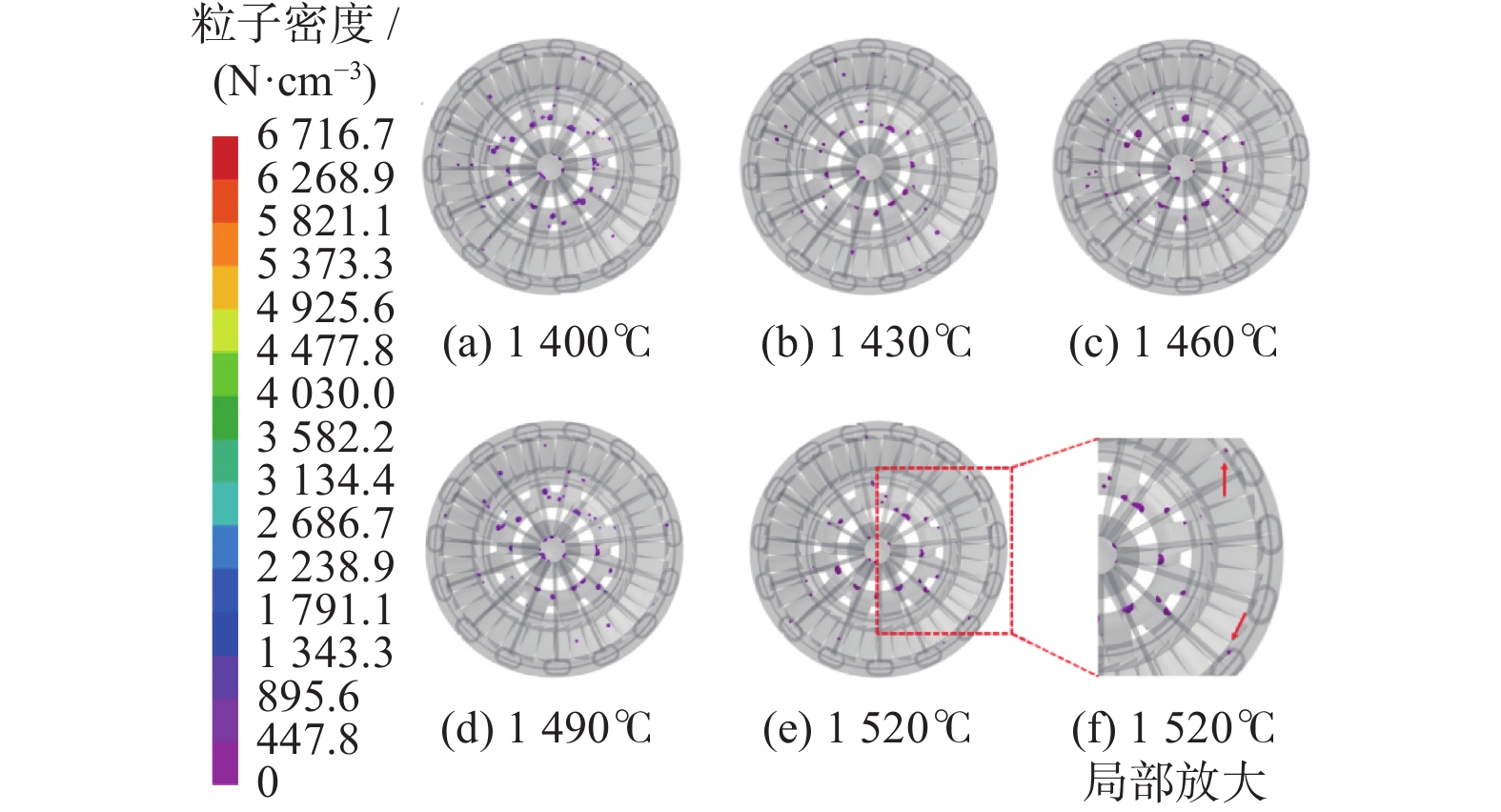

图 3 不同浇注温度产生夹杂对比图
Figure 3. Comparison diagram of inclusions produced at different pouring temperatures

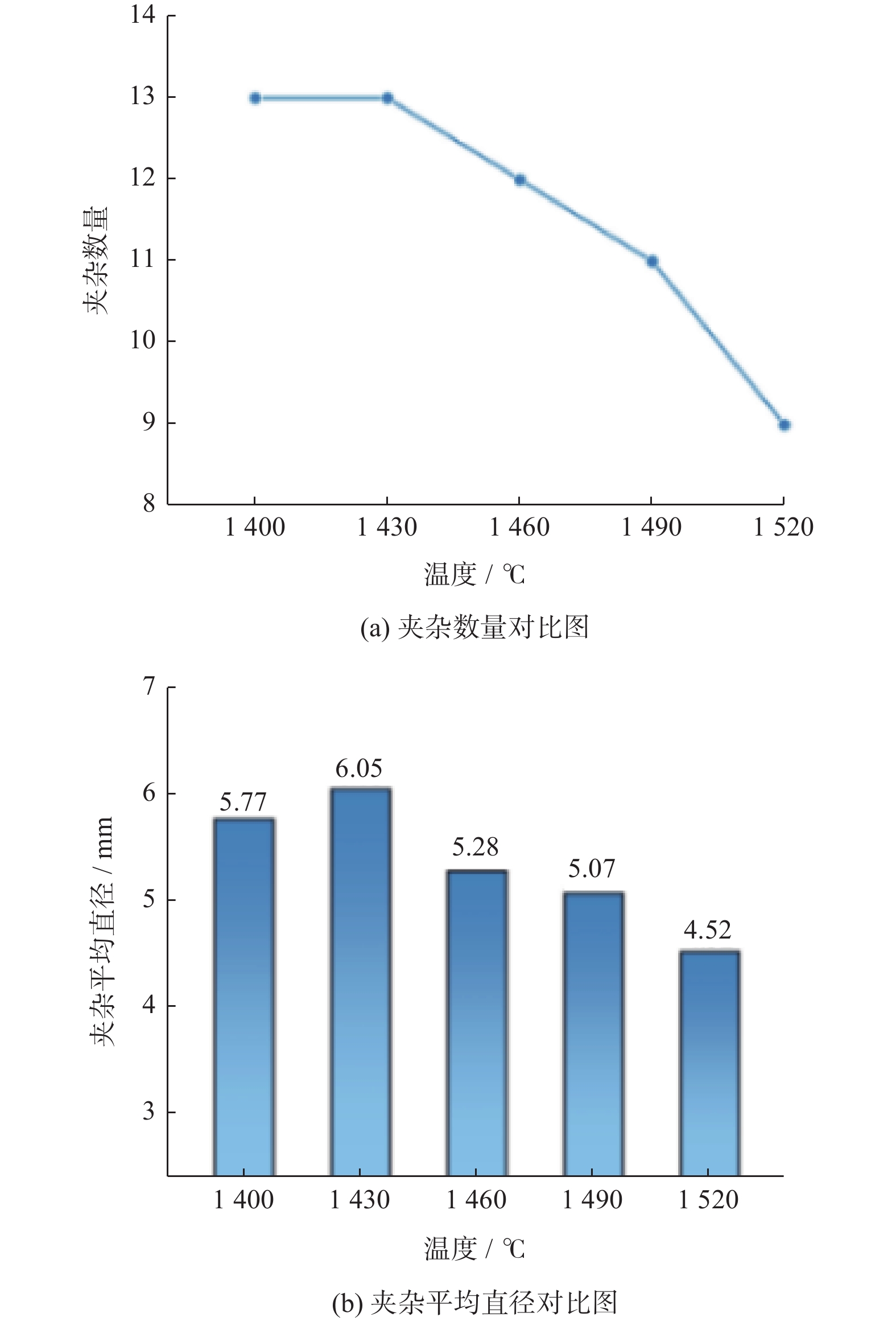

图 4 不同浇注温度下夹杂数量和平均直径对比图
Figure 4. Comparison of inclusions number and average diameter at different pouring temperatures

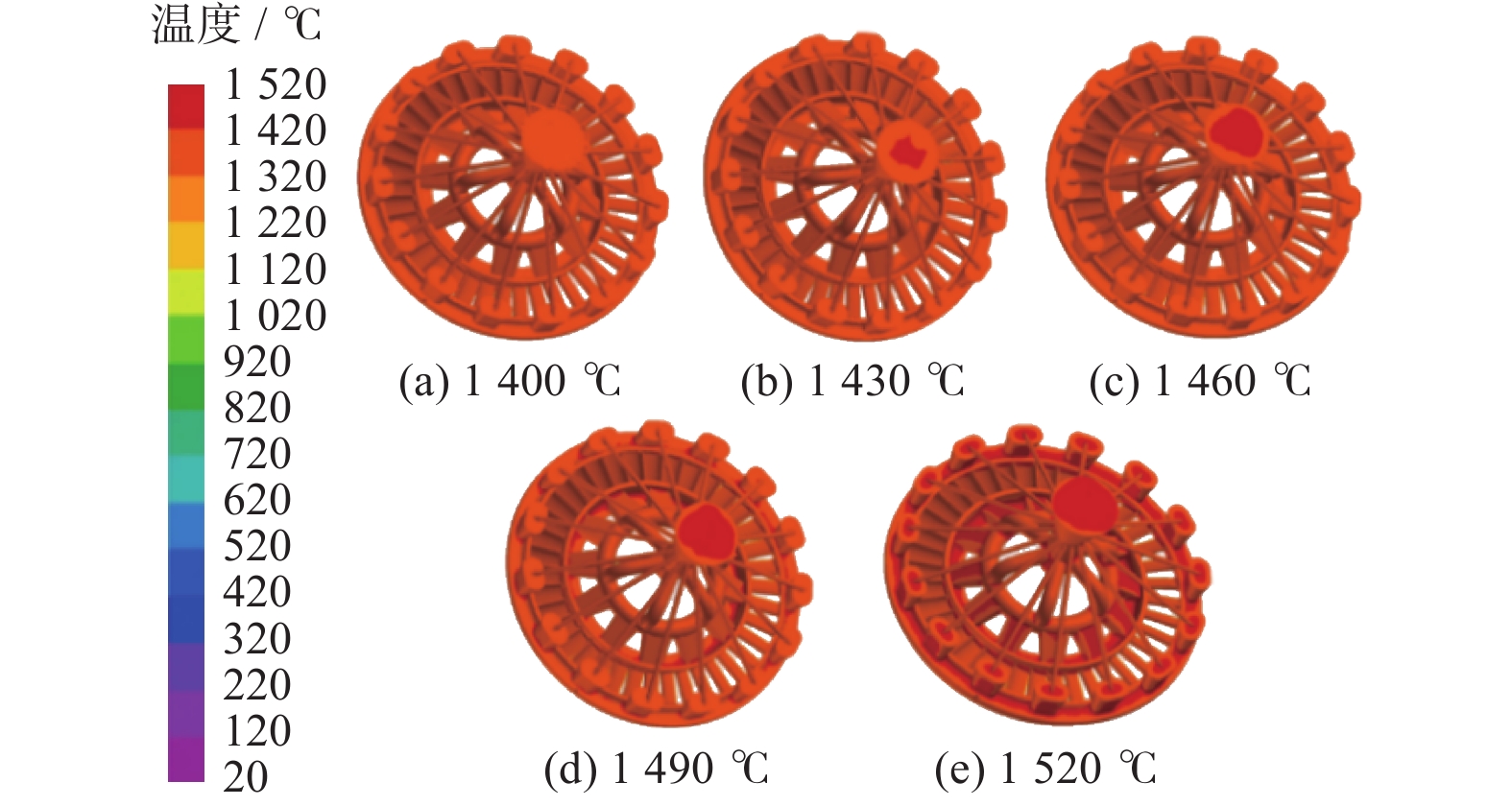

图 5 固相率10%时不同浇注温度的温度场对比图
Figure 5. Comparison of temperature field at different pouring temperatures with 10% solid phase ratio

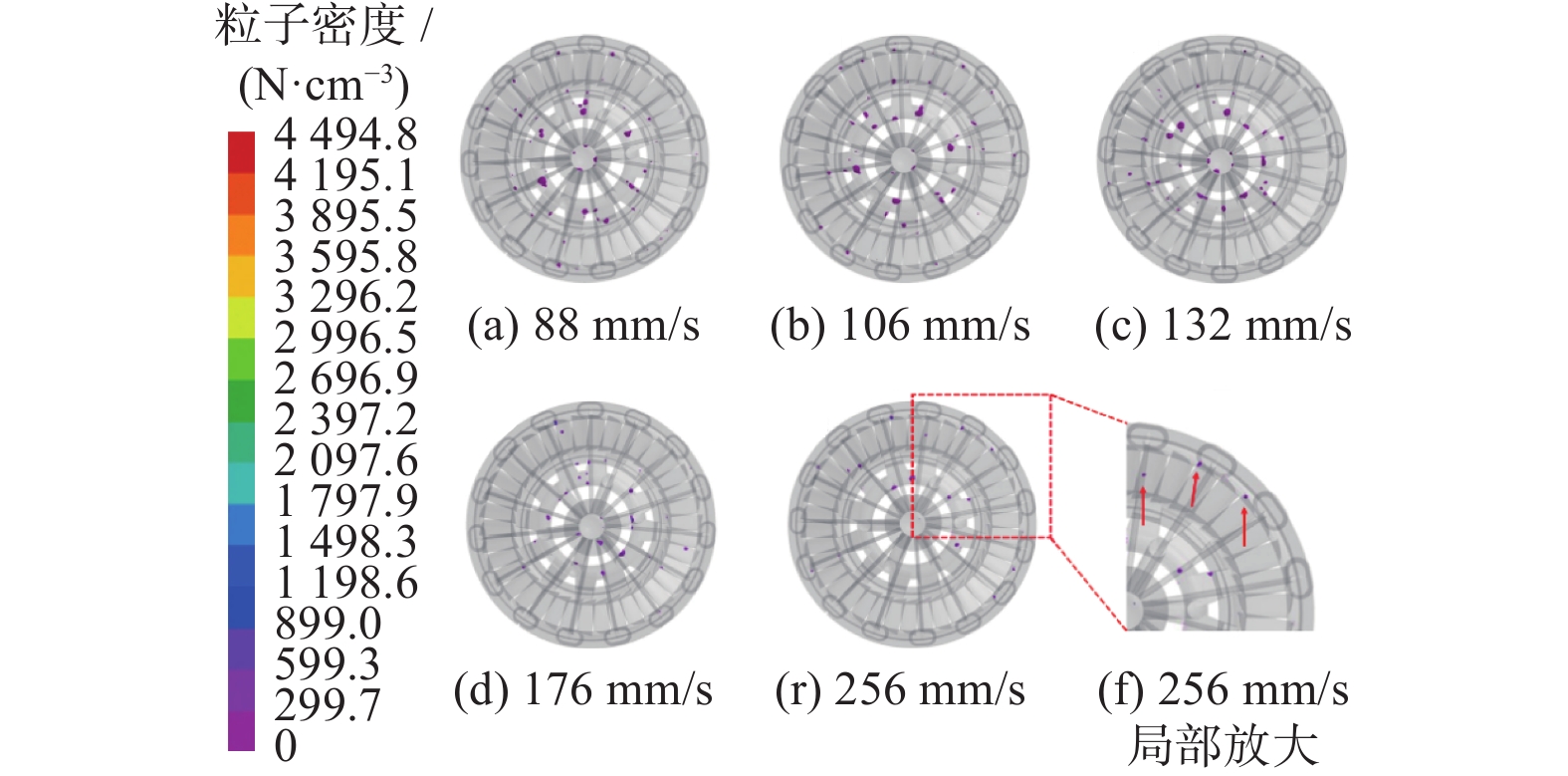

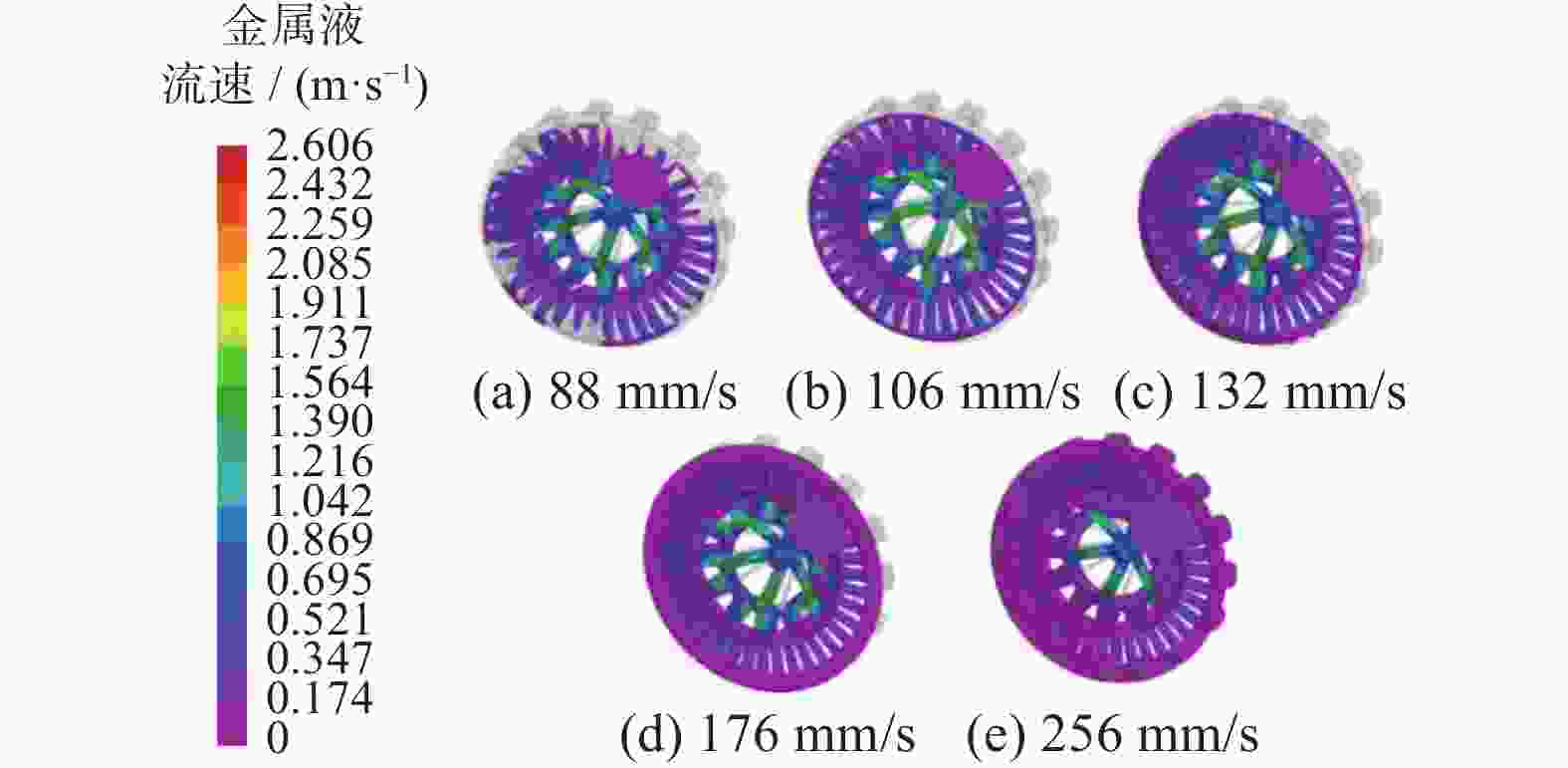

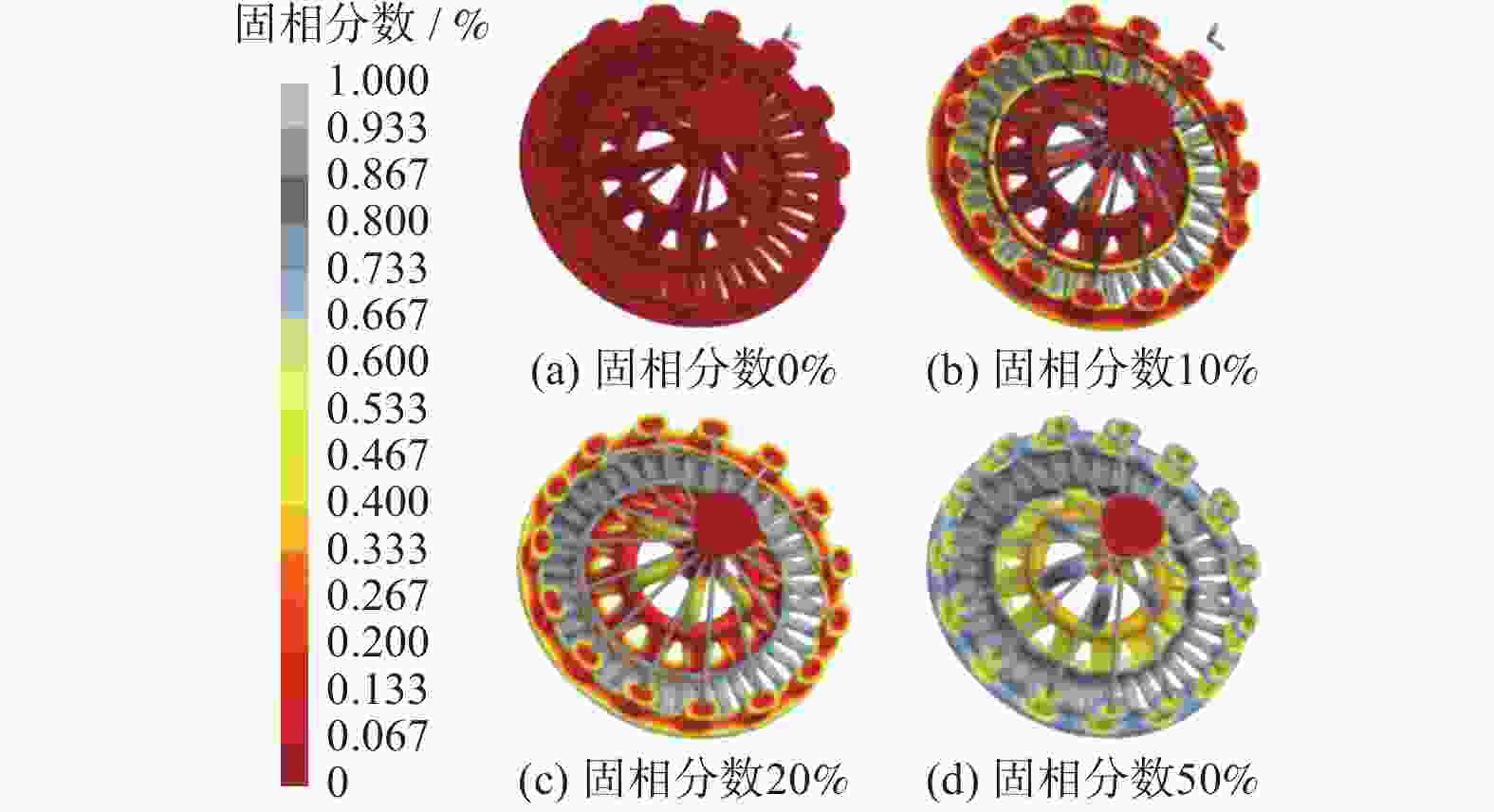

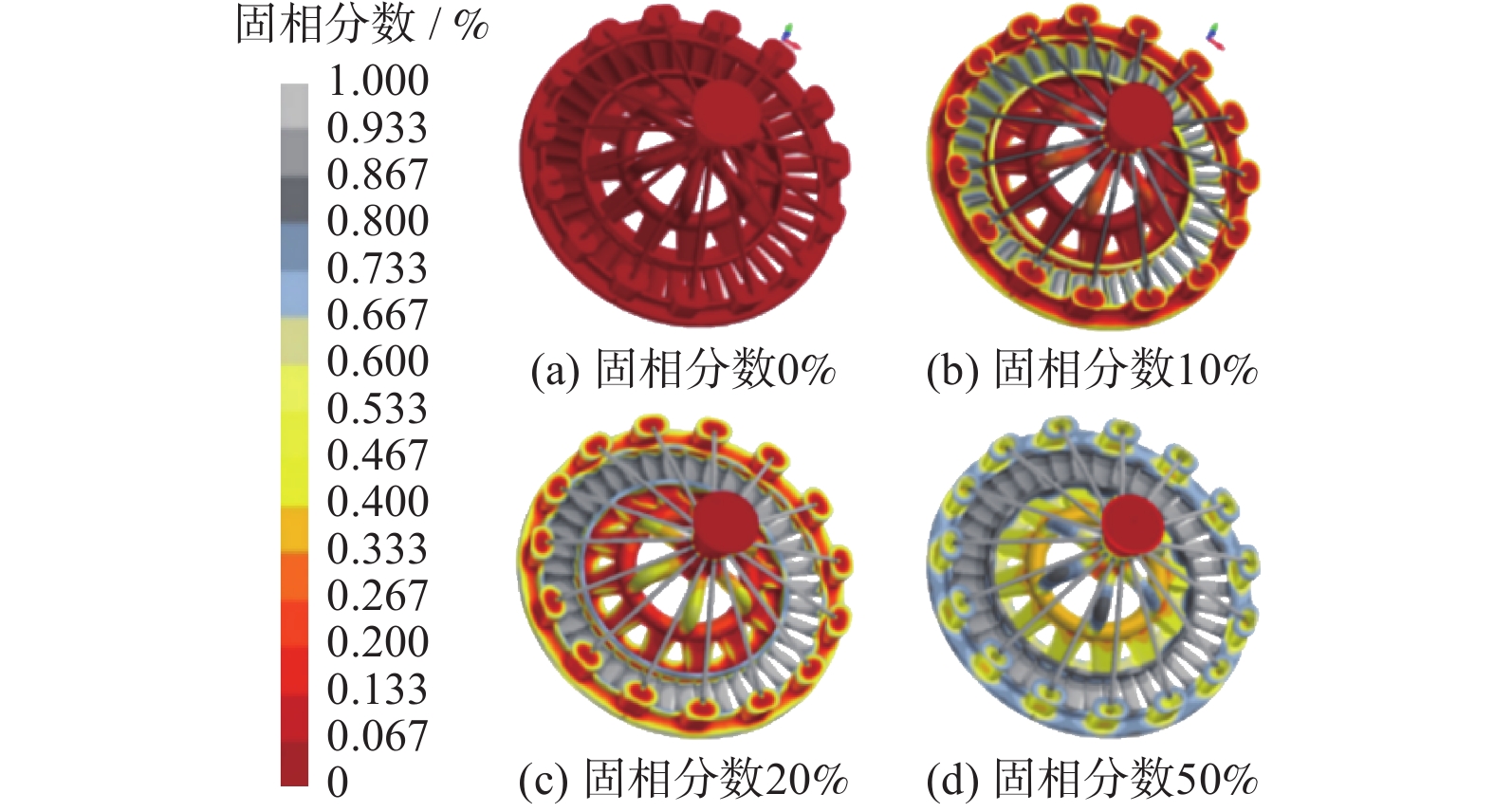

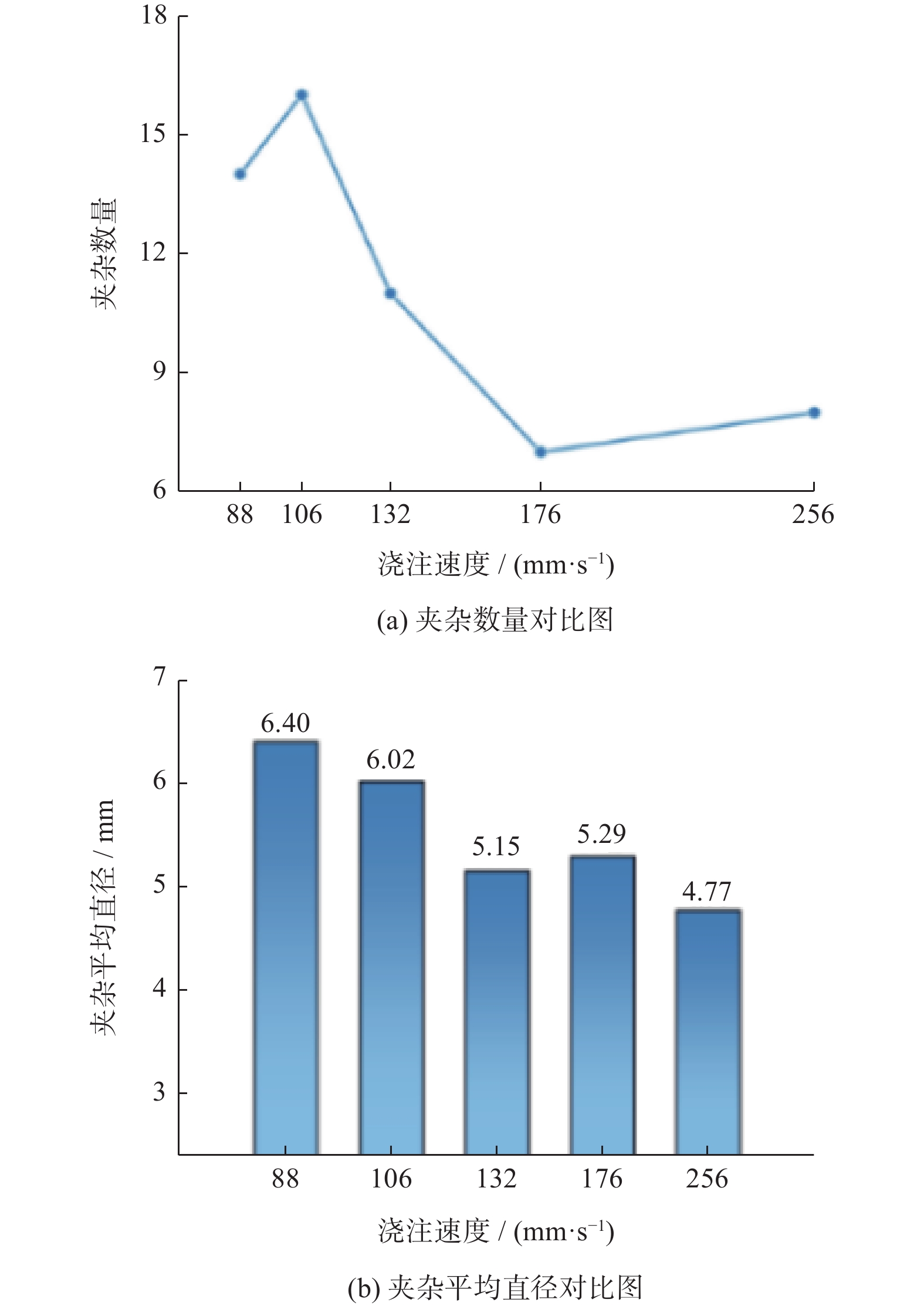

图 8 不同浇注速度下夹杂数量、平均直径对比图
Figure 8. Comparison of inclusions number and average diameter at different pouring speeds
-
[1] 陈晶阳, 任晓冬, 张明军, 等. 铸造镍基高温合金K439B的组织及典型性能[J] . 金属热处理, 2023, 48(1): 100 − 104. doi: 10.13251/j.issn.0254-6051.2023.01.017 [2] 张雷雷, 陈晶阳, 骞磊, 等. 浇注温度对K439B合金显微组织和力学性能的影响[J] . 材料热处理学报, 2019, 40(9): 57 − 63. doi: 10.13289/j.issn.1009-6264.2019-0140 [3] 孙乾. 钢材中非金属夹杂物的来源、分类、检验及其对母体性能影响的宏观概述[J] . 山西冶金, 2022, 45(9): 60 − 62. doi: 10.16525/j.cnki.cn14-1167/tf.2022.09.023 [4] 寻梦华. GH5605离心铸管夹杂物控制技术研究[D] . 北京: 钢铁研究总院, 2024. [5] 雷益宇, 叶文, 陈博文, 等. 基于数值模拟的涡轮导向器铸造工艺研究[J] . 模具工业, 2022, 48(12): 9 − 16. doi: 10.16787/j.cnki.1001-2168.dmi.2022.12.002 [6] 孟祥林, 刘锦辉. 基于PROCAST和SLS的燃烧室机匣铸造工艺优化[J] . 长春大学学报, 2023, 33(12): 1 − 7. doi: 10.3969/j.issn.1009-3907.2023.12.002 [7] 肖艮. 钛合金立式离心铸造过程夹杂物运动规律研究[D] . 武汉: 华中科技大学, 2020. [8] HARLOW F H, WELCH J E. Numerical calculation of time-dependent viscous incompressible flow of fluid with free surface[J] . Physics of Fluids, 1965, 8(12): 2182 − 2189. doi: 10.1063/1.1761178 [9] KUO J H, HWANG W S. Development of an interactive simulation system for die cavity filling and its application to the operation of a low-pressure casting process[J] . Modelling and Simulation in Materials Science and Engineering, 2000, 8(4): 583 − 602. doi: 10.1088/0965-0393/8/4/312 [10] 夏鹄翔, 段文科, 王琳, 等. 基于华铸CAE铝合金铸造充型氧化夹杂数值模拟[J] . 特种铸造及有色合金, 2018, 38(9): 956 − 959. doi: 10.15980/j.tzzz.2018.09.008 [11] 吴朝阳, 谢占山. 基于数值模拟的飞轮铸造过程温度场特征与缺陷预测研究[J] . 热加工工艺, 2025, 54(17): 190 − 194, 200. doi: 10.14158/j.cnki.1001-3814.20223607 [12] OVERFELT R A, MATLOCK C A, WELLS M E. Viscosity of superalloy 718 by the oscillating vessel technique[J] . Metallurgical and Materials Transactions B, 1996, 27(4): 698 − 701. doi: 10.1007/BF02915672 [13] 马岚波. 镍基高温合金真空低压铸造工艺基础研究[D] . 北京: 机械科学研究总院, 2021. [14] 寻梦华, 骆合力, 李尚平, 等. L605离心铸管凝固组织数值模拟及试制研究[J] . 特种铸造及有色合金, 2023, 43(6): 800 − 804. doi: 10.15980/j.tzzz.2023.06.013 [15] 隋大山, 麻晋源, 许圆, 等. 镍基高温合金反重力铸造压力曲线设计与验证[J] . 航空材料学报, 2024, 44(2): 143 − 150. doi: 10.11868/j.issn.1005-5053.2021.000190 [16] LIANG X C, WANG L, LIU Z F, et al. Thermal, flow and inclusions analysis of clogging mechanism in continuous casting process[J] . Case Studies in Thermal Engineering, 2025, 65: 105602. doi: 10.1016/j.csite.2024.105602 -
